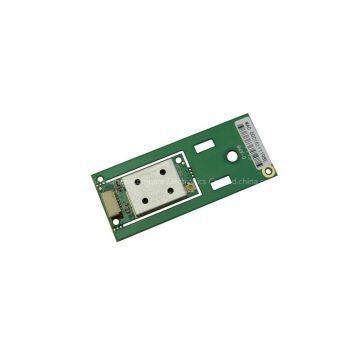

1T1R 150Mbps Wireless Ralink Rt3070 Wifi Module
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wireless WIFI Audio Receiver Module Qualcomm AR9331
-
Wireless WIFI Music Receiver 2T2R Module MTK MT7620A
-
64mb Flash Openwrt Atheros Ar9331 Wifi Module
-
Long Range IOT Wireless Wifi Module Atheros Ar9331
-
150Mbps 3.3V UART QCA4004 Wifi Module,sb Wifi Cctv Board Camera Module
-
Mt7620 Openwrt Wifi Router Module,wifi Module in Bluetooth Speaker
Product Details
| Brand Name | no | Place of Origin | China | |
| Model Number | MTK RT3070 |
Product Description
Product Name led wifi bulb
Model CP315B-1.2
Chip MTK RT3070
Port USB 1.1/USB2.0
Standards IEEE 802.11 b/g/n
Frequency Range 2.4~2.4835GHz
Channel 1-14(optional USA Norm, EN, Japanese Norm)
Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,802.1x
Modulation Type 802.11 g/n: OFDM
802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
Transmission Rate 802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps
802.11n: Max 150Mbps
Receive Sensitivity 130M: -65dBm@10% PER;
108M:-65dBm@10% PER;
54M:-65dBm@10% PER;
11M:-87dBm@8%PER;
6M:-90dBm@10% PER;
1M:-90dBm@8% PER
RF Rate <20dBm(Maximum)
Antenna Gain Need external antenna
Spread-Spectrum Technique DSSS(direct sequence spread spectrum)
Working Voltage DC 5V
Dimension 25mm*60mm*2.5mm
Working Environment Working Temperature: -20℃ to 45℃
Storage Temperature: -40℃ to 70℃
operating humidity:10% to 90%RH noncondensing
Storage Humidity: 5% to 90%RH noncondensing
Supported OS Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS
