Mini USB Wifi+Bluetooth Module,RTL8723AS Wifi Module

mini USB wifi+Bluetooth module,RTL8723AS wifi module

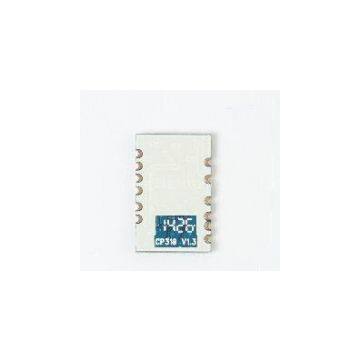

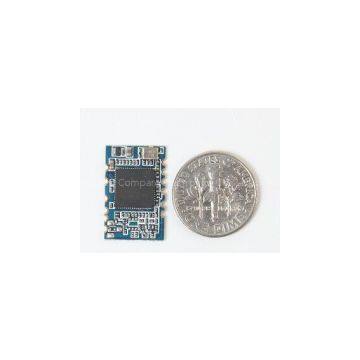

CP319V1.3 is a network card of low power consumption with WiFi and bluetooth, Compatible with Bluetooth V2.1+EDR /Bluetooth3.0/3.0+HS, Support IEEE802.11B/G/N standard, can connect with other devices which conform to this standard. Support the latest 64/128 digits WEP encryption and WPA-PSK/WPA2-PSK,WPA/WPA2 security mechanism. Can adapt to different work environment, and make the tablet/MID/webcam/STB/GPS/e-book/Hard disk player/internet radio/PSP connect with the wireless network conveniently.
Product Features
Contain the function of WiFi and bluetooth, use USB port, Very suitable for embedded devices.
Low power consumption, static current is 120mA, the peak current is 190mA.
Specifications of WiFi:
Model
CP319v1.3
Standards
IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK
Port
USB 1.1/USB2.0
Frequency Range
2.4~2.4835GHz
Channel
1-14
Modulation Type
802.11 g/n: OFDM
802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
Transmission Rate
802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps
802011n: Max 150Mbps
Receive Sensitivity
130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER
Transmission Distance
Indoor up to 30m,outdoor up to 80m(Base on the environment)
RF Rate
16dBm(Maximum)
Antenna Gain
Need external antenna
Spread-Spectrum Technique
DSSS(direct sequence spread spectrum)
Working Voltage
DC 3.3V ±0.2V
Dimension
19.3mm*12.4mm*2mm
Working Environment
Working Temperature: -20℃ to 45℃
Storage Temperature: -40℃ to 70℃
operating humidity:10% to 90%RH noncondensing
Storage Humidity: 5% to 90%RH noncondensing
Supported OS
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS
Chip
Realtek RTL8723AS-VAU

Specification of Bluetooth:
interface type
USB 1.1/USB2.0(2G/3G calling need connect PCM port)
Bluetooth transmission protocol
Bluetooth V2.1+EDR /Bluetooth3.0/3.0+HS
frequency range
2.402GHz - 2.480GHz
working channel
0-78
Modulation Type
GFSK,DPSK
transmission distance
Indoor up to 10m,outdoor up to 20m(Base on the environment)
RF Rate
9dBm(Maximum)
antenna gain
Need external antenna(can share with WiFi antenna)
spread-spectrum technique
frequency hopping
working voltage
DC 3.3V ±0.2V
Working environment
Working Temperature: -20℃ to 45℃
Storage Temperature: -40℃ to 70℃
operating humidity:10% to 90%RH noncondensing
Storage Humidity: 5% to 90%RH noncondensing
Supported OS
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS
Chip
Realtek RTL8723AS-VAU
