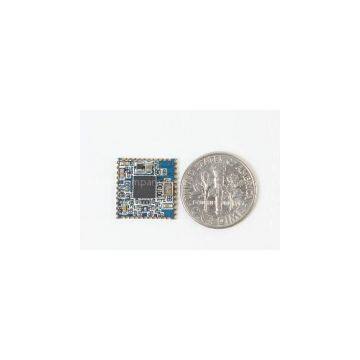

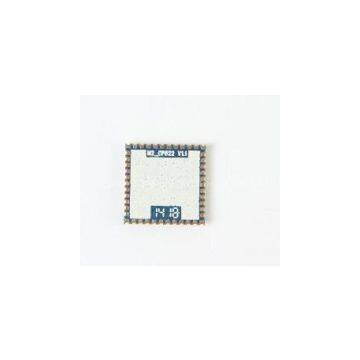

Mini SDIO Wifi+Bluetooth Module,Realtek Bluetooth 4.0 WIFI Module

CP822 is a network card of low power consumption with WiFi and bluetooth, Support the latest technology of bluetooth 4.0 BLE, Compatible with Bluetooth V2.1+EDR /Bluetooth3.0/3.0+HS/4.0, Support IEEE802.11B/G/N standard, can connect with other devices which conform to this standard. Support the latest 64/128 digits WEP encryption and WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism. Can adapt to different work environment, and make the tablet/MID/webcam/STB/GPS/e-book/Hard disk player/internet radio/PSP connect with the wireless network conveniently.

Specifications of WiFi:

Model:CP822

Standards:IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK

Interface Port:SDIO

Frequency Range:2.4~2.4835GHz1-14

Channel:1-14

Modulation Type:

802.11 g/n: OFDM

802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)

Transmission Rate:

802.11b: 11,5.5,2,1 Mbps

802.11g: 54,48,36,24,18,12,9,6 Mbps

802011n: Max 150Mbps

Receive Sensitivity:

130M:-65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER

Transmission Distance:Indoor up to 30m,outdoor up to 80m(Base on the environment)

RF Rate:16dBm(Maximum)

Antenna Gain:Need external antenna

Spread-Spectrum Technique:DSSS(direct sequence spread spectrum)

Working Voltage:VCC 3.3V ±0.2V

Dimension:14mm*14mm*2mm

Working Temperature: -20℃ to 45℃

Storage Temperature: -40℃ to 70℃

operating humidity:10% to 90%RH noncondensing

Storage Humidity: 5% to 90%RH noncondensing

Working Environment

Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS

Supported OS

Realtek RTL8723AS-VAU

Specification of Bluetooth:

Model:CP822

Interface type:SDIO(2G/3G calling need connect PCM port)

Bluetooth transmission protocol:

BLE/Bluetooth V2.1+EDR /Bluetooth3.0/3.0+HS

Frequency range:2.402GHz - 2.480GHz

working channel:0-78

Modulation Type:GFSK,DPSK

Transmission distance:

Indoor up to 10m,outdoor up to 20m(Base on the environment)

RF Rate:9dBm(Maximum)

Antenna gain:

Need external antenna(can share with WiFi antenna)

Spread-spectrum technique:frequency hopping

working voltage:DC 3.3V ±0.2V

Working environment:

Working Temperature: -20℃ to 45℃

Storage Temperature: -40℃ to 70℃

operating humidity:10% to 90%RH noncondensing

Storage Humidity: 5% to 90%RH noncondensing

Supported OS

Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS

Chip:

Realtek RTL8723BS
