250Atom cutting machine/travelling head presses
- 30 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
atom traveling head leather press cutting
-
Like Atom hydraulic travelling head cutting press machine
-
used machine for leather goods, travelling head cutting machine atom SP588
-
ABC-L/R Automatic Rolled Materials Moving Head Continuous Operation Cutting Machine
-
ABC-CN-03 Full Automatic Flat Plate Movable Cutting Machine
-
ABC-CN-09 Tie Cutting Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | GSB | |
| Model Number | GSB-ATH | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

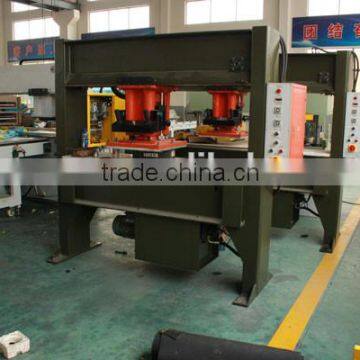

Atom hydraulic travelling head cutting press
CHARAVTERISTICS:
1. Gantry frame structure is adopted, with high intensity and without deformation.
2. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
4. The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.
5. Differential oil way is adopted to allow rapid and convenient cutting.
Model | ATH-250 | ATH-250B | ATH-250C | ATH-500 | ATH-500 B | ATH-500C |
Cutting Force | 25 tons | 25 tons | 50 tons | 50 tons | 50 tons | 50 tons |
Working Table(mm) | 1600*500 | 1800*500 | 2000*500 | 1600*500 | 1800*500 | 2000*500 |
Stroke(mm) | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm |
Travel Head Size(mm) | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 |
Motor Power | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 4.0kw | 4.0kw |
Approx. Overall Dimensions (WxDxH) | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 |
G.W | 1800 kg | 2100 kg | 3000 kg | 3000 kg | 3800 kg | 5000 kg |
