CUTTING MACHINE

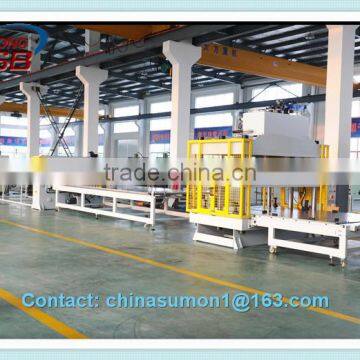

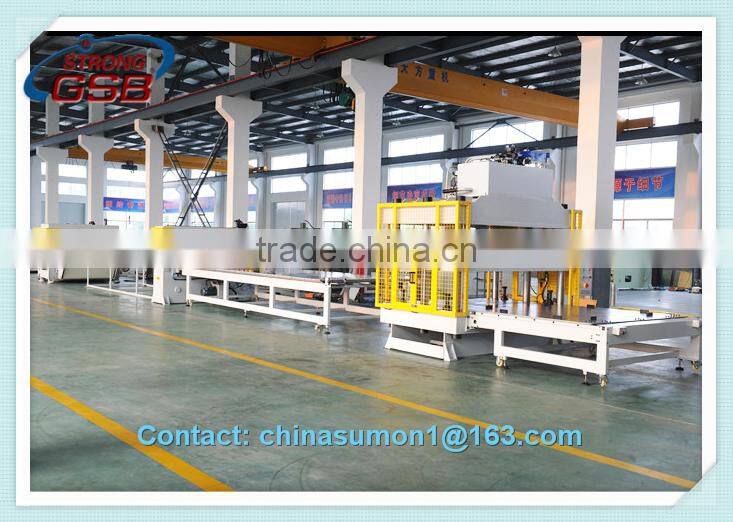

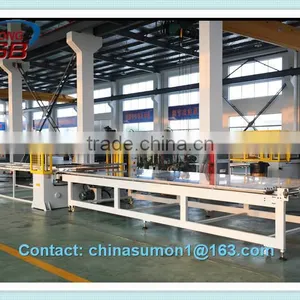

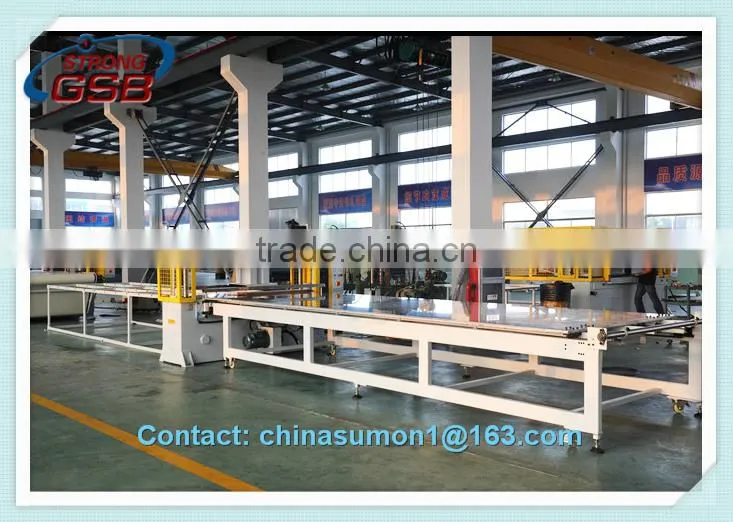

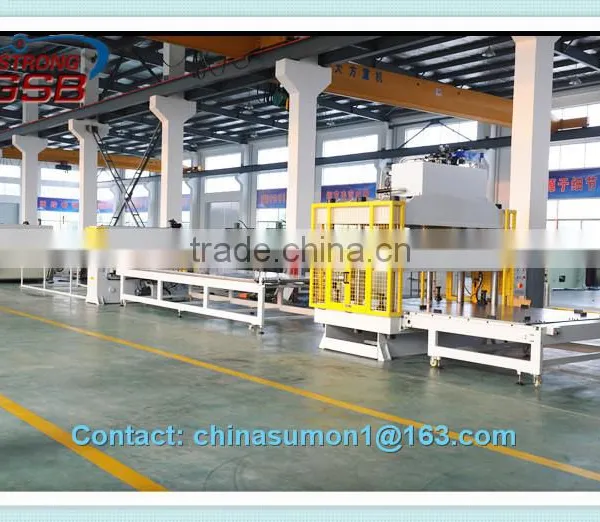

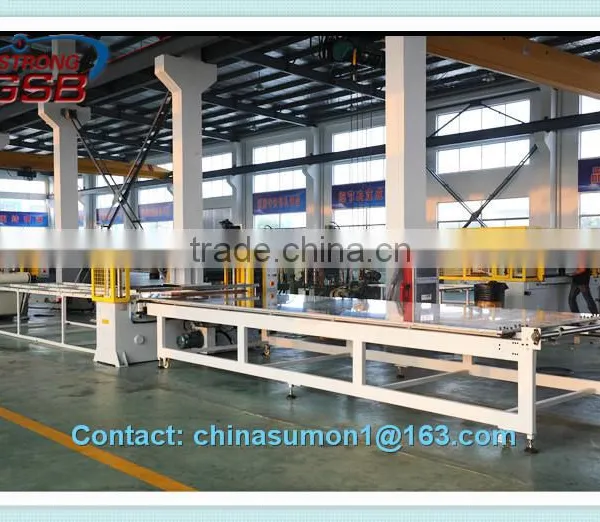

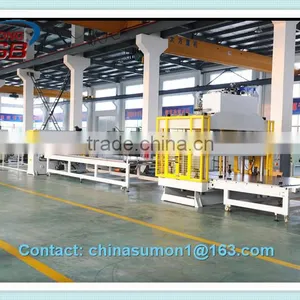

ABC-CN-03 Full Automatic Flat Plate Movable Cutting Machine
Machine Characteristics
1.The double cylinders and the precise four-column double-link automatic balancing mechanism ensure that the cutting depth precision at each cutting position is 0.02mm.
2.When it is pressed downwards, the cutting head will automatically slow down before it is 10mm away from the cutter so that there is no dimension error between the uppermost layer and lowermost layer when cutting materials of multiple layers.
3.The accurate cutting balance can greatly reduce the wearing of die cutter and cutting board. The effect is better during the cutting of the edges and the wearing of the cutting board can be reduced.
4.It adopts the human-machine interface, PLC programmable logic control and full automatic feeding mechanism.
5.Servo motor control feeding, equipped with cylinder clamping device. Equipped with six floors feeding frame, it can cut the multiple products at the same time automatically.
6.The cutting table could move laterally, Servo control accuracy is 0.1 mm, it can work with the dislocation, minimize the loss of raw materials.
7.The special setting mechanism makes the travel adjustment simple and accurate in conjunction with the die cutter and cutting depth.
8.The central automatic lubricating system ensures machine precision and prolongs service life of the machine.
9.By magnetic sucker device to absorb knife mold,it’s convenient to install.
We can build to suit your production requirements, and welcome your request for a machine specific to you.
We can build to suit your production requirements, and welcome your request for a machine specific to you
