CUTTING MACHINE

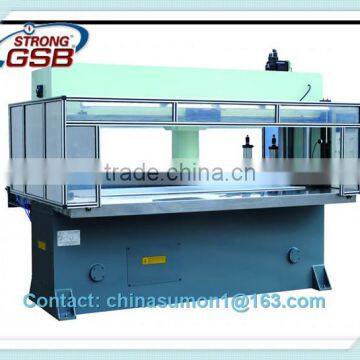

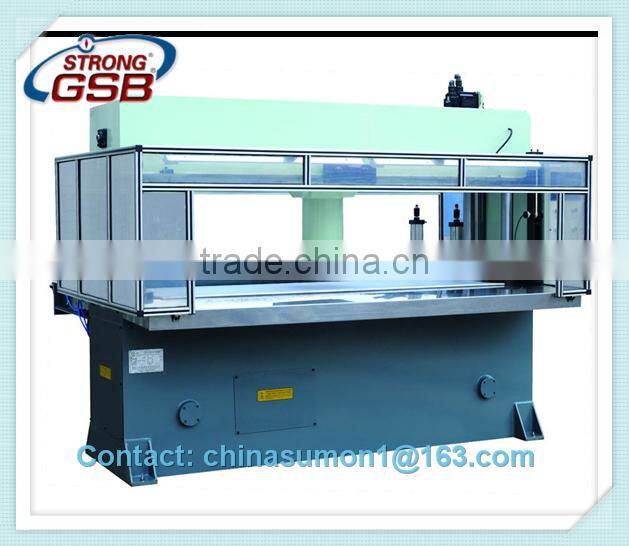

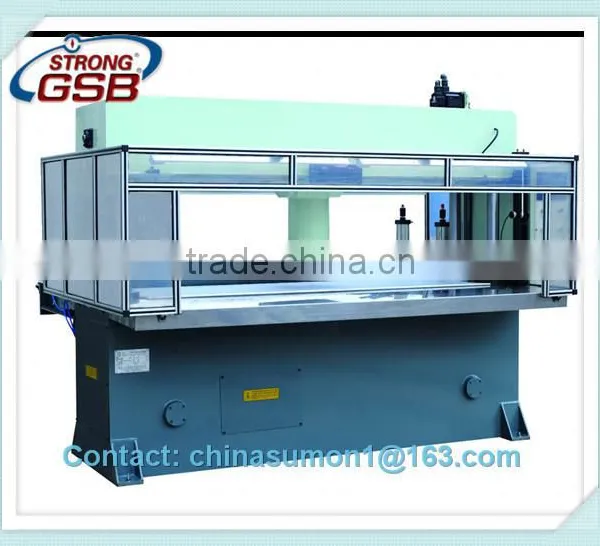

ABC-L/R Automatic Rolled Materials Moving Head Continuous Operation Cutting Machine
Application Fields
The machine is suitable for continuously cutting large batch od regular (or of the same specification) nonmetal rolled materials by forming cutter.
From the smallest 30 Tons to the largest 60 Tons or more on request, they are especially suitable for such industries as sports articles (balls), sand paper, medicine and etc.
Machine Characteristics
1. The mechanism od double oil cylinder, gantry type guiding and precise four-column automatic balancing connection rod can guarantee the same cutting depth of each cutting position.
2. The precise lead screw driving unit is adopted for accurate movement and positioning and stable operation.
3. The rubber roller pneumatic material pressing or manual material pressing is adopted. The computer can automatically control the transverse movement distance of cutting head and the feeding distance of pressing roller.
4. The machine has special cutting modes such as automatic stagger and stagger blade reducing, distance of press roller.
5. The machine has two working ways such as semi-automatic and full-automatic operation. The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.
Technical specification
Model No. | ABC-L/R-300/400/500/600 |
Max cutting force | 300/400/500/600KN |
Cutting speed | 0.12m/s |
Travel adjustment range | 0-120mm |
Range between the working tables | 30-185mm |
Transverse movement speed of cutting head | 50-250mm/s |
Feeding speed | 20-90mm/s |
Size of the upper pressing board | D300mm,D400mm,D650mm |
Size of lower worktable | 1600x500mm |
Main motor power | 2.2KW |
Overall dimension | According to the machine configuration |
Total weight | According to the machine configuration |
We can build to suit your production requirements, and welcome your request for a machine specific to you

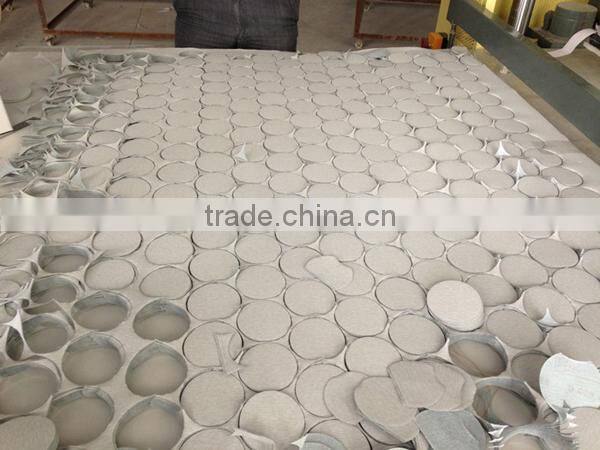

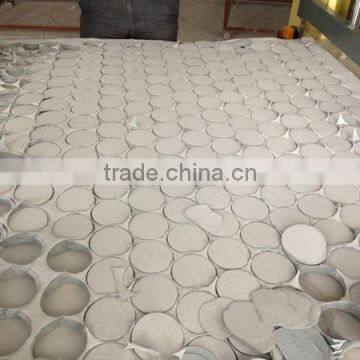

PRODUCT SCENE:
