Specifications
1.Paper,fiberglass,enamel insulated rectangular copper wire2.Standard:IEC,NEMA etc
3.Size(mm):a:0.8-5.6,b:2.0-16mm
insulated rectangular copper wire

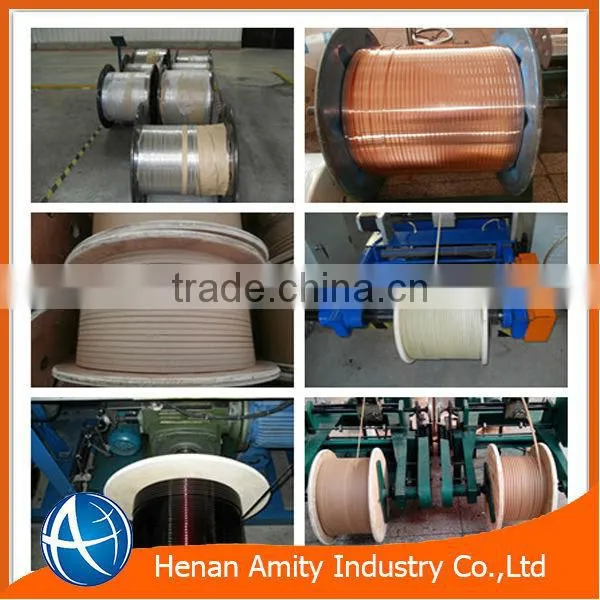

We supply a=0.8-5.6mm,b=2.0-16mm enameled,paper covered,fiberglass insulated rectangular copper wire with high output and good price.
Enamel insulated rectangular copper wire
| Parameter | SMCB-120 | SMB-130 | SMGB-155 | SMYB-180 | SMYB-200 | SMCYB-240 |
| Standars | MW 18 IEC60317-18 GB/T7095.2 | IEC60317-16 GB/T7095.7 | IEC60317-16 GB/T7095.3 | IEC60317-28 GB/T7095.4 | MW 36 IEC60317-29 BS6811 GB/T7095.6 |
MW 20 IEC60317-47 GB/T7095.5 |
| Thermal Class | 120°C | 130°C | 155°C | 180°C | 200°C | 240°C |
| Enamel Base Coat | Polyester-formal | Polyester | Modified Polyester | Polyester-Imide | Polyester-Imide | Polyimide |
| Enamel Top Coat | Polyester-Imide | |||||
| Range of insulation thickness | IEC60317-0-2 G1,0.06-0.11mm G2/0.12-0.17mm | |||||
| Heat shock | 155°C | 155°C | 175°C | 200°C | 220°C | 300°C |
| Performance | 1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property |
1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance |
1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon |
1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation |
| Application | 1.Dry and oil-immersed transformer 2.Electrical equipment |
1.Dry and oil-immersed transformer 2.Electrical equipment |
1.Dry and oil-immersed transformer 2.Electrical equipment |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil |
1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability |
2.Paper insulated rectangular copper/aluminum wire
Paper insulated rectangular copper/aluminum wire is a kind of winding wire,first, the ectrical round aluminum rod is extruded or drawed into high quality aluminium conductor,then it is wrapped by the telephone paper.They are mainly used in Oil-immersed transformers, reactors and other electrical equipments.
Description |
Size |
Standard |
Features&Application |
Paper covered aluminum flat wire |
a:1.0mm-5.0mm b:3.0mm-16mm |
IEC60317-27 GB/T7673.3-2008 GB/T 5584-2009 |
mainly used in Oil-immersed transformers, reactors and other electrical equipments. |
3.Fiberglass insulated rectangular copper/aluminum wire
Fiberglass insulated rectangular copper/aluminum wire is a kind of winding wire,first, the ectrical round aluminum rod is extruded or drawed into high quality aluminium conductor,then it is wrapped by the fiberglass,then it is insulated by the varnish and dried.They are mainly used in dry-type transformers,motors and generators coil.
Description |
Size |
Standard |
Features&Application |
Fiberglass covered aluminum flat wire |
a:1.0mm-5.0mm b:3.0mm-16mm |
IEC60317-0-04 GB/T7672.1-2008 GB/T 5584-2009 |
This product is suitable for the winding of large and medium motor, electrical equipment. It has excellent mechanical properties, overload capacity and good heat resistance. |
