Specifications
Enameled aluminum wire awg 19 wire1) Not solderable,Polyesterimide coated
2) Diameter: 0.13mm to 6.0 mm
3) IEC,NEMA etc.

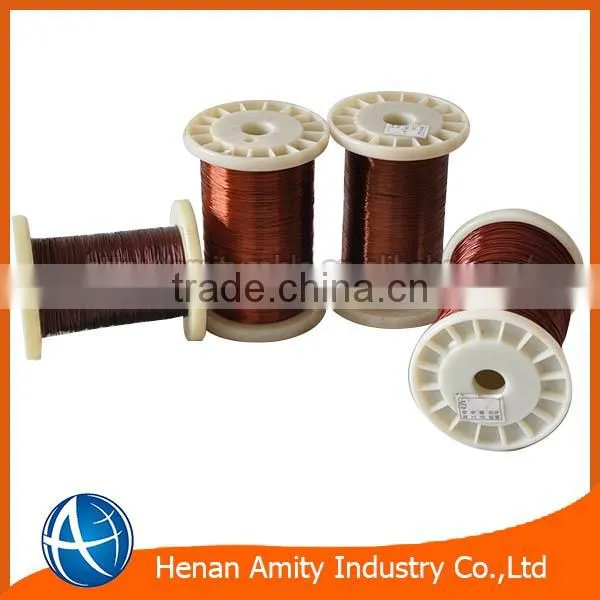

Enameled aluminum wire awg 19 wire
We can supply 130,155,180,200,220,240 degree non solderable enameled aluminum wire with high qulaity & competitive price.
Enamelled aluminum wire is a type of winding wire made by electric aluminum rod which drawn by dies with special size, then over coated with enamel repetitiously.
1.The advantages of Enamelled aluminum wire
1). Compared with the copper enameled wire, enameled aluminum wire is easier to winding, also there is a solid oxide film on the surface of enameled aluminum wire, which make it has a good insulating effect, a long life.
2). Due to the good insulating effect of aluminum film layer, it's heat-resistant temperature can be 20 degrees higher than the copper wire;
3). The greatest benefit of using aluminum is that it is 1 / 3 lighter than copper which significantly lower the production costs, second it can attach to the solids easily, and third it can also reduce the freight and transportation during the operation.
2. Standards
JISC,IEC,NEMA,GB or as client's demands.
3.Charactheristics
excellent propertities in heat shock and cut-through testing
4.Specifications
Standard |
IEC 60317-15 |
||||
Name and Specification |
Enameled aluminum wire-180 2.000/Oct 15th,2012 |
||||
No. |
Testing term |
Unit |
Standard specification |
Testing Result |
Judgment |
1 |
Appearance |
|
smooth and free from flaws,rusts,cracks |
ok |
ok |
|
2
|
Diameter |
mm |
2.000 |
2.010 |
ok |
Tolerance |
mm |
±0.020 |
+0.010 |
ok |
|
Film Thickness |
mm |
≥0.075 |
0.080 |
ok |
|
Max. Dia of |
mm |
≤2.112 |
2.100 |
ok |
|
3 |
Resistance |
Ω/m |
≤0.009149 |
0.009085 |
ok |
4 |
Elongation |
% |
≥15% |
21 |
ok |
5 |
Elasticity |
Degree |
≤5 |
4.2 |
ok |
6 |
Winding |
|
Crack free |
Crack free |
ok |
7 |
Heat Shock |
|
200°C crack free |
Crack free |
ok |
8 |
Cut-through |
|
240°C 2min |
pass |
ok |
9 |
Flexibility and Adhesion |
|
Crack free |
Crack free |
ok |
10 |
Electric Breakdown Voltage |
kv |
≥5 |
8.7, 10.2, 10.5 9.8, 11.3 |
ok |
11 |
Solderability |
|
Surface smooth crack free |
ok |
ok |
