Specifications
1.130,155,180,200 degree copper,aluminum,cca enameled wire for welding machine2.Dia.:0.03-6mm
3.UL,Rohs,ISO approved.

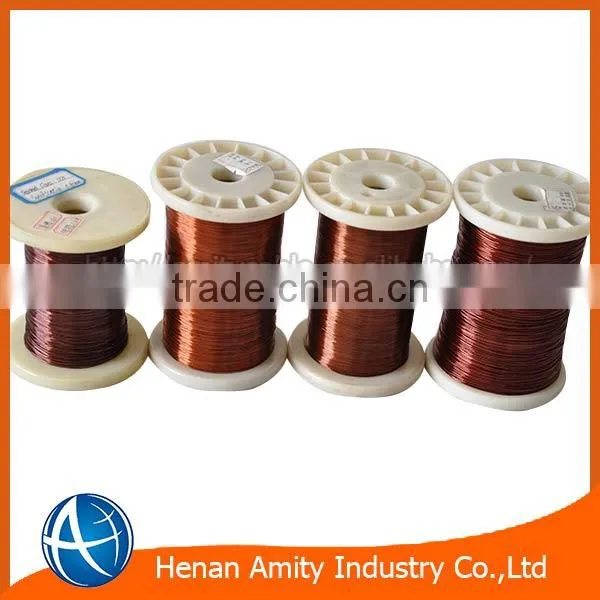

Enameled wire
We mainly supply 130,155,180&200 degree copper/aluminum/CCA enameled wire for welding machine with high qulaity and competitive price.
Size:
copper enameled wire :0.11-5.0mm /AWG5-AWG37/BWG7-BWG35/SWG6-SWG41
aluminum enameled wire :0.13-6.0mm/ AWG3-AWG36/BWG4-BWG37/SWG4-SWG38
copper clad aluminum enameled wire :0.12-2.5m
Flat enameled wire:Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm
1.Copper enameled wire
standard:
1) 130 degree polyester enameled wire:IEC60317-34
2) 155 degree polyurethane enameled wire:IEC60317-20:2000&MW 79-C
3) 180 degree polyester-imide enameled wire : IEC60317-8:2010& MW 30-C
4) 180 degree polyurethane enameled wire: IEC60317-51:2001& MW 82-C
5) 200 degree polyester-imide overcoated enameled wire IEC60317-13:2010& MW 35-C
2.Aluminum enameled wire
Standard:
1) 130 /155 degree polyester enameled wire: IEC60317-0-3
2) 180 degree modified enameled wire:IEC60317-15
3. CCA copper clad aluminum enameled wire
Solderable Polyurethane enameled CCA wire Class 130
Solderable Polyurethane enameled CCA wire Class 155
Solderable Polyurethane enameled CCA wire Class 180
Polyester enameled CCA wire class 130
Midified Polyester enameled CCA wire class 155
Polyester-imide enameled CCA wire class 180
Test Report of copper electric motor winding wire
Name |
Copper Enameled Wire |
|||
Type |
QZY-2/180/1EIW |
|||
Diameter |
AWG18 |
|||
Standard |
IEC60317-8-2010 |
|||
Date |
Nov 20th,2012 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
|
Conductor Diameter |
mm |
1.024±0.011 |
1.022 |
Thickness of insulation film |
mm |
>= 0.065 |
0.085 |
|
Overall Diameter |
mm |
<=1.121 |
1.107 |
|
Mechanical properties |
Elongation |
|
>=30 % |
38% |
spring-back angle |
|
<=41 |
39 |
|
Flexibility and adhesion |
winding test |
1D,no crack |
ok |
|
Jerk test |
No Crack, and No losing adhesion |
ok |
||
scratch resisting(Average) |
N |
11.6 |
13.88 |
|
scratch resisting(Min) |
N |
9.80 |
13.67 |
|
Thermal propeties |
heat shock |
N |
200°C,D=3.55mm,crack free |
ok |
cut-through resistance |
N |
300°C, 2Min no breakdown |
ok |
|
Chemical resistance |
Resistance to solvent |
H |
1H |
1H |
Electrical properties |
DC resistance at 20°C |
Ω/m |
0.02015-0.02139 |
0.02077 |
|
Breakdown Voltage /room temperature |
KV |
>=5.0 kV |
8.0,8.0,8.0,8.0,8.0 |
|
Enamel Film continuity |
|
<=0 /30m |
0 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
