Specifications
Round Shape Enameled Copper Clad Aluminum Wire:1.Round shape
2.Reduce the cost
3.Competitive price

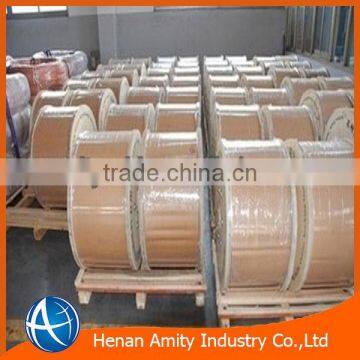

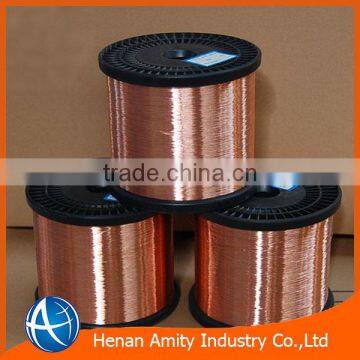

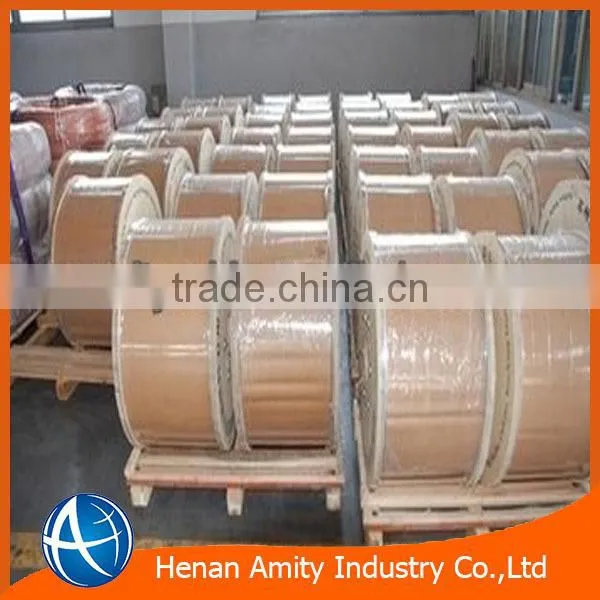

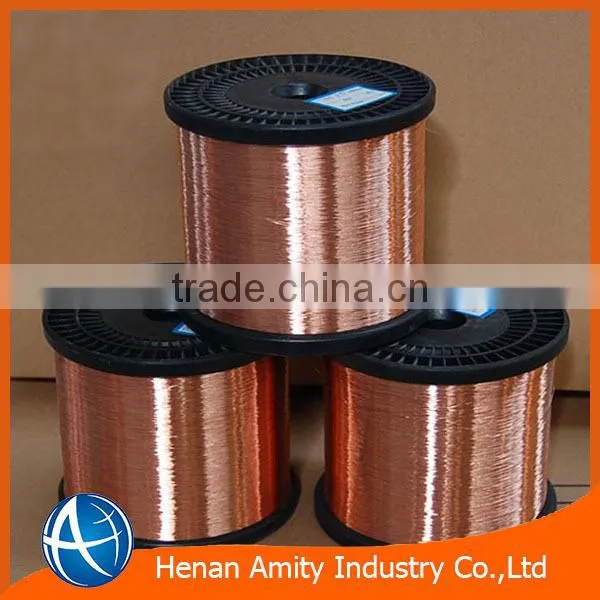

Round Shape Enameled Copper Clad Aluminum Wire
Advantage
1.Good conductivity: the conductivity is the same as pure copper wire when the frequency is higher than 5 MHZ
2.Save copper resource, reduce the product cost:the CCA'S density is 3.7-40% of the pure copper wire, and the length is 2.5-2.7 times of pure copper wire, at the same weight.
The range of product
The ECCA we can produce is 0.10--5.00mm and we also can produce as customer's requirements
Thermal index: 130, 155, 180, 200, 220
Technical specification
Nominal diameter(mm) |
Tensile strength(Mpa) |
Elongation min% in 10 in(or 250mm) |
||
Min.of H classes |
Max. of A classes |
H classes |
A classes |
|
5.15 |
152 |
138 |
1.5 |
20 |
4.62 |
159 |
138 |
1.5 |
20 |
4.12 |
166 |
138 |
1.5 |
20 |
3.66 |
172 |
138 |
1.5 |
20 |
3.26 |
179 |
138 |
1 |
20 |
2.91 |
186 |
138 |
1 |
20 |
2.59 |
193 |
138 |
1 |
20 |
2.3 |
200 |
138 |
1 |
20 |
2.05 |
205 |
138 |
1 |
20 |
1.83 |
205 |
138 |
1 |
20 |
1.63 |
205 |
138 |
1 |
20 |
1.45 |
205 |
138 |
1 |
20 |
1.29 |
205 |
138 |
1 |
15 |
1.15 |
205 |
138 |
1 |
15 |
1.02 |
205 |
138 |
1 |
15 |
0.912 |
205 |
138 |
1 |
15 |
0.813 |
205 |
138 |
1 |
15 |
0.724 |
205 |
138 |
1 |
15 |
0.643 |
205 |
138 |
1 |
15 |
0.574 |
205 |
172 |
1 |
15 |
0.511 |
205 |
172 |
1 |
15 |
0.455 |
205 |
172 |
1 |
15 |
0.404 |
205 |
172 |
1 |
10 |
0.361 |
205 |
172 |
1 |
10 |
0.32 |
205 |
172 |
1 |
10 |
0.287 |
205 |
172 |
1 |
10 |
0.254 |
205 |
172 |
1 |
10 |
0.226 |
205 |
172 |
1 |
5 |
0.203 |
205 |
172 |
1 |
5 |
0.18 |
205 |
172 |
1 |
5 |
0.16 |
205 |
172 |
1 |
5 |
0.142 |
205 |
172 |
1 |
5 |
0.127 |
205 |
172 |
1 |
5 |
