Enameled wire gauge
We mainly supply 130,155,180&200 degree copper/aluminum/CCA enameled wire gauge with high qulaity and competitive price.
Size:
copper enameled wire :0.11-5.0mm /AWG5-AWG37/BWG7-BWG35/SWG6-SWG41
aluminum enameled wire :0.13-6.0mm/ AWG3-AWG36/BWG4-BWG37/SWG4-SWG38
copper clad aluminum enameled wire :0.12-2.5m
Flat enameled wire:Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm
1.Copper enameled wire
standard:
1) 130 degree polyester enameled wire:IEC60317-34
2) 155 degree polyurethane enameled wire:IEC60317-20:2000&MW 79-C
3) 180 degree polyester-imide enameled wire : IEC60317-8:2010& MW 30-C
4) 180 degree polyurethane enameled wire: IEC60317-51:2001& MW 82-C
5) 200 degree polyester-imide overcoated enameled wire IEC60317-13:2010& MW 35-C
2.Aluminum enameled wire
Standard:
1) 130 /155 degree polyester enameled wire: IEC60317-0-3
2) 180 degree modified enameled wire:IEC60317-15
3. CCA copper clad aluminum enameled wire
Solderable Polyurethane enameled CCA wire Class 130
Solderable Polyurethane enameled CCA wire Class 155
Solderable Polyurethane enameled CCA wire Class 180
Polyester enameled CCA wire class 130
Midified Polyester enameled CCA wire class 155
Polyester-imide enameled CCA wire class 180
Test Report of copper electric motor winding wire
Name |
Copper Enameled Wire |
|||
Type |
QZY-2/180/1EIW |
|||
Diameter |
AWG18 |
|||
Standard |
IEC60317-8-2010 |
|||
Date |
Nov 20th,2012 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
|
Conductor Diameter |
mm |
1.024±0.011 |
1.022 |
Thickness of insulation film |
mm |
>= 0.065 |
0.085 |
|
Overall Diameter |
mm |
<=1.121 |
1.107 |
|
Mechanical properties |
Elongation |
|
>=30 % |
38% |
spring-back angle |
|
<=41 |
39 |
|
Flexibility and adhesion |
winding test |
1D,no crack |
ok |
|
Jerk test |
No Crack, and No losing adhesion |
ok |
||
scratch resisting(Average) |
N |
11.6 |
13.88 |
|
scratch resisting(Min) |
N |
9.80 |
13.67 |
|
Thermal propeties |
heat shock |
N |
200°C,D=3.55mm,crack free |
ok |
cut-through resistance |
N |
300°C, 2Min no breakdown |
ok |
|
Chemical resistance |
Resistance to solvent |
H |
1H |
1H |
Electrical properties |
DC resistance at 20°C |
Ω/m |
0.02015-0.02139 |
0.02077 |
|
Breakdown Voltage /room temperature |
KV |
>=5.0 kV |
8.0,8.0,8.0,8.0,8.0 |
|
Enamel Film continuity |
|
<=0 /30m |
0 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
Services
Why choose us?
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials,Strict quality control system
3) Customized sizes,OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, DDU, DDP, etc
2) Sample time: Nearby 3-5days, distance 5-7days.
3) Production time: 10-30days(Depends on the Qty) upon advanced payment received

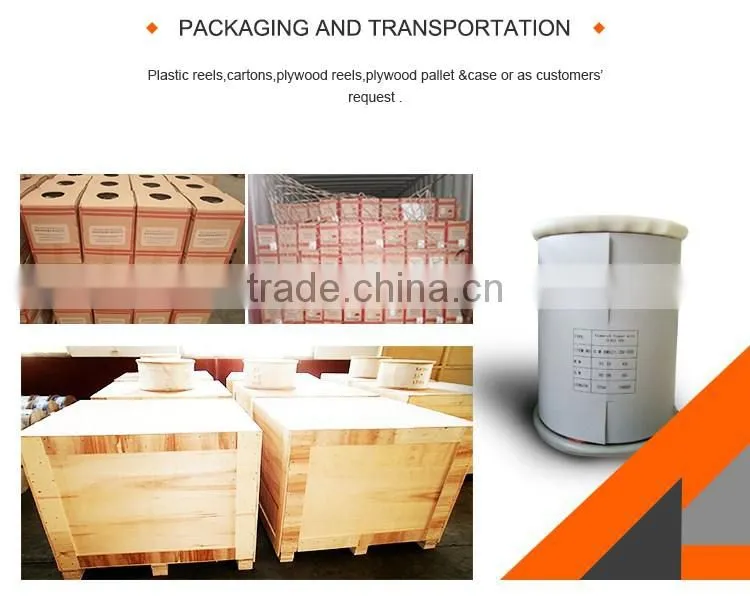

4) Packing: export standard cartons,drums or customized as per customers’ request
FAQ
[Q] What’s your company 's principle products?
[A] Wire & cable:
Electric wire;Power cable 35kv or below;Overhead bare conductor AAC,ACSR,AAAC,ACAR,AACSR;
Aerial bundle cable; Control cable;Rubber cable& Welding cable
Winding wire/magnet wire
Enameled copper,aluminum,cca wire;Paper covered wireFiberglass covered wire
Galvanized steel wire&strands
[Q] How about your company's production capacity?
[A] Wire& cable:5000km per month
Winding wire/magnet wire:1000 tons per month
Galvanized steel wire&strands:2000 tons per month
[Q] Is there a regular management review of Quality performance Indicators
– Customer satisfaction, on time delivery, Supplier quality, in house scrap ,
in house rejects, Customer returns, etc. ?
[A] Yes, we have for all the ones listed above
[Q] How can I get a sample to check your quality?
[A] After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
[Q] what payment terms you can accept?
[A] The payment terms we usually operated is L/C,T/T with deposit and the Payapl,Western Union,
VISA MASTER CARD for small count of order.
