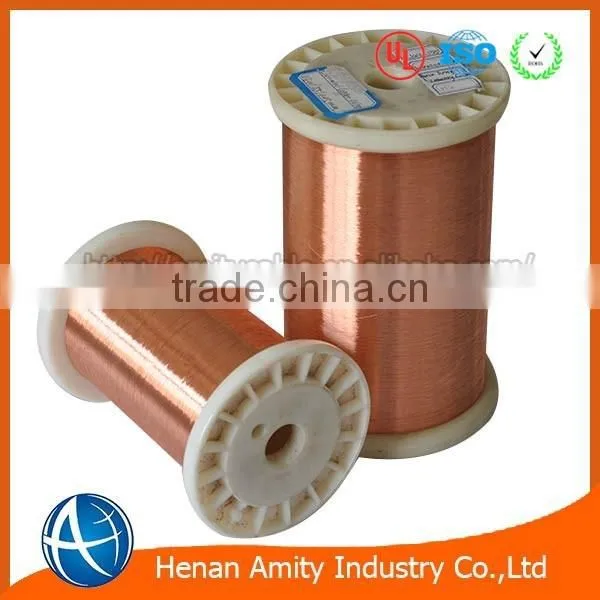

Enameled copper wire
We can supply super enameled copper wire class 130,155,180,200 for motor winding with UL,Rohs,
ISO certificate and competitive price.
Performance features
1) High heat resistance
2) Able to bear refrigerant
3) Able to bear corona performance
4) Able to bear solvents
5) Excellent mechanical properties
6) stable proformance
Applications
a) Especially suitable for frequency conversion and control of motor winding
b) Frequency conversion refrigerators
c) Frequency conversion air conditioner compressor
d) Electromechanical winding
e) High quality electrician tools and lighting products
f) Other electrical machineries with the same demands
Type,Code,Thermal Classification
Category |
Enamel type |
Code |
Thermal classification |
single coat |
polyurethane |
UEW |
130 |
UEWF |
155 |
||
polyester |
PEW |
155 |
|
polyester-imide |
EIW |
180 |
|
polyamide-imide |
AIW |
220 |
|
Dual coat |
self-bonding polyurethane |
SB UEW |
130 |
self-bonding polyester-imide |
SB EIW |
180 |
|
polyurethane over coated with polyamide |
UEW-NY |
130 |
|
UEWF-NY |
155 |
||
polyester over coated with polyamide |
PEW-NY |
155 |
|
PEWH-NY |
180 |
||
polyester-imide over coated with polyamide-imide |
EIW-AL |
200 |
Test report
Name |
Enameled Copper Wire |
|||
Type |
Q(ZY/XY)-2/200 (EI/AIW) |
|||
Diameter |
1.600 mm |
|||
Standard |
IEC60317-13 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
|
Conductor Diameter |
mm |
1.600±0.016 |
1.60 |
Thickness of insulation film |
mm |
>= 0.077 |
0.090 |
|
Overall Diameter |
mm |
<=1.706 |
1.690 |
|
Mechanical properties |
Elongation |
|
>=32 % |
37% |
spring-back angle |
|
<=30 |
27 |
|
Flexibility and adhesion |
winding test |
1D,no crack |
ok |
|
Jerk test |
No Crack, and No losing adhesion |
ok |
||
scratch resisting(Average) |
N |
14.9 |
16.9 |
|
scratch resisting(Min) |
N |
12.6 |
15.4 |
|
Thermal propeties |
heat shock |
N |
220°C,crack free |
ok |
cut-through resistance |
N |
320°C, 2Min no breakdown |
ok |
|
Chemical resistance |
Resistance to solvent |
H |
1H |
2H |
Electrical properties |
DC resistance at 20°C |
Ω/m |
0.008264-0.008748 |
0.008640 |
Breakdown Voltage |
KV |
>=5.0 kV |
8.9kv |
|
Enamel Film continuity |
|
<=5 /30m |
0 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
Services
Why choose us?
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials,Strict quality control system
3) Customized sizes,OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, DDU, DDP, etc
2) Sample time: Nearby 3-5days, distance 5-7days.
3) Production time: 10-30days(Depends on the Qty) upon advanced payment received
4) Packing: export standard cartons,drums or customized as per customers’ request
FAQ
[Q] What’s your company 's principle products?
[A] Wire & cable:
Electric wire;Power cable 35kv or below;Overhead bare conductor AAC,ACSR,AAAC,ACAR,AACSR;
Aerial bundle cable; Control cable;Rubber cable& Welding cable
Winding wire/magnet wire
Enameled copper,aluminum,cca wire;Paper covered wireFiberglass covered wire
Galvanized steel wire&strands
[Q] How about your company's production capacity?
[A] Wire& cable:5000km per month
Winding wire/magnet wire:1000 tons per month
Galvanized steel wire&strands:2000 tons per month
[Q] Is there a regular management review of Quality performance Indicators
– Customer satisfaction, on time delivery, Supplier quality, in house scrap ,
in house rejects, Customer returns, etc. ?
[A] Yes, we have for all the ones listed above
[Q] How can I get a sample to check your quality?
[A] After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
[Q] what payment terms you can accept?
[A] The payment terms we usually operated is L/C,T/T with deposit and the Payapl,Western Union,
VISA MASTER CARD for small count of order.
