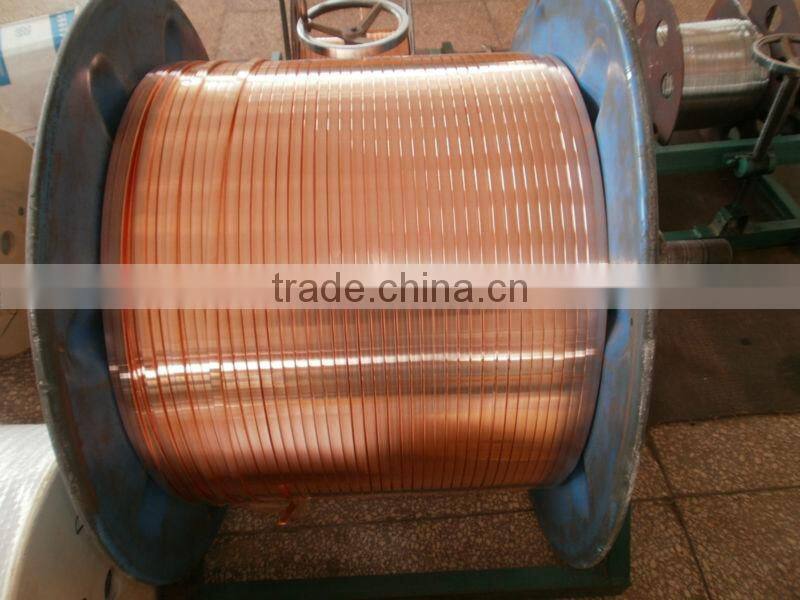

Help CenterClass 200(HC) Enameled Aluminum Flat Wire for Transformer Winding
Related Products
-
Enameled Rectangular Copper Magnet Wire Suppliers in ChinaUS$ 7.5 - 9.5MOQ: 300 Kilograms -
Electromagnetic Wire With Enamel/paper/fiberglass InsulationUS$ 3 - 12MOQ: 500 Kilograms
-
Enameled Copper Magnet Coil Wire for Motor& Transformer WindingUS$ 7.5 - 10.23MOQ: 500 Kilograms
-
Price 1 kg Enameled Copper WireUS$ 7.5 - 12MOQ: 500 Kilograms
-
Glass Fiber Covered Wire for Transformers,reactors and GeneratorsUS$ 3 - 8MOQ: 800 Kilograms

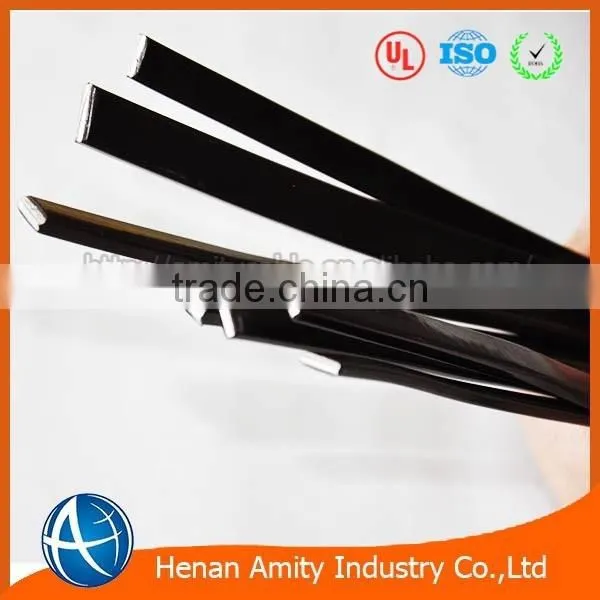

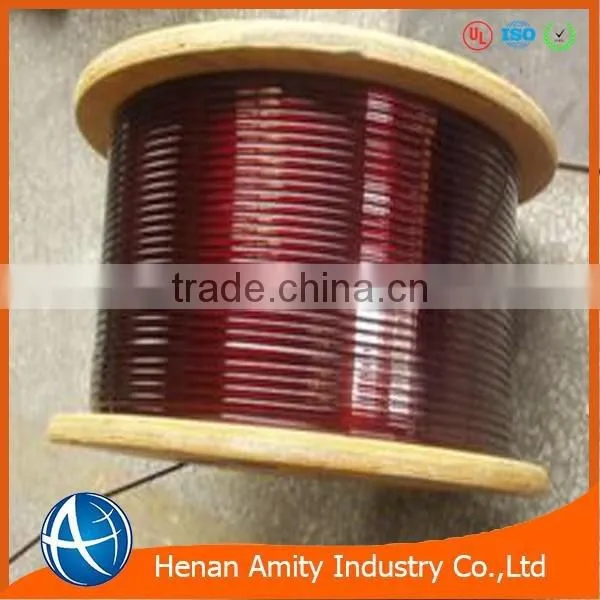

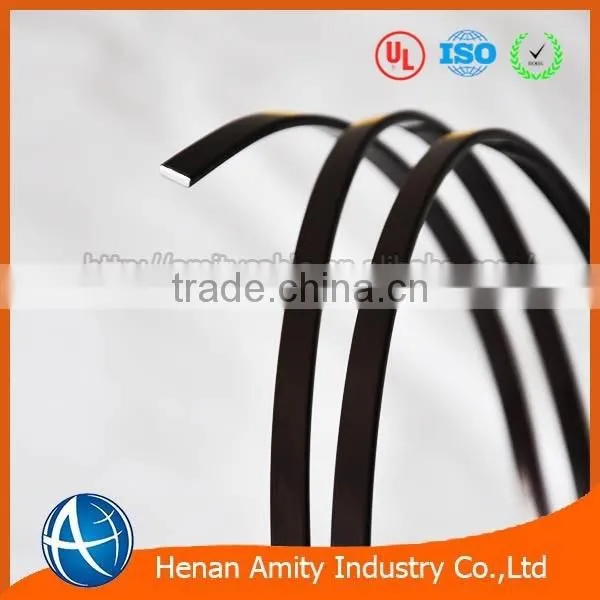

flat wire
We supply a=0.8-5.6mm,b=2.0-16mm enamel flat wire,paper covered flat wire,fiberglass covered flat wire class 130-220 with high output and good price.
Type& standard
1) Polyester enamelled flat wire, class 130
GB/T 7095.7-2008
2) Modified polyester enamelled flat wire, class 155
GB/T 7095.3-2008,
IEC60317-16
3) Polyesterimide enamelled flat wire, class 180
GB/T 7095.4-2008,
IEC60317-28:1990
4) Polyester (imide) coated with polyamide-imide enamelled flat wire, class 200
GB/T 7095.6-2008,
IEC60317-29:1990
5) Polyimide enamelled flat wire, class 220
GB/T 7095.5-2008,
IEC60317-47:1997
Product characteristics:
good scratch resistance and solvent resistance,good adhesion ability and excellent heat shock and high heat resistance
Application:
oil-immersed transformers,dry-type transformers,explosion-proof motors,electric tools,welding machines,etc

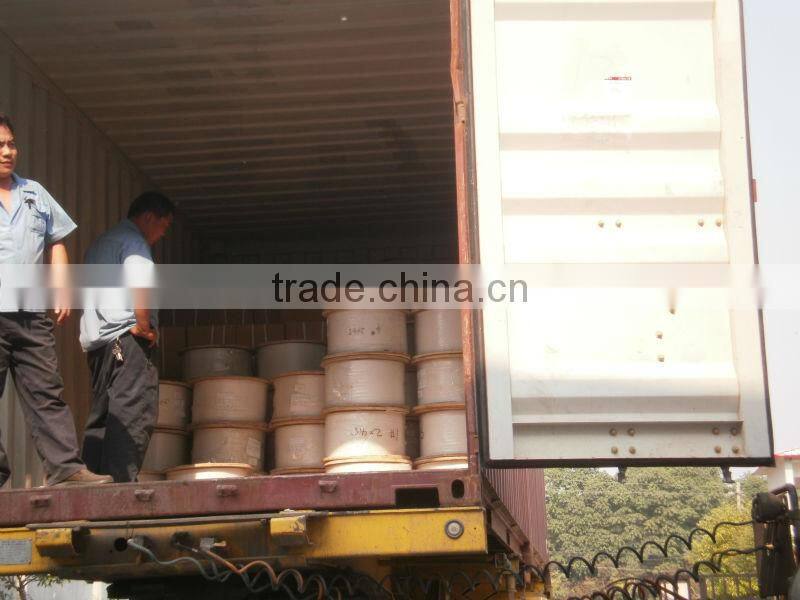

Package:

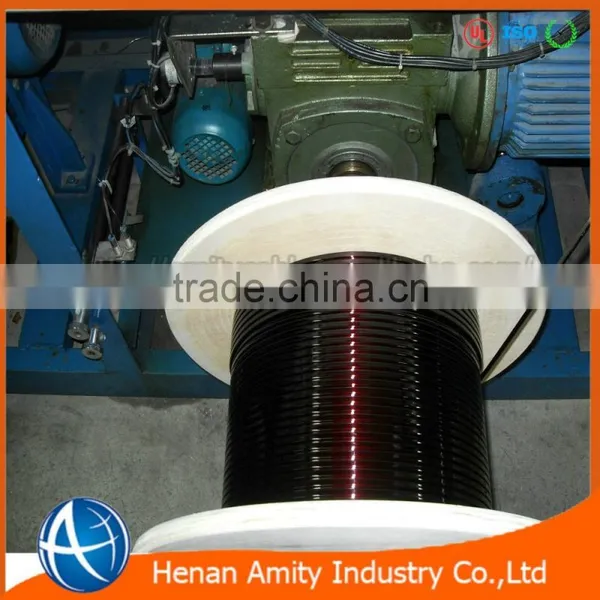

Inner:polywood bobbin with film
Outer:carton then polywood pallet or case or as per customer's requirement
Delivery:
10 days for a trial order, 20 days for a 20ft container
Name |
Enameled Aluminum flat Wire |
|||
Model |
Q(Z/Y)LB-2/180 |
|||
Diameter |
2mm*6mm |
|||
Standard |
MW36-A |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
Bare Conductor |
a |
mm |
±0.03 |
2.01 |
b |
mm |
±1% |
6.03 |
|
Thickness of insulation film |
a |
mm |
0.102-0.152 |
0.115 |
b |
mm |
0.127-0.178 |
0.160 |
|
resistance |
Ω/m |
≤0.02785 |
0.02776 |
|
Elongation |
|
>15% |
21% |
|
Flexibility and adhesion |
|
15% No cracking |
no cracking |
|
Resistance to heat shock |
C |
200C insulation film no cracking |
Tensing 10% half an hour, no cracking |
|
Resistance to solvent |
|
Standard solvent “H” Pencil |
2H is ok |
|
Breakdown Voltage |
KV |
2.5 KV |
4.8,4.9,4.6,4.2 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
