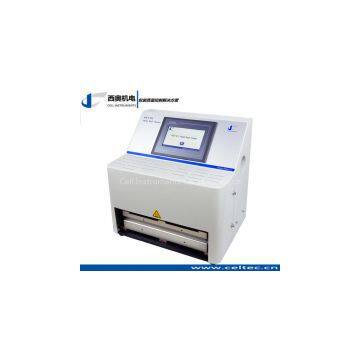

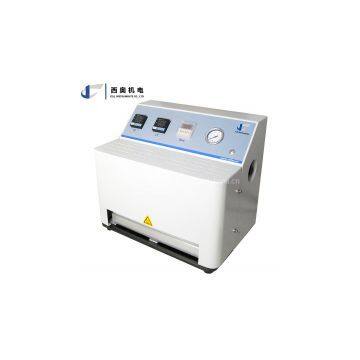

Gradient Heat Seal Tester is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc. How well the material heatseals is expressed quantitatively as seal strength as a function of the sealing conditions of temperature, time and pressure. It conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003.
Gradient Heat Seal Tester Features
1. Five groups sealing temperature can be measured with one test
2. Proximity and pressure sensor for precise dwell time andsealing pressure control

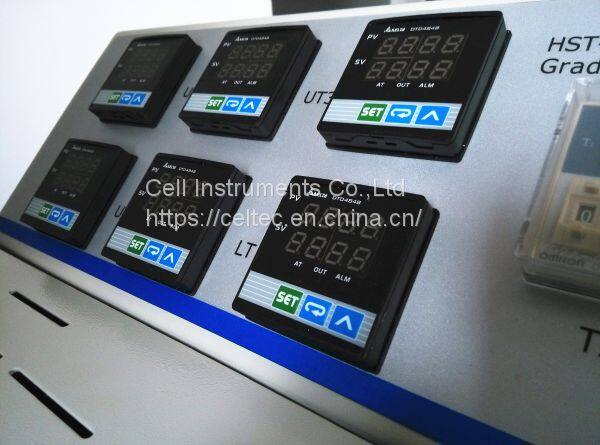

3. P.I.D. for precise sealing temperature control
4. Uniform heating by aluminum encapsulated sealing jaws and noinhomogeneous heating
5. Independent heating of upper and lower sealing jaws
6. Sealing jaw customization available in term of dimension, shape and surface
Gradient Heat Seal Tester Specification
Sealingtemperature Room Temperature ~300℃
Deviation ±0.2℃
Dwelltime 0.1 s~9999H
Sealingpressure 0.15 MPa ~ 0.7 MPa
SealingJaws 40mm×10mm×5(SealingSurface)(Customization Available)
Double Heating of Upper and Lower Jaws
GasPressure 0.7 MPa of Air
Dimensions 455mm (L)*320mm (W) *440mm (H)
PortSize Ф6 mm PU Hose
Gradient Heat Seal Tester Standards
ASTM F2029, QB/T 2358, YBB 00122003
