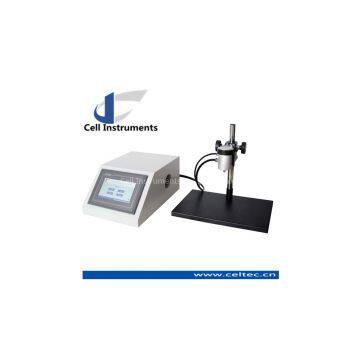

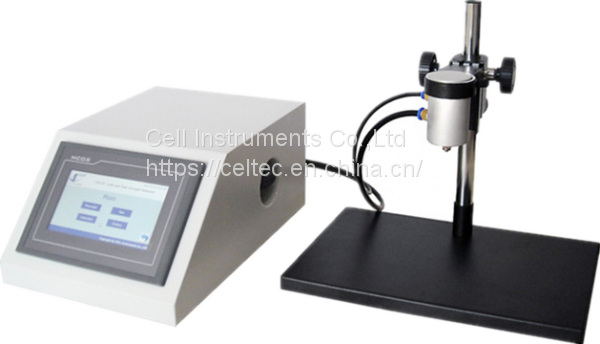

The three test modes of Open Package Leak Tester are
A. Burst Test: It internally pressurizes the packages until the package fails. The test pressure is the maximum pressure detected before the package fails.
B. Creep Test: Pressurize the package internally to a specific pressure and maintains this pressure for a specific time. The test measure is pass/fail.
C. Creep to Failure: The package is creep-tested and held until the package fails. The pressure setting is higher than that of the creep test to ensure the package fails in some time. The measure is thetime until failure.
Features
1. Three test modes of burst, creep and creep tofailure are available.
2. PLC programmable logic controller realizes precise pressure and time control.
3. 7 inch TFT touching screen for convenient parameter setting and test operation.
4. Multiple groups of test parameters can be saveto avoid repetitive setting.
5. Test result auto statistics and storage.
6. Program customization available.
Open Package Leak Tester Technical Specifications
PressureRange 0 ~ 600 KPa; 0 ~ 87.0 psi (Standard)
InflatingHead Φ4mm (Standard)
GasPressure 0.4 MPa~0.9 MPa
PortSize Φ6 mm PU hose
Dimensions 400mm (L) × 270 mm (W) × 180 mm (H)
PedestalSize 375mm (L) × 275 mm (W) × 345 mm (H)
Power AC 220V 50Hz
Standards
ISO 11607-1,ISO 11607-2, ASTM F1140, ASTM F2054, GB/T 10440, GB 18454, GB19741, GB 17447, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005,YBB 00162002
