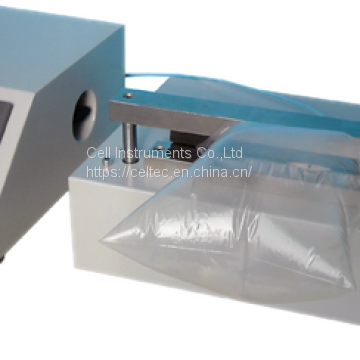

Pressure Decay Method Leak Tester is suitable for the quantitativedetermination of sealing strength, heating sealing quality, burst pressure andleakage of flexible and aseptic packages. The Leak and Seal Strength Detector can also be used to determine the sealingperformance of pilfer-free bottle caps and soft tubes.
Pressure Decay Method Leak Tester conforms to standards of ISO 11607-1, ISO11607-2, ASTM F1140, ASTM F2054, GB/T 10440, GB 18454, GB 19741, GB 17447, GB/T17876, GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002 .
Pressure Decay Method Leak Tester Features
1. Threetest modes of burst, creep and creep to failure are available.
2. PLCprogrammable logic controller realizes precise pressure and time control.

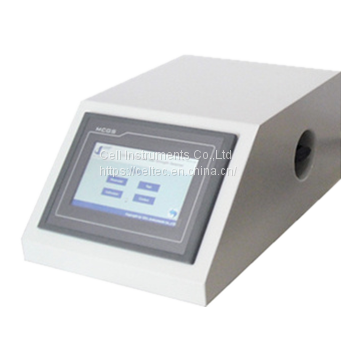

3. 7 inchTFT touching screen for convenient parameter setting and test operation.
4. Multiplegroups of test parameters can be save to avoid the repetitive setting time.
5. Testresult auto statistics and storage.
6. Program customization available.
Pressure Decay Method Leak Tester Technical Specifications
PressureRange 0 ~ 600 KPa; 0 ~ 87.0 psi (Standard)
InflatingHead Φ4mm (Standard)
GasPressure 0.4 MPa~0.9 MPa
PortSize Φ6 mm PU hose
Dimensions 400mm (L) × 270 mm (W) × 180 mm (H)
PedestalSize 375mm (L) × 275 mm (W) × 345 mm (H)
Power AC 220V 50Hz
