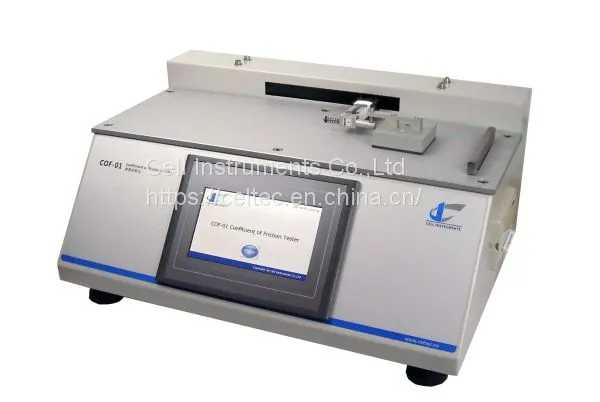

PE film Coefficient of Friction Tester measures the static and kinetic COF of plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires.
It follows ASTM D1894 and ISO 8295 standard.
1) this is PLC controlled and touch screen operation, very stable and convenient
2) this is primarily designed for flat thin materials like film, paper, rubber,sheet, etc. but it can be modified for other materials as well.
3) this is speed settable so it complies with both ASTM D1894 and ISO 8925
4) microprinter
5) sofware is optional
Coefficient of Friction Tester technical Specification
Load Cell 5/6N
Accuracy ±0.02 N
Stroke Max 150mm
Sled 200 g (Customization for other weight)
Test Speed 100mm/min (ISO), 150mm/min(ASTM)
Power AC 220V 50Hz (can be changed to local requirement)
Dimensions 400mm(L)*300mm(W)*180mm(H)
Coefficient of Friction Tester Standards
ASTM D1894, ISO 8295, TAPPI T816, GB 10006
