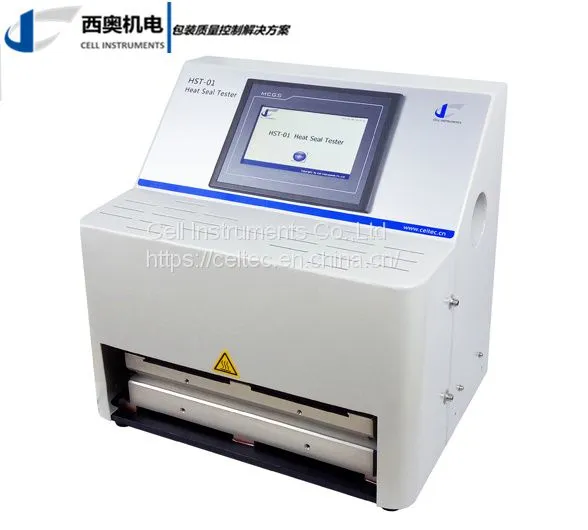

Plastic film Heat Seal Tester is for the determinationof the heatsealability of a surface,or sealant layer of films, laminates, composites and polymers etc. How well thematerial heatseals is expressedquantitatively as seal strength as a function of the sealing conditions oftemperature, time and pressure.
Plastic film Heat Seal Tester is professionally designed for the precise measurement of thethree parameters of temperature, time and pressure in the heat seal process. HeatsealabilityTester conforms to standards of ASTMF2029, QB/T 2358 and YBB 00122003.
Plastic film Heat Seal Tester features

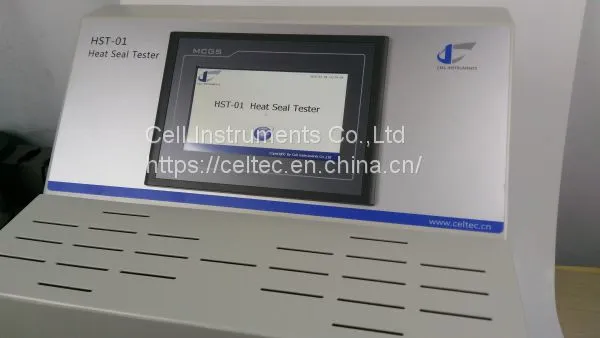

1. 7 inch TFT touching screen makes parametersetting and operation easy and convenient for Heat Seal Tester.
2. PLC for precise dwell time and sealingpressure control
3. P.I.D. for precise sealing temperaturecontrol
4. Uniform heating by aluminum encapsulatedsealing jaws and no inhomogeneous heating
5. Multiple groups of test parameters can besaved to reduce setting time and eliminate human error
6. Independent heating of upper and lowersealing jaws on the model of Heat Seal Tester.
7. Sealing jaw customization available in termof dimension, shape and surface
Technicalspecifications
Sealingtemperature Room Temperature ~ 300℃
Deviation ±0.2℃
Dwelltime 0.1 s~infinite
Sealingpressure 0.15 MPa ~ 0.7 MPa
SealingJaws 330mm×10mm(Sealing Surface)(CustomizationAvailable)
Double Heating of Upper andLower Jaws
GasPressure 0.7 MPa of Air
Dimensions 455mm (L) *320mm (W) *440mm (H)
PortSize Ф6 mm PU Hose
Power AC 220V 50Hz
Standard
ASTMF2029, QB/T 2358, YBB 00122003
