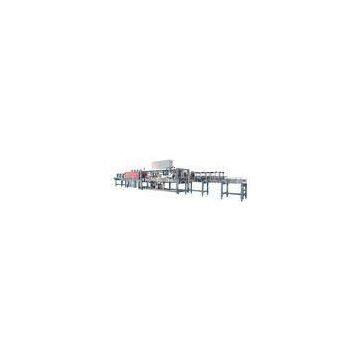

Industrial Automatic PE Film Shrink Wrapper Packaging Equipment for Vinegar And Soy Sauce

Delivery Time:20-40day after getting the bottle sample
Certification:CE,ISO9001:2001,BV

Industrial Automatic PE Film Shrink Wrapper Packaging Equipment for vinegar and soy sauce

Specifications:

Model	MB-20
Packing form	2×3, 3×4, 3×5, 4×5, 4×6 (According to bottles)
Work power	three-phase-five- line 380V/50~60Hz
Working pressure	0.6~0.8Mpa
Shrink chamber size	L×W×H=2400×650×450 (mm)
Speed	18 packs/min
Sealing & cutting temperature	190°C~230°C
Shrink temperature	200°C~280°C
Material	PE
Roll of film width	≤600mm
Roll of film thickness	0.06~0.12mm
Roll of film diameter	≤450mm
Work noise	≤65dB
Total power	35KW
Total weight	2500kg
Machine size	L×W×H=12000×1100×2100mm
Conveyer belt max width	541mm, Height of produce line (Adjustable range 150mm)

Description:

MB series machine has been designed for no tray, no cardboard case, packing with low cost in the operations, it is widely used in food, beverage, chemical and office industries

Applications:

Shrink film wrapping Soft drink, liquor (beer, rice wine and alcohol, etc.) Liquid food (edible oil, vinegar and soy sauce, etc.) Daily commodities (detergent, shampoo and so on)

Main features

Exterior is compact, excellent and frame is novel, Particular, repair is easy. Electron influence for film-feeding, is placidly, film-changing is quickly. Using isothermal sealing and cutting knife .The seal’s intensity is cooling sealing & cutting knife 3 times and the use life is above cooling sealing & cutting knife 80 times. Sealing &cutting time is 0.6s. Speed regulation of transport systems by frequency variation, the transmission action is precise and synchro. The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better. During the product forward conveying process. it can automatically group the product in to package, so as to save time and enhance packing efficiency The idea model of middle-speed heat-shrinking packager in the domestic market.

Main parts

No.	Name	Brand	Region	Remarks
1	Pneumatic Cylinder	Chanto	Taiwan
2	Pneumatic Components	Airtac	Taiwan
3	PLC	Omron	Japan
4	Button	Tayee	China
5	Inverter	Schneider	France
