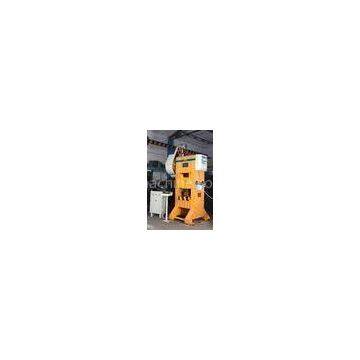

Help CenterAutomatic 45 Ton Mechanical Transfer Feeder Puching Cutting Power Press Machine (J72-45D)
Related Products
-
2120mm F-B 110 Ton Hydraulic Power Metal Single Punch Tablet Press MachineNegotiableMOQ: 1 Set -
120 S.P.M Power Brand 16 Ton Punching Mechanical Power Die Press Machine J23 -16BNegotiableMOQ: 1 Piece
-
High Rigidity PLC Centralized Control Power Press Machine With Oil Lubrication SystemNegotiableMOQ: 1 Piece
-
Steel-welded c Type Fixed Table 315 Ton Metal Pneumatic Power Press MachineNegotiableMOQ: 1 Piece
-
PLC Electrical Control Power 250 Ton Crank Punch Press Machine J21M-250NegotiableMOQ: 1 Piece
Certification:CE,ISO,SGS,FDA
automatic 45 Ton mechanical transfer Feeder Puching cutting power press machine (J72-45D) transfer press:
capacity: 45 ton
strokes:40-100 min-1
main motor:7.5KW
54 years\' manufacture experience
I. Main Features and Function:
A. C-Frame Structure, ahead of the machine body is equiped with two drawer bar, which expanded operation space, improved its rigidity, enhanced the workpieces in high precission, improved dies’life.
B. Using converter to adjust speed, makes the adjustment of speed accurate and reliable, expands its technical scope
C. Using combined pneumatic friction clutch brake system, realized that the slider could stop at any position during working process.
D. Driven by cam,the slider can transverse processing between top dead center and bottom dead center.
E. Epuiped with integral die sets,each station die is installed in the die sets, the closed height of each die could be adjusted separately, and it is convenient for installation and adjustment.
F. During each stataion, it is transimted by cam driver, the transimission is smooth and in high precision repositioning.
G. Unique air line system provides overload protection function for machine.
F. PLC electric control system is equiped with virous display instrument and test device. It can alarm and park automaticly when the machine runs improperly.
II. Standard configuration:
A. Combined pneumatic friction clutch brake system
B. Transducer to adjust the speed
C. Imported safety dual Electromagnetic valve
D. Lubrication System
E. abnormality automatic protection device
III. Optional:
A. Feeder
B. Bottom knockout mechanism
C. Puching cutting and blanking device of first station
D. Station transimitting mechanism
E. Crosswise processing device
F. Blowing device
G. Die sets
H. Waste pick-up device
I. Die cooling system
J. Die safety detection
IV. Technical data:
|
Model Data Item |
J72-25 |
J72-45 |
J72-45D |
J72-65D |
J72-65D1 |
|
Norminal Pressure (kN) |
250 |
450 |
450 |
650 |
650 |
|
Recommand Force(mm) |
16 |
300 |
300 |
450 |
450 |
|
Standard stroke(mm) |
50 |
65 |
125 |
177.8 |
180 |
|
Max. Stroke(mm) |
76 |
100 |
- |
||
|
Standard number of stroke(min -1) |
50~200 |
40~100 |
40~100 |
25~100 |
25~100 |
|
Standard Die Height(mm) |
255 |
330 |
385 |
|
