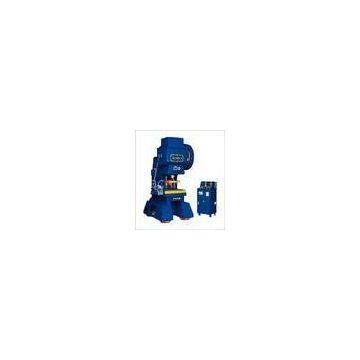

PLC Electrical control Power 250 ton crank punch press machine J21M-250
punch press:
capacity: 250 ton
throat depth:45mm
size of table:1600(L)*880(W)mm
54 years\' manufacture experience
\"Power Brand\" 250 ton high performance crank punch press machine (J21M-250):
I. Main Features and Function:
A. Open type steel welded body with high rigidity, crankshaft is placed lenthways, nice appearance;
B. Pneumatic dry friction clutch-brake with flexible movement and reliable performance;
C. Six-side long guides of the slide with high moving precision;
D. Shut type gear set with low noise;
E. Hydraulic overload protector is intelligent and dependable, protect the safety of the press and tools;
F. PLC Electrical control system;
G. For machines over J21M-60, equipped with motorized die height adjustment.
II. Standard configuration:
A. Pneumatic dry friction clutch-brake
B. Hydraulic overload protector
C. Electromagnetic speed-adjustable motor
D. Imported dual solenoid operated valve
E. Automatic device adjust the height of die set
F. Electronic cam control
III. Optional:
A. Output axle for connect feeder
B. Frequency conversion or fixed speed motors
C. Domestic dual solenoid operated valve
D. Automatic strong oil lubrication system
E. Photo-electronic safety device
F. Feeder
G. Air cushion
IV. Technical data:
|
Data |
J21M-250 |
|
|
Nominal Pressure(KN) |
2500 |
|
|
Nominal Pressure Stroke(mm) |
6.0 |
|
|
Stroke of Slide(mm) |
220 |
|
|
Strokes (S.P.M) |
25~45 |
|
|
Max. Die Set Height(mm) |
500 |
|
|
Die Set Height Adjustment(mm) |
120 |
|
|
Depth of Throat(mm) |
450 |
|
|
Distance between uprights(mm) |
980 |
|
|
Size of table |
L-R(mm) |
1600 |
|
F-B(mm) |
880 |
|
|
Thickness(mm) |
190 |
|
|
Hole of table |
Diameter(mm) |
Φ400 |
|
Bottom size of Slide |
L-R(mm) |
950 |
|
F-B(mm) |
700 |
|
|
Hole for punch shank |
Diameter(mm) |
Φ70 |
|
Depth(mm) |
90 |
|
|
Motor Power(kw) |
22 |
|
|
Overall Size |
L-R(mm) |
2640 |
|
F-B(mm) |
1650 |
|
|
Height |
3960 |
|
|
Total Weight(kg) |
23540 |
