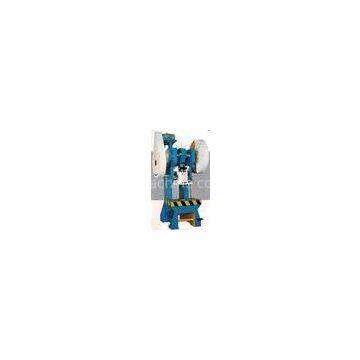

2120mm F-B 110 ton hydraulic Power metal single punch tablet press machine

2120mm F-B 110 ton hydraulic Power metal single punch tablet press machine mechanical press:
working capacity:110 ton
motor power: 11KW
strokes:35~65 S.P.M
with 53years\' manufacture experience



Main Function & Features:

l        Steel welded C- frame body , ageing treatment, high rigidity, stable precision

l        Crankshaft placed in vertical,  compact structure, good appearance

l        Six-side extra long rectangle guides of the slide, the surface of slide guides is bronze panel, in high moving precision and high abrasive resistance

l        Closed of gear drive, closed submerged lubricant, low noise and long service life

l        Red-tipped connecting rod structure separate wear thread and connecting rod body, reduce the cost of the parts.

l        Double balanced cylinder balances the weight of slider component and upper die, eliminates gap among each part, reduces impact and noise

l        The flexible connection of balanced cylinder and slider,  ensuring the long service life of the cylinder.

l         Hydraulic overload protector protects the press and tools

l         Pneumatic dry friction clutch-brake with flexible movement and reliable performance

l         Imported PLC centralized control electric system, imported safety dual valve control air system realize flexible move, single and continuous stamping, urgent stop and other operations safety and reliable

l         Optional photo-electronic safety device, transmission output axle, feeder, air cushion and other optional accessories are available for this power press subject to user’s demands.

 Standard configuration:

l        Pneumatic dry friction clutch-brake

l        Hydraulic overload protector

l        Constant speed motor

l        Imported safety electromagnetic valve

l        Manual oil lubrication system

l        Motorized die height adjustment

l        Electronic cam control

Optional configuration:

l        Feeding output shaft

l        electromagnetic stepless speed regulation or frequency conversion system

l        Safety electromagnetic valve

l        Photo-electronic safety device

l        Feeder

l        Air cushion

l        Automatic oil lubrication system

 Technical Data:

Items	Unit	J21M-110
Nominal Pressure	KN	1100
Nominal Pressure Stroke	mm	6.0
Stroke of Slide	mm	180
Strokes	Fixed	S.P.M	60
Variable	S.P.M	35~65
Die Height Adjustment	mm	80
Depth of Throat	mm	350
Distance between Uprights	mm	710
Size of Table	L-R	mm	1150
F-B	mm	680
