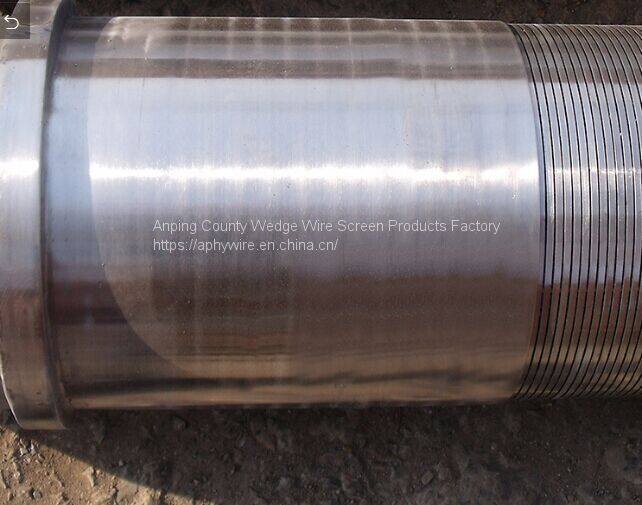

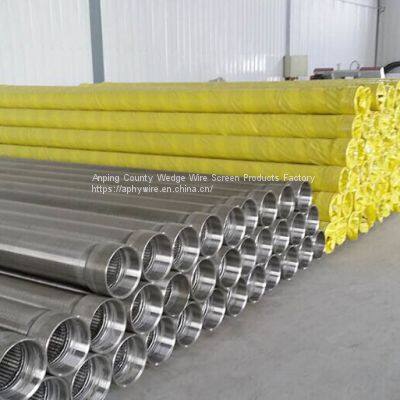

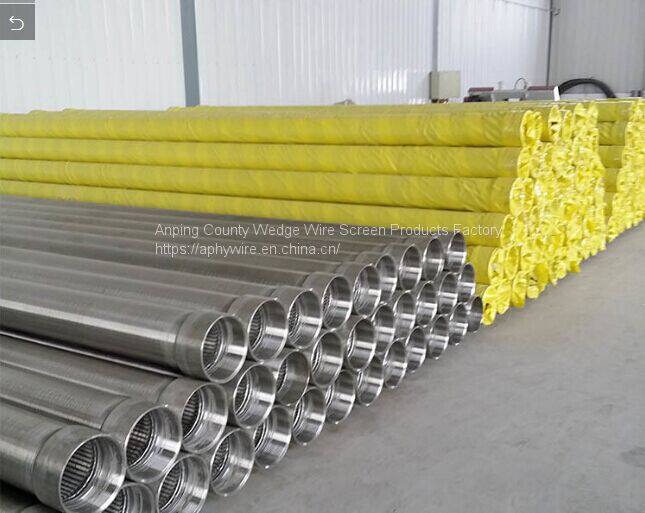

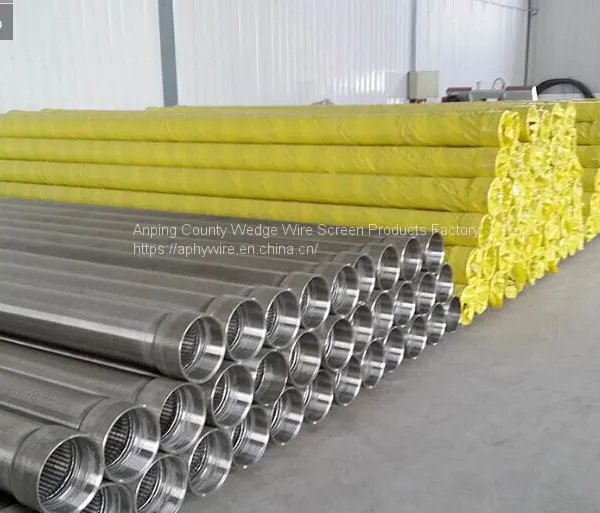

stainless steel water well screen Johnson drilling well screen,slotted screen,strainer pipe V wire wrap stainless steel screen tube Johnson Screen/Water Well Screen / Wedge Wire Screen/Welded Screen/Screen Pipe
Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .
O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch, 16inch,18inch, 20inch
the slot0.1mm-45mm
the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50

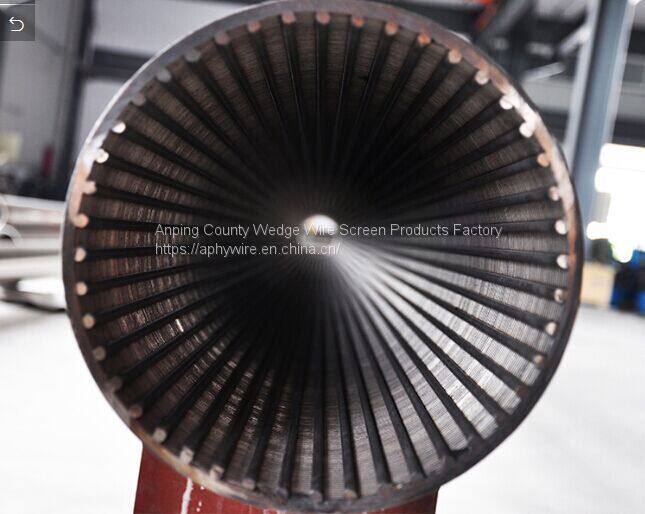

The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

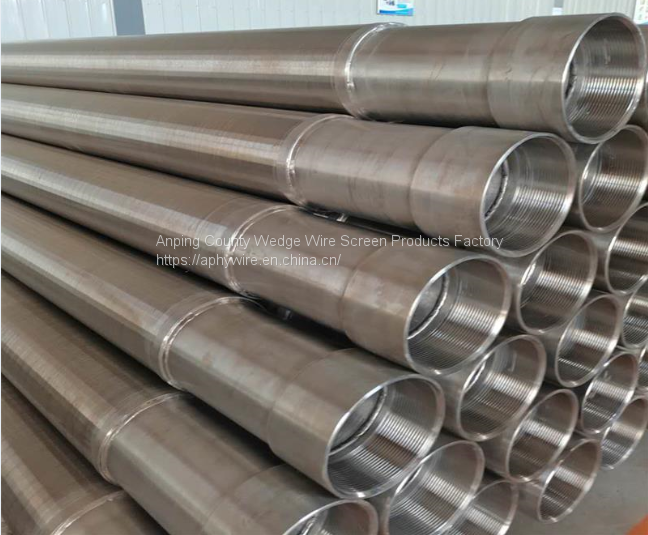

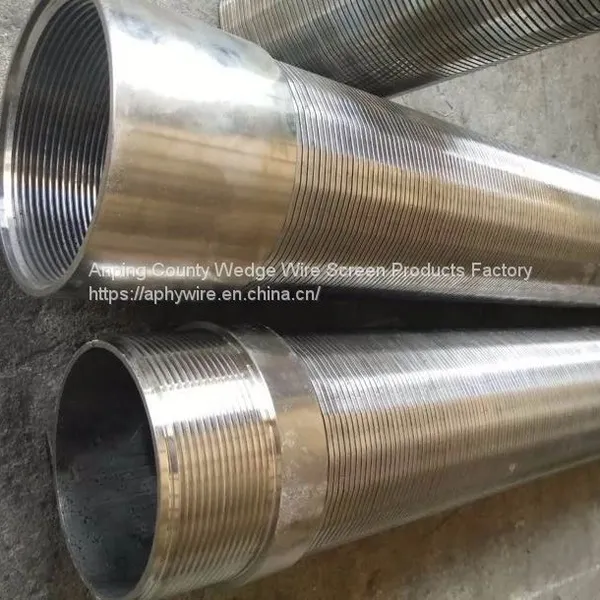

Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m
Water Well Screen Parameter selection table:
| SIZE (Inch) |
O.D (mm) |
SLOT (Inch) |
LENGTH (M) |
Collapse Strength (PSI) |
Tensile Weight (ton) |
Wire size (mm) |
Support RODS (mm) |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.5 | 3.8mm/22 |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.5 | 3.8mm/22 |
| 6-5/8 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8-5/8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10-3/4 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/55 |
