Wedge Wire Cylindrical Rotary Filter

Feiya International Group.,ltd
Wedge Wire Cylindrical Rotary Filter thumbnail-1
Wedge Wire Cylindrical Rotary Filter thumbnail-2
Wedge Wire Cylindrical Rotary Filter thumbnail-3
Wedge Wire Cylindrical Rotary Filter thumbnail-4
Wedge Wire Cylindrical Rotary Filter thumbnail-5
Wedge Wire Cylindrical Rotary Filter photo-1
Wedge Wire Cylindrical Rotary Filter photo-2
Wedge Wire Cylindrical Rotary Filter photo-3
Wedge Wire Cylindrical Rotary Filter photo-4
Wedge Wire Cylindrical Rotary Filter photo-5
US$ 50 - 300 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
feiyatrade, xinlu wire mesh, xinlu wedge wire screen
Place of Origin:
China
Model Number:
to order
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port, China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name feiyatrade, xinlu wire mesh, xinlu wedge wire screen
Place of Origin China
Model Number to order
Material Other, ss304, 304L, 316,316L,321,etc
Length to order
Thickness to order
Type Filter Cylinder
Width to order
Usage Solid Filter
Filter Rating 0.05-30mm
Hole Shape Square
Material:Stainless SteelGrade:304
Slot Size:1.0 MmDiameter:520 Mm
Length:600 MmComponents:None, As The Customer's Requirement
Package:Woden Box,Container

High Light:wire cylinder basket, rotary sand screen


Stainless steel Reverse Wedge Wire Wound Screen Drum Heat FITO Filter Cylinder Basket




Product Description:

Stainless steel Reverse Wedge Wire Wound Screen Drum Heat FITO Filter Cylinder Basket is made by Johnson screen mesh through reverse welding.

From inside to outside (FITO):

Whereas,the liquid flow from inside to outside.It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.


Specification:


MaterialStainless steel
Grade316L
 I.D150-1000 mm, 400 MM
Slot Size0.1 - 30 mm,  0.75 mm
ComponentsNone
Length300-3000mm, 500 mm,
Filter type From inside to outside
Wire size2*3.5 mm
Support rod3*4.6 mm
Wire shapeV shape


Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.


SIZES OF THE WIRE AND ROD
Wire





Width(mm)1.01.21.52.33.0
Height(mm)2.02.22.53.54.6
Rod




Round wire
Width(mm)2.32.33.03.73.3Diameter
Height(mm)2.73.54.65.66.30.25-0.5m




Special specification can be made according to your need.


Benefits:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel have the high corrosion resistance

Easy to backwash, clean without dead Angle.

Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.

Built-in scraper, brush, suction first class cleaning device.

The special



Industry:



● Trommel screens with internal feed

● Systems with an internal rotor or screw

● Dewatering systems

● Baskets

● Automatic filters

Fecal treatment



Pictures:

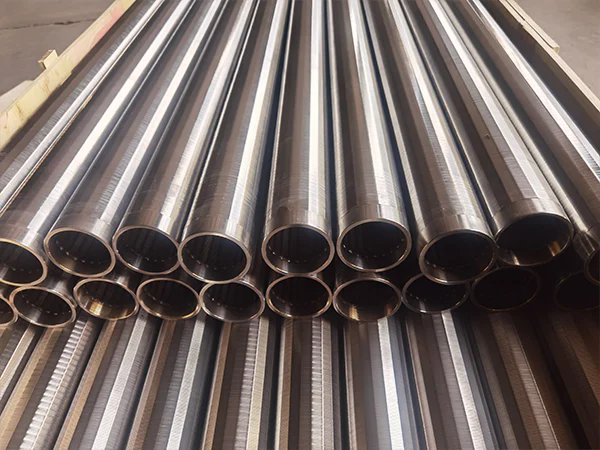

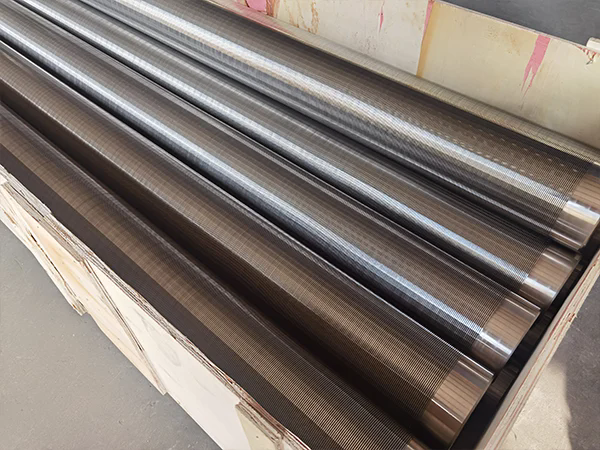

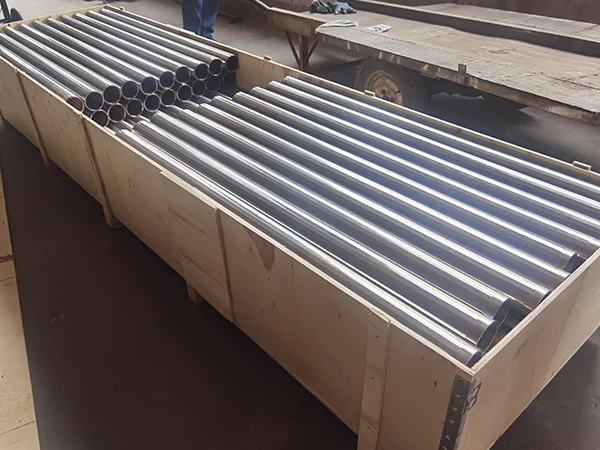

Package:

Stainless Steel Reverse Wedge Wire Basket With High Corrosion Resistance 4


Product Tags: wedge wire rotary drum screen , wedge wire filter element , wedge wire cylindrical screen , rotary sand screen , v wire cylinder basket , wire cylinder basket , johnson rotary drum screen , johnson cylinder screen , johnson filter drum screen
