Specification of Johnson Wedge Wire Water Well Filter Stainless Steel Screen

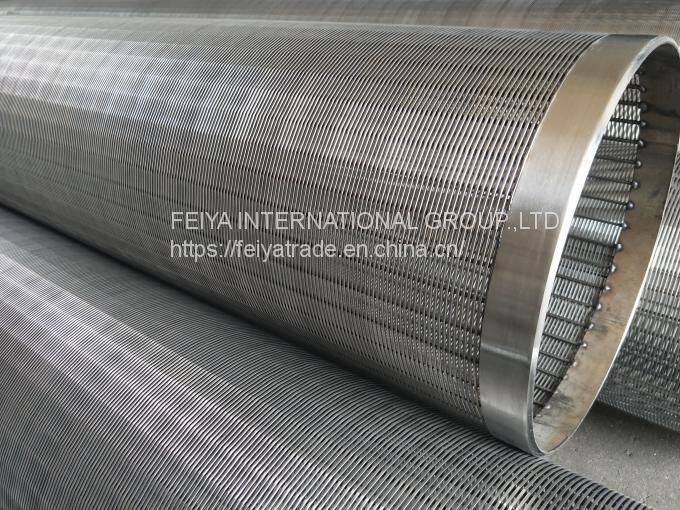

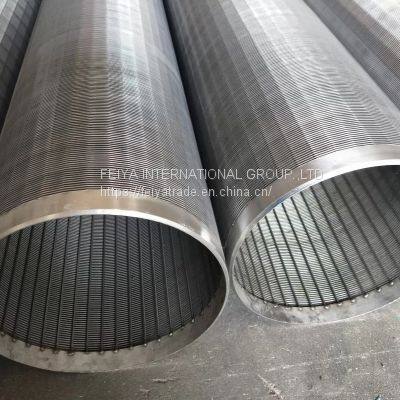

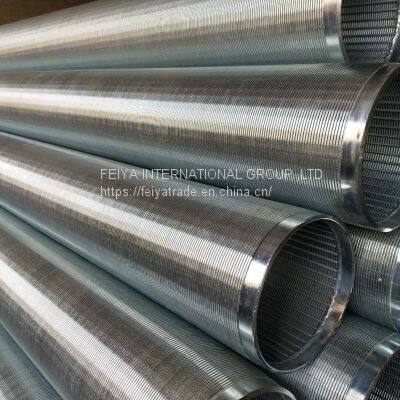

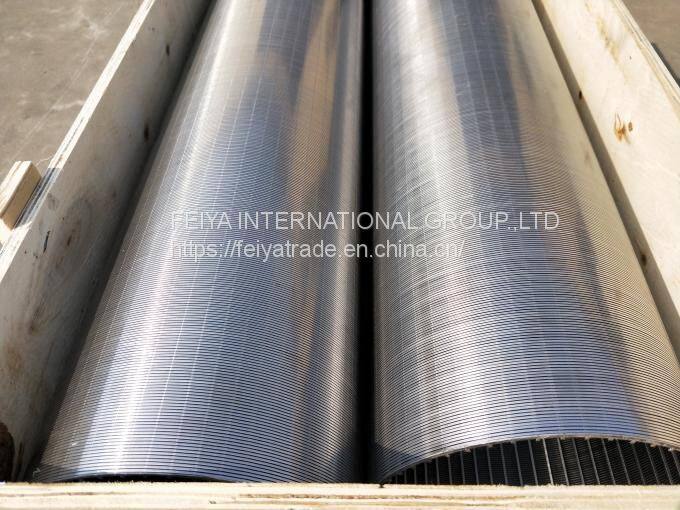

v wedge wire wrapped well screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding. It is used in water well, oil well, gas wells and for environmental well completions.
Material:
generally of stainless steel 304, 304L,316, 316L, 321 etc. We also produce special material according to the customer request.
Characteristics:
1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits
Technical parameter:
1) wire size: 0.75×1.5mm, 1×2mm, 2X3mm, 2.3×3mm, 3×5mm
2) Slot width: 0.5mm,1.0mm,
3) screen diameter: 25mm, 33mm, 37mm, 40mm, 60mm, 177mm,219mm,273mm,323mm
4) screen length: 5.8m,11.9m.
Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Heigh(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 Heigh(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request | |
Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length | up to 6 meters. |
Diameter | from 25mm to 1200mm. |

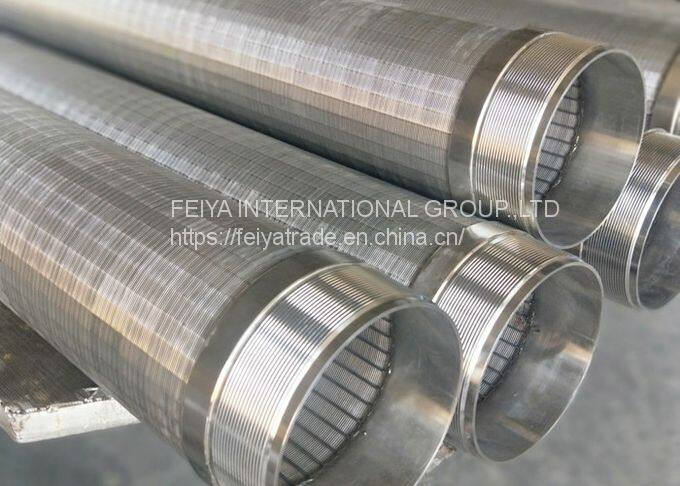

End connection | Plain beveled ends, flanged or threaded couplings |
End connection:
Threaded couplings, Flanged
Wedge wire screen control system
Application of Johnson Wedge Wire Water Well Filter Stainless Steel Screen
For industrial equipment wedge wire water filter
