Home > Products > Hardness Tester > Leeb Hardness Tester HM-6580
Leeb Hardness Tester HM-6580
- 2000 Piece / Pieces per Month
- Guangzhou
- T/T PayPal Other
- 3 days
Product Details
Brand Name: | Landtek | Place of Origin: | China | Model Number: | HM-6580 |
Product Description
Applications:
Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuring areas for large-scale work piece.
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.
Case Material | Aluminum Alloy |

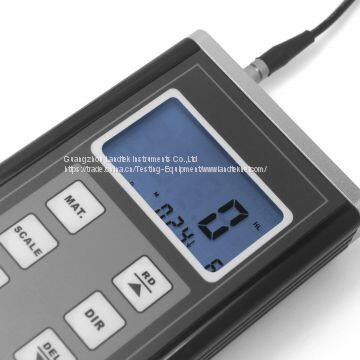

Display | LCD |
Materials | 9 different common materials ( Steel & Cast Steel, Metallurgy tool steel, Forged Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper ) |
Measuring range | (170-960)HLD,(20-68)HRC,(19-651)HB,(80-967)HV,(30-100)HS, (13-100)HRB |
Accuracy | ±8HLD(HLD=800) |
Repeatability | ±6HLD(HLD=800) |
Conversion | HL-HRC-HRB-HB-HV-HSD |
Measuring Direction | 360° |
Impact device | D Will handle, Weight: 75g |
Radius of Measured Workpiece | Rmin=50mm ( For non-conventional Supporting ring Rmin=10mm ) |
Min. Weight of Workpiece | Stable support 2kg ( 0.1kg Coupling ) |
Min. Thickness of Workpiece | 3mm |
Min. Thickness of Hardened Layer | 0.8mm |
Working Conditions | Temperature: 0 ~ 40 ℃ Humidity: ≤ 90 % |

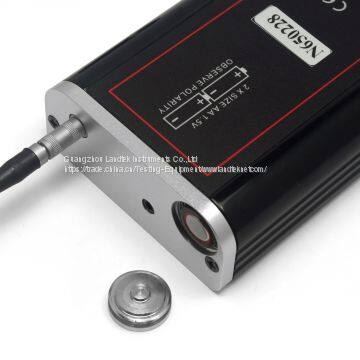

Power supply | 2 x 1.5 V AA size (UM-3) battery |
Dimension | 130 x 76 x 31 mm |
Weight | 340 g (Not Including Batteries) |
Measuring and Converting Ranges | ||||||||
Material | HL | HRC | HRB | HB | HS | HV | ||
30D2 | 10D2 | |||||||
1 | Steel & Cast Steel | 300~900 | 20.0~68.0 | 38.4~99.5 | 80~647 | 32.5~99.5 | 80~940 | |
2 | C. W. Tool Steel | 300~840 | 20.4~67.1 | 80~898 | ||||
3 | ST. STEEL | 300~800 | 19.6~62.4 | 46.5~101.7 | 85~655 | 80~802 | ||
4 | Gray Cast Iron | 360~650 | 93~334 | |||||
5 | Nodular Cast Iron | 400~660 | 131~387 | |||||
6 | Cast Aluminum | 174~560 | 20~159 | |||||
7 | Brass | 200~550 | 13.5~95.3 | 40~173 | ||||
8 | Bronze | 300~700 | 60~290 | |||||
9 | Copper | 200~690 | 45~315 |
Standard Accessories:
1. Main Unit
2. Standard Test Block

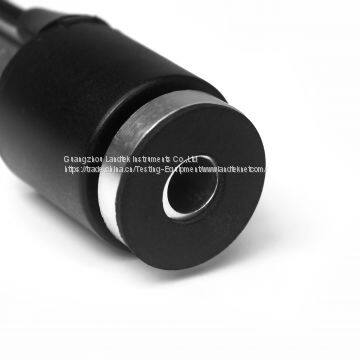

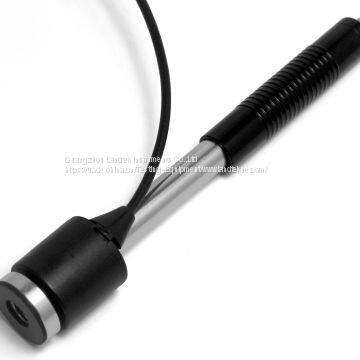

3. Measurement Sensor
4. Carrying Case
5. Operation Manual
6. Small Support Ring
7. Cleaning brush
Optional Accessories:
1. Impact Body
2. Support Rings set
3. USB, RS-232C data cable with software
