Applications:
Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuring areas for large-scale work piece.
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.
| Display | 12.5 mm LCD with back light |
| Materials | 9 different common materials |
| Measuring range | 200 ~ 900 HLD |
| Accuracy | Display error ± 0.8 % |
| Repeatability | ± 0.8 % |
| Conversion | HL-HRC-HRB-HB-HV-HSD |
| Memory | 50 data can be stored and re-readable |

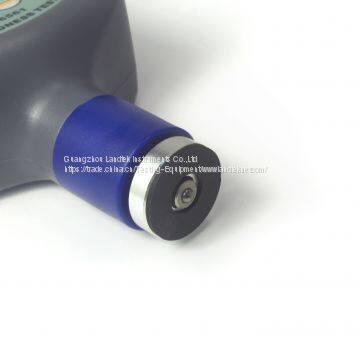

| Impact device | D Will handle, Weight: 75g |
| Storage temperature | -30 ~ +60 ℃ |
| Working Conditions | Temperature: -10 ~ +50 ℃ Humidity: ≤ 90 % |
| Power supply | 2 x 1.5 V AAA size (UM-4) battery |
| Dimension | 146 × 65 × 36 mm |
| Weight | 130 g (not including batteries) |
| Measuring and Converting Ranges | ||||||||
| Material | HL | HRC | HRB | HB | HS | HV | ||
| 30D2 | 10D2 | |||||||
| 1 | Steel & Cast Steel | 300~900 | 20.0~68.0 | 38.4~99.5 | 80~647 | 32.5~99.5 | 80~940 | |
| 2 | C. W. Tool Steel | 300~840 | 20.4~67.1 | 80~898 | ||||
| 3 | ST. STEEL | 300~800 | 19.6~62.4 | 46.5~101.7 | 85~655 | 80~802 | ||
| 4 | Gray Cast Iron | 360~650 | 93~334 | |||||
| 5 | Nodular Cast Iron | 400~660 | 131~387 | |||||
| 6 | Cast Aluminum | 174~560 | 20~159 | |||||
| 7 | Brass | 200~550 | 13.5~95.3 | 40~173 | ||||
| 8 | Bronze | 300~700 | 60~290 | |||||
| 9 | Copper | 200~690 | 45~315 | |||||
Standard Accessories :
1. Main Unit
2. Standard test block

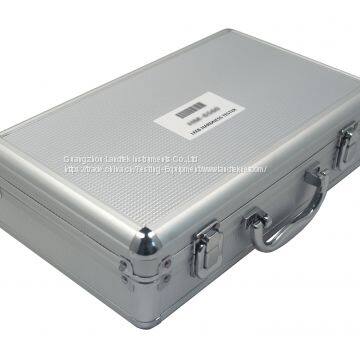

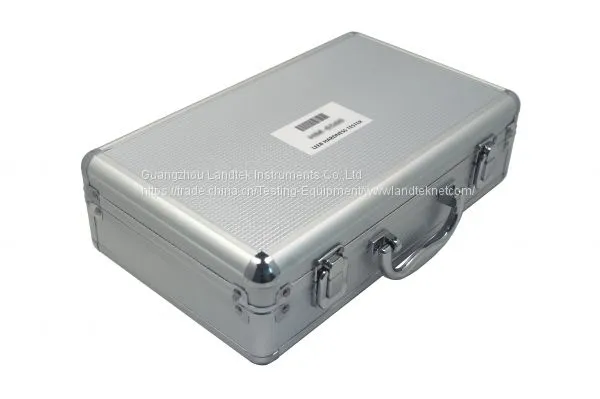

3. Carrying Case(B09)
4. Operation manual
5. Small Support Ring
6. Cleaning brush
Optional Accessories:
1. Impact Body
2. Support Rings Set
3. USB, RS-232C data cable with software
4. Bluetooth data out put with software
