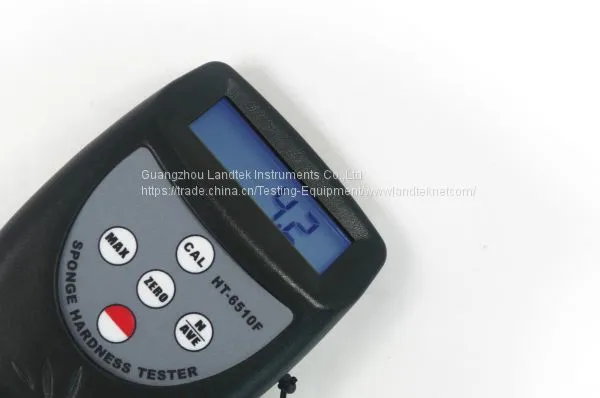

Digital Foam Hardness Tester HT-6510F
- 2000 Piece / Pieces per Month
- Guangzhou
- T/T PayPal Other
- 3 days
Product Details
Brand Name: | Landtek | Place of Origin: | China | Model Number: | HT-6510F |
Usage: | Hardness Tester |
Product Description
Applications:
Model HT6510F is suitable for the hardness measurement of sponge.
* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
Parameters Displayed | Hardness Result, Average Value, Max. Value |
Measurement Range | 0~100 HF |
Measurement Deviation | <1 HF |
Resolution | 0.1 HF |
Spring Force | 455 gf |
Sensor Head Diameter | 25mm |
Sensor Foot Diameter | 80mm |
Auto Switch Off | |
Battery Indicator | Low Battery Indicator |
Operating Conditions | Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH |
Power Supply | 4 x 1.5 V AAA Size (UM-4) Battery |
Dimensions | 162 x 80 x 80 mm (6.4 x 3.1 x 3.1 inch) |
Weight | 490 g(Not Including Batteries) |

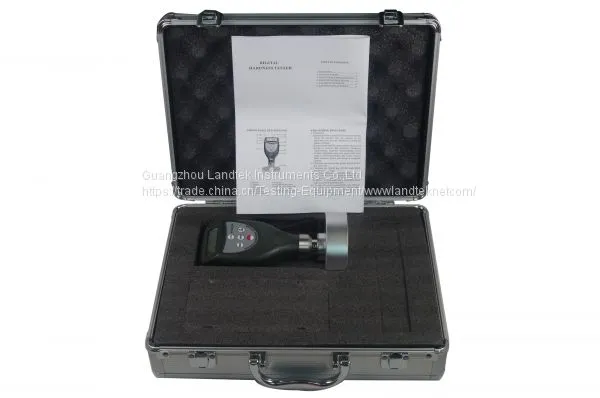

Standard Accessories
1. Main Unit

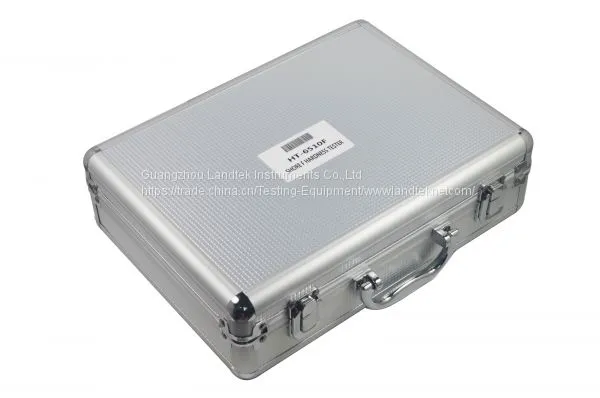

2. Carrying Case
3. Operation Manual
Optional Accessories
1. Shore Hardness Tester Measurement Stand
2. Rubber Hardness Test Block (A / D Type )
3. USB, RS-232C data cable with software
4. Bluetooth data out put with software
Model Informations:
Model | Indenter | Tested Materials | Hardness Value |
A | 0.79 Truncated (Frustum) Cone | Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc. | 20 ~ 90 A |
B | R 0.1 Cone | Middle Hard Rubber Materials, Typewriter Rollers, etc. | Above 90 A, Below 20 D |
C | 0.79 Truncated (Frustum) Cone | Plastics and Middle Hard Rubber Materials | Above 90 B, Below 20 D |
D | R 0.1 Cone | Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc. | Above 90 A |
DO | R 1.2 Spherical Radius | Plastics and Middle Hard up to Hard Rubber Materials | Above 90 C, Below 20 D |
O | R 1.2 Spherical Radius | Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon | Below 20 DO |
OO | R 1.2 Spherical Radius | Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials | Below 20 O |
E | R 2.5 Spherical Radius | Hard Sponge, EVA | Above 90 DO, Below 20 D |
We pay the most attention on the products,including the quality of material , accessories and aftersale sevice.We perfer to produce with high cost to maintained the
reputation we have since our company established in 2002,rather than ues the low cost material in market to produce the inferior product.
