Shore Hardness Tester HT-6510E ASK-C(new)

Name: Shore Hardness Tester HT-6510E ASK-C(new)
Brand: Landtek
SKU: 145690036
Availability: InStock

Guangzhou Landtek Instruments Co.,Ltd

US$ 120 - 200 MOQ: 1 Piece

Key Specifications

Brand Name:

Landtek

Place of Origin:

China

Model Number:

HT-6510E

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

3 days

Brand Name Landtek

Place of Origin China

Model Number HT-6510E

Applications: Model HT-6510E is suitable for soft materials such as Foam and Sponge.

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

* With average calculate function.

* Peak value deposit function.

* Under-voltage alarm function.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.

Parameters Displayed	Hardness Result, Average Value, Max. Value
Measurement Range	10~90 HE
Measurement Deviation	<1 H
Resolution	0.1 H
Auto Switch Off
Battery Indicator	Low Battery Indicator
Operating Conditions	Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH
Power Supply	4 x 1.5 V AAA Size (UM-4) Battery
Dimensions	162 x 65 x 28 mm
Weight	170 g(Not Including Batteries)

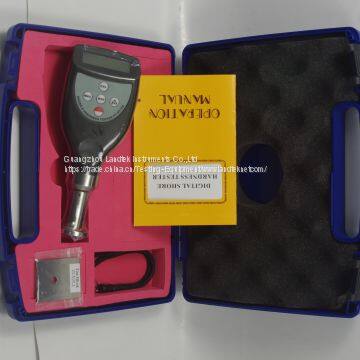

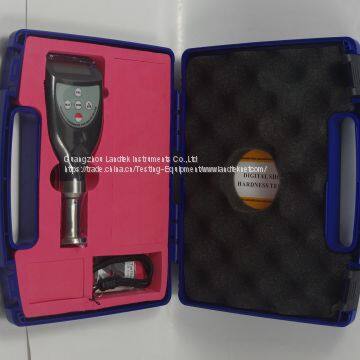

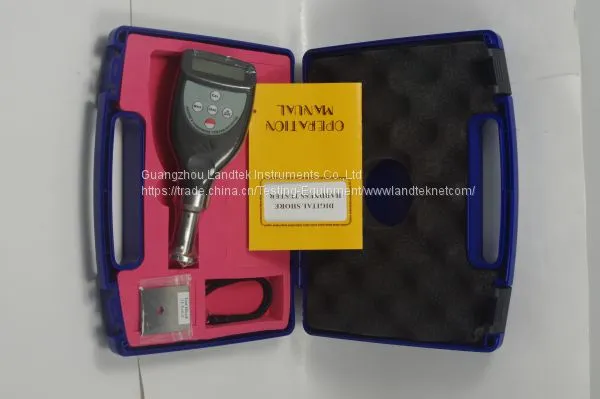

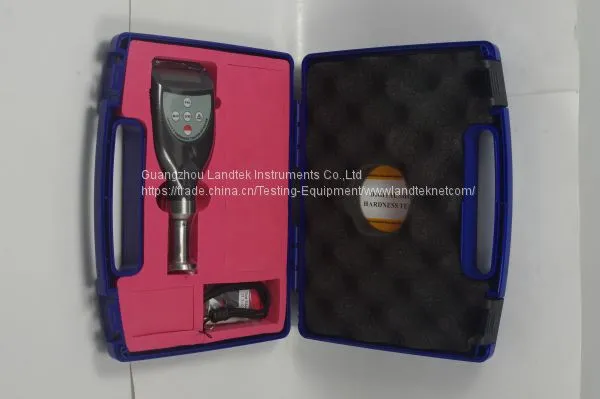

Standard Accessories

1. Main Unit

2. Carrying Case

3. Operation Manual

4. Pin Length Test Block

Optional Accessories

1. Shore Hardness Tester Measurement Stand

2. Rubber Hardness Test Block (A / D Type )

3. USB, RS-232C data cable with software

4. Bluetooth data out put with software

Model Informations:

Model	Indenter	Tested Materials	Hardness Value
A	0.79 Truncated (Frustum) Cone	Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.	20 ~ 90 A
B	R 0.1 Cone	Middle Hard Rubber Materials, Typewriter Rollers, etc.	Above 90 A, Below 20 D
C	0.79 Truncated (Frustum) Cone	Plastics and Middle Hard Rubber Materials	Above 90 B, Below 20 D
D	R 0.1 Cone	Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.	Above 90 A
DO	R 1.2 Spherical Radius	Plastics and Middle Hard up to Hard Rubber Materials	Above 90 C, Below 20 D
O	R 1.2 Spherical Radius	Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon	Below 20 DO
OO	R 1.2 Spherical Radius	Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials	Below 20 O
E	R 2.5 Spherical Radius	Hard Sponge, EVA	Above 90 DO, Below 20 D
