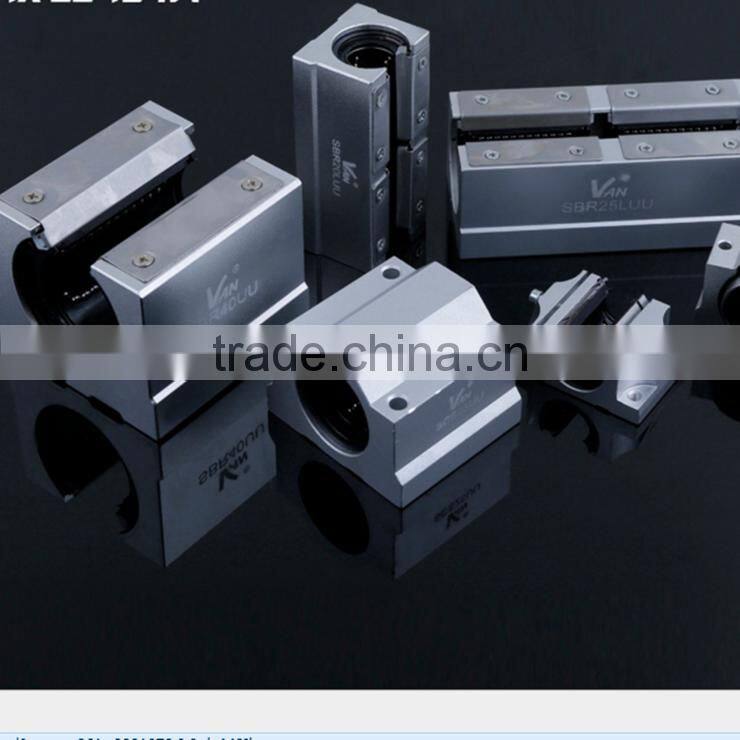

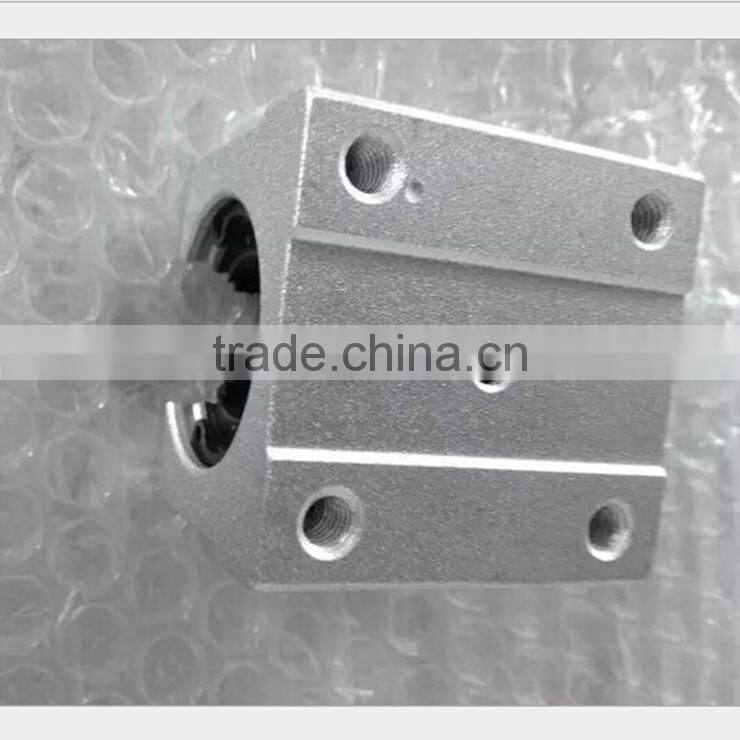

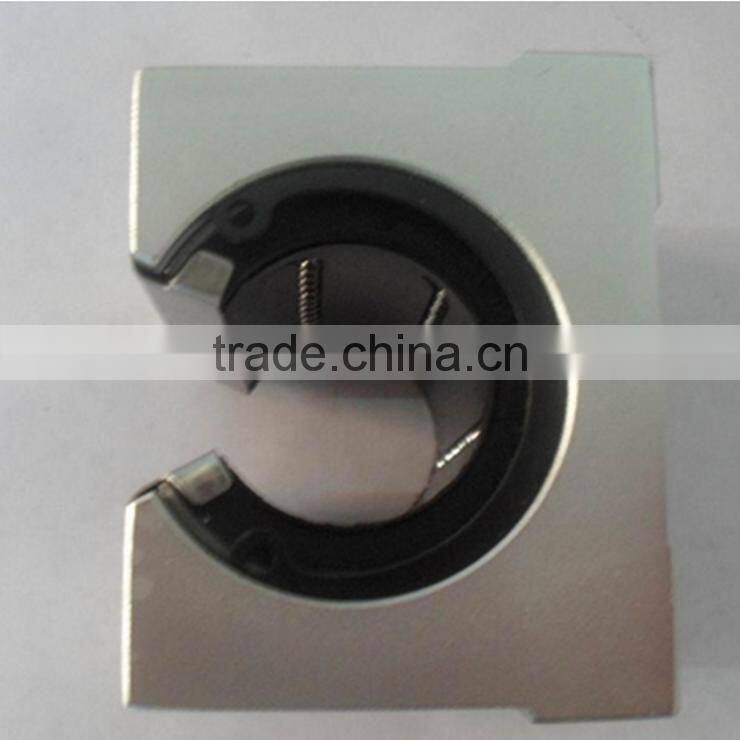

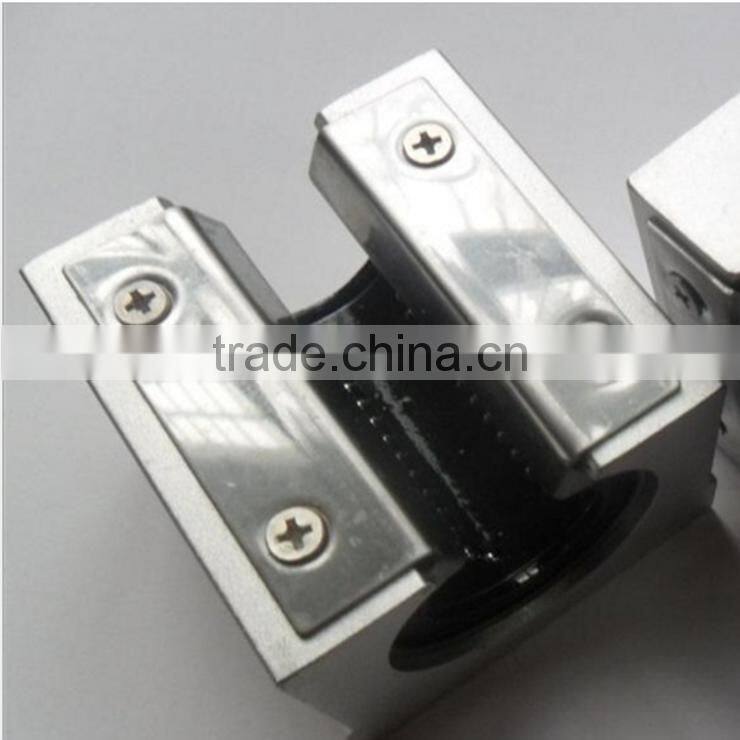

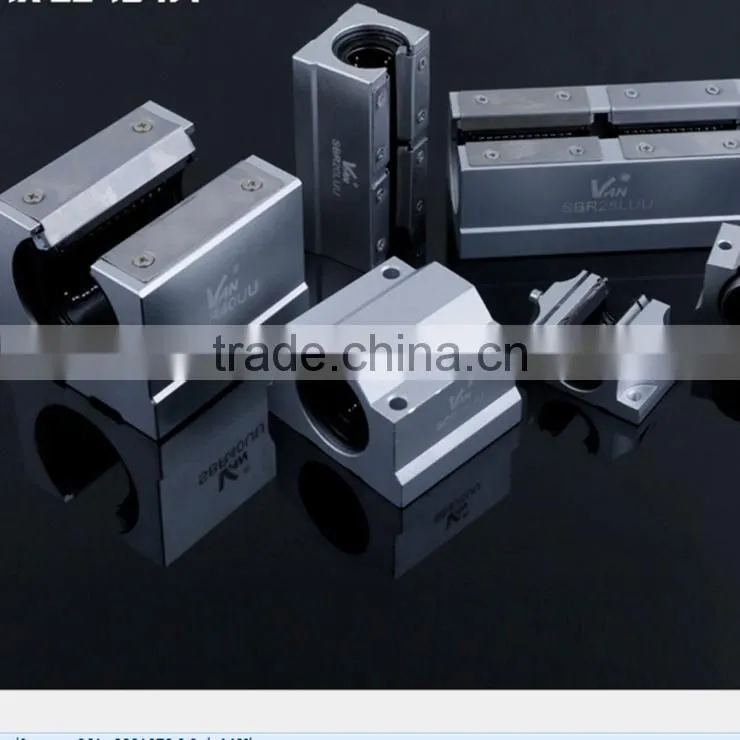

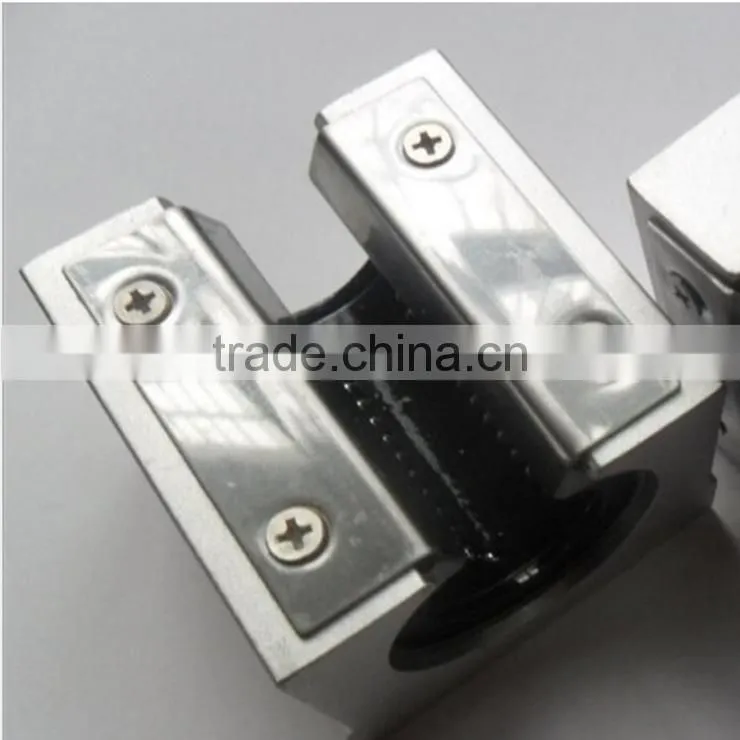

Wholesale Low Price Linear Rail Cage SBR50UU for 3D Printer
We NTL offer full range of SBR series linear guide and linear blocks: SBR10UU, SBR13UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR40UU, SBR50UU.
Introduction
1. SBR/TBR Cylindrical linear guide rail is composed of the aluminium case, a rail support, a shaft (rail), and number of blocks.
2. They are provided as a unit or as respective components as well.
3. All components are standardized to be fully interchangable.
4. This is the complete sliding unit systems and can be clamped simply tightening by bolt with high accuracy.
5. Support Rail Unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.
Application
Linear Guide rail TBR/SBR Series with smooth serface, little friction,low noise,they are widely used in linear motion system.For example, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, Food Packing Machine, other sliding parts on industrial machinery.
Datasheet
| Model | h | E | W | L | F | h1 | B | C | S | L1 | T | Used | Mass |
| with | (g) | ||||||||||||
| SBR10UU | 15 | 18 | 36 | 32 | 24 | 6 | 25 | 20 | M5 | 10 | 7 | LM10UU OP | 65 |
| SBR13UU | 17 | 20 | 40 | 39 | 27.6 | 8.5 | 28 | 28 | M5 | 10 | 8 | LM13UU OP | 100 |
| SBR16UU | 20 | 22.5 | 45 | 45 | 33 | 10 | 32 | 30 | M5 | 12 | 9 | LM16UU OP | 150 |
| SBR20UU | 23 | 24 | 48 | 50 | 39 | 10 | 35 | 35 | M6 | 12 | 11 | LM20UU OP | 200 |
| SBR25UU | 27 | 30 | 60 | 65 | 47 | 11.5 | 40 | 40 | M6 | 12 | 14 | LM25UU OP | 450 |
| SBR30UU | 33 | 35 | 70 | 70 | 56 | 14 | 50 | 50 | M8 | 18 | 15 | LM30UU OP | 630 |
| SBR35UU | 37 | 40 | 80 | 80 | 63 | 16 | 55 | 55 | M8 | 18 | 18 | LM35UU OP | 925 |
| SBR40UU | 42 | 45 | 90 | 90 | 72 | 19 | 65 | 65 | M10 | 20 | 20 | LM40UU OP | 1330 |
| SBR50UU | 53 | 60 | 120 | 110 | 92 | 23 | 94 | 80 | M10 | 20 | 25 | LM50UU OP | 3000 |
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
FAQ
1. Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
2. Will you send me free sample?
Yes
3. Could you accept OEM and customization?
YES, we can customize for you according to sample or drawing.
4. Is it your company factory or Trade Company?
We have our own factory and you welcome to come and visit.
5. Do your factory have CE?
Yes, we have ISO 9001, If you want other CE, we can do for you.
6. Could you tell me the packing of your goods?
Single plastic bag—put in single box—put in carton or wooden case—at last packing in pallet.
7. Could you tell me the payment term of your company can accept?
We accept the TT, Pyapal, Western union, alibaba. The custome can choose the way to delivery their goods by sea or Air. We will do our best to serve our customers.
8. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
9. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more.
