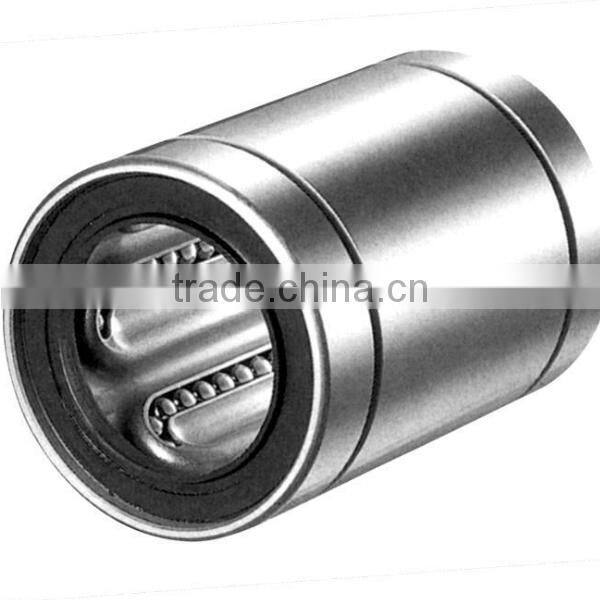

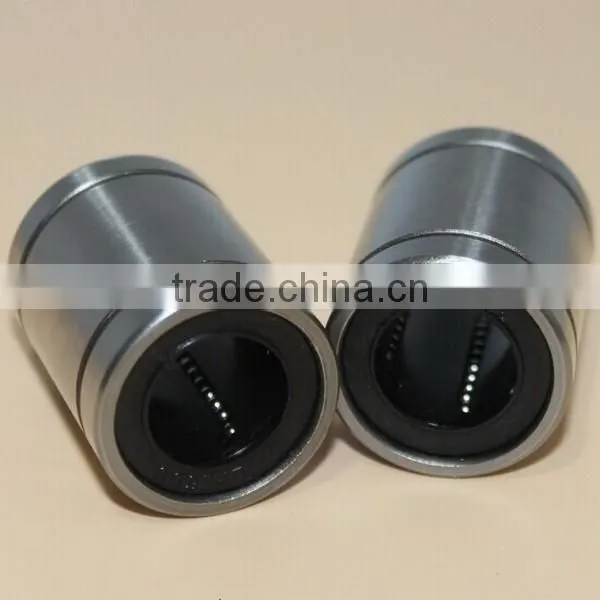

High precision guides linear bearing lm8uu
1. Maintenance-free,Drying working,noiseless;
2.Suitable for long-time running in dusty environments;
3.Corrosion resistance;Cleaning with disinfectant lotion;
4.Inclined groove designation provides better protection to the shaft;
5.Narrowed groove improves the load capacity;
6.Easy installation and replacement;
7.Suitable for lightweight design.
(1) Motion bearings

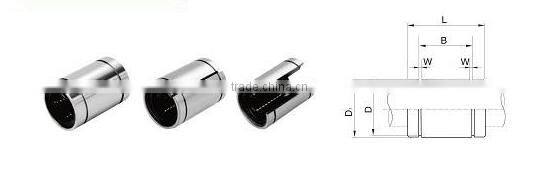

Linear motion bearings is a linear motion system at low cost production, for unlimited travel used with cylindrical shaft. Because point contact ball bearing with shaft, so using the load is small. Steel ball with minimal friction spinning, which can obtain high precision of smooth movement. Linear motion bearings metric and inch series: standard (LM/LME/LMB.. UU), gather (LM/LME.. UUAJ) and open (LM/LME.. UUOP); The stretched (LM/LME.. LUU); Flange type (LMF LMK/LMH.. UU, LMEF/LMEK. UU), flange (xl (LMF/LMK/LMH.. LUU, LMEF/LMEK. LUU) among assembly flange type (LMFC LMKC), with leading end flange (LMF - E/LMK - E), simple, OB since embellish, KH LMC/LMG open rack straight line slide block, etc.
(2) Sliding bearing
In the rolling bearing, bearing ring by rolling unit (roller), separately in the sliding guide system, movable part in static sliding guide rail or shaft. According to the type of rail system, sliding layer on the portable or rigid good components. Embedded lubricating oil lubricating sliding layer to to achieve. INA linear sliding bearing is endless stroke length linear bearings. The linear guidance system may be a miniature sliding guide system, Permaglide linear sliding bearings and Permaglide linear sliding shaft bearing unit and tablet guidance system. Miniature sliding guide system includes a guide/slider sliding layer system and no maintenance, Permaglide linear sliding bearing unit is the installation of a low maintenance requirements in light metal circles Permaglide bushing. Tablet guidance system is low maintenance requirements of sliding layer on the guide rail guiding system.
Maintenance:
Clean the bearing will be removed check, use methods such as taking pictures first recorded appearance. In addition, to confess the residual amount of lubricant and lubricant sampling, and then clean the bearing. Examination and distinguish to distinguish can remove the bearings from scratch using, check on the accuracy for the standard, rotating accuracy, internal clearance and collaboration, raceway surface, insist on frame and seal rings etc. About the inspection effect that can be used by bearing or known bearing. Sentenced to standard according to the mechanical function and importance as well as other inspection cycle, etc. If you have the following injury, bearing shall not be applied from scratch, it is necessary to exchange.
if you are interested in our products, feel free to contact with me:
Attn: connie
email:connie at
whatsapp:+8615073676619
wechat:empty919
