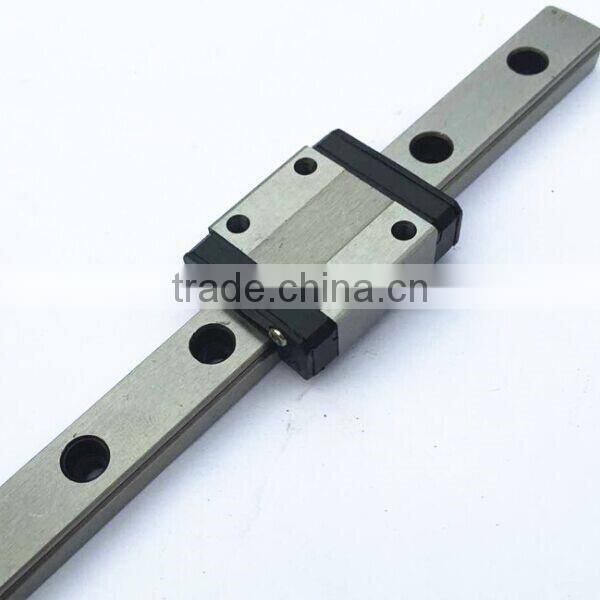

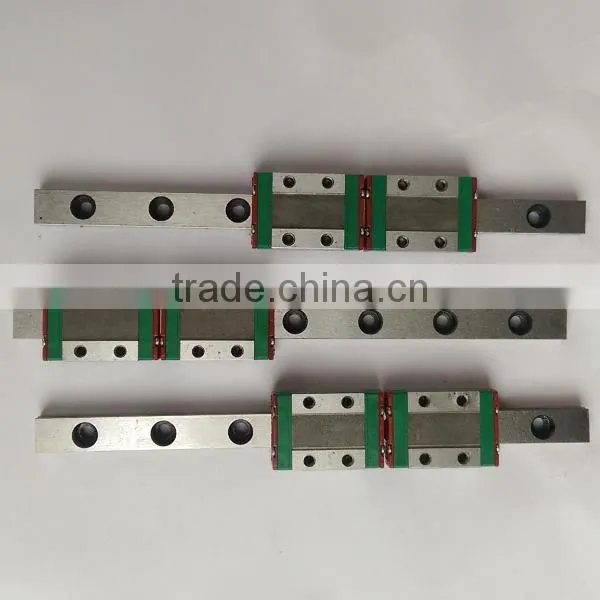

Miniature cnc linear guide MGN15C

1. Work precision
The linear rolling guide motion to realize, not only sliding friction coefficient down to 1/50 seconds slideway, dynamic scattering, static friction resistance small, gap also become to realize smooth movement, reduce impact and vibration, not easy the creation bears the creep phenomenon, um level can achieve feeding and positioning accuracy, to improve the response speed and sensitivity of nc coefficient.

2. Drive rate cuts
As friction when small linear guide is exercise, only request small power, can exercise, obviously, greatly machine production process of energy consumption, because of friction heat rarely is suitable for high-speed, frequent start-up and offset the motion component.

3. Lubrication simple structure

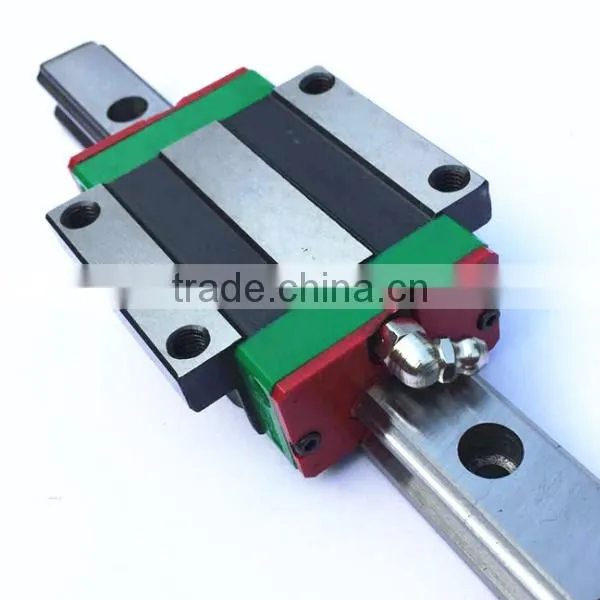

Linear guide the slider, with note oil cup, can be directly note oil injection, can also link to grease the automatic injection machine oil lubrication, make its wear down to less time to stay pure, long held.

4. Dustproof, sealing ability
Linear guide dustproof performance is good, the slider and cover both ends of the bottom can choose seal negative, meanwhile slippery course screw holes and dustproof, prevent the accumulation of dust cover screw holes, thus ensuring the life and product performance.

5. Easy installation, easy exchange
Due to the precision machining technology, slippery course linear degree is high, the installation of screw holes in slippery course, convenient installation error less respectively, linear guide interchangeable, replacing the slider or the slider even linear guide, can make to achieve high precision machines.

6. Bearing capacity and rigidity is strong
Linear guide using gothic four-point contact design, reasonable ratio of arc groove, not only the contact stress of small, bearing capacity and stiffness relative v-shaped plane ball contact also rises greatly. Because of the copper ball through the symmetrical beam system, while four in every direction, and the load, and almost no offset phenomenon, therefore can keep rigid stronger precision.

If you need this , welcome to contact me to get more details.

Changsha Terry Machinery Co.,Ltd

Attn:  Connie

E-mail: connie at

What'sApp: +8615073676619

wechat:empty919
