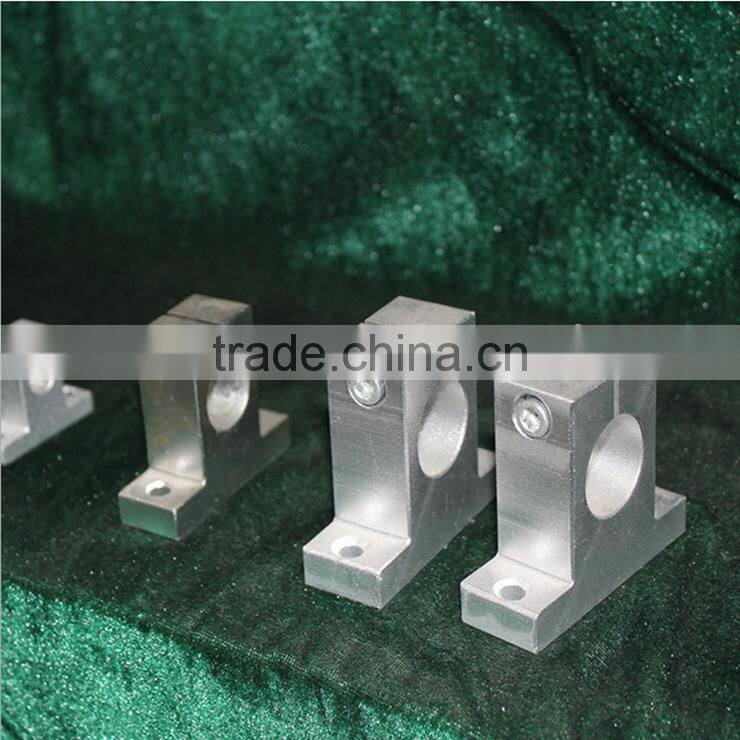

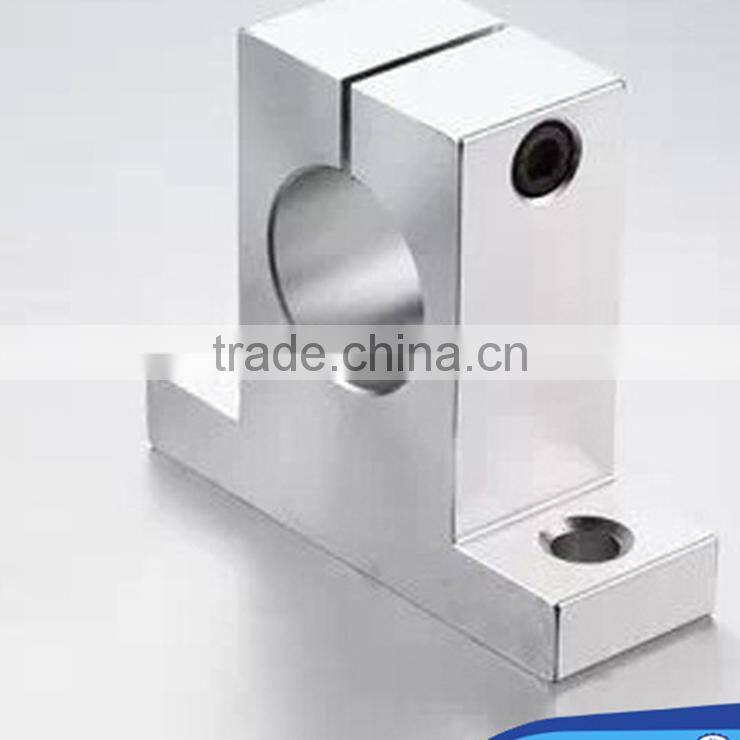

SK3 linear shaft support for CNC machine
Feature
1. The slide unit series is made of slide bearing and shaft supporters.
2. These slide units are mainly made of aluminum, providing high corrosion resistance, easy installation
Application
Support is widely used in the automatic transmission device.
Datasheet
Slide Unit SK Type | ||||||||||||||
| Part No. | Shaft diameter | Main dimensions (mm) | Clamping bolt designation | Mounting bolt designation | Weight (g) | |||||||||
| h | G | A | B | C | E | F | R | S | T | |||||
| SK-8 | 8 | 20 | 21 | 42 | 14 | 33 | 6 | 18 | 32 | 5 | 5.5 | M4 | M5 | 24 |
| SK-10 | 10 | 20 | 21 | 42 | 14 | 33 | 6 | 18 | 32 | 5 | 5.5 | M4 | M5 | 24 |
| SK-12 | 12 | 23 | 21 | 42 | 14 | 38 | 6 | 20 | 32 | 5 | 5.5 | M4 | M5 | 30 |
| SK-13 | 13 | 23 | 21 | 42 | 14 | 38 | 6 | 20 | 32 | 5 | 5.5 | M4 | M5 | 30 |
| SK-16 | 16 | 27 | 24 | 48 | 16 | 44 | 8 | 25 | 38 | 5 | 5.5 | M4 | M6 | 40 |
| SK-20 | 20 | 31 | 30 | 60 | 20 | 51 | 10 | 30 | 45 | 7.5 | 6.6 | M5 | M6 | 70 |
| SK-25 | 25 | 35 | 35 | 70 | 24 | 60 | 12 | 38 | 56 | 7 | 6.6 | M6 | M6 | 130 |
| SK-30 | 30 | 42 | 42 | 84 | 28 | 70 | 12 | 44 | 64 | 10 | 9 | M6 | M8 | 180 |
| SK-35 | 35 | 50 | 49 | 98 | 32 | 82 | 15 | 50 | 74 | 12 | 11 | M8 | M10 | 270 |
| SK-40 | 40 | 60 | 57 | 114 | 36 | 96 | 15 | 60 | 90 | 12 | 11 | M8 | M10 | 420 |
| SK-50 | 50 | 70 | 63 | 126 | 40 | 120 | 18 | 74 | 100 | 13 | 14 | M12 | M12 | 750 |
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
FAQ
1. Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
2. Will you send me free sample?
Yes
3. Could you accept OEM and customization?
YES, we can customize for you according to sample or drawing.
4. Is it your company factory or Trade Company?
We have our own factory and you welcome to come and visit.
5. Do your factory have CE?
Yes, we have ISO 9001, If you want other CE, we can do for you.
6. Could you tell me the packing of your goods?
Single plastic bag—put in single box—put in carton or wooden case—at last packing in pallet.
7. Could you tell me the payment term of your company can accept?
We accept the TT, Pyapal, Western union, alibaba. The custome can choose the way to delivery their goods by sea or Air. We will do our best to serve our customers.
8. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
