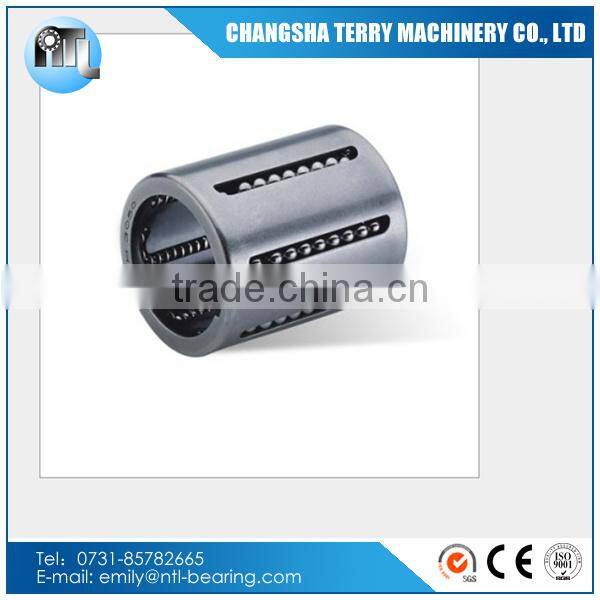

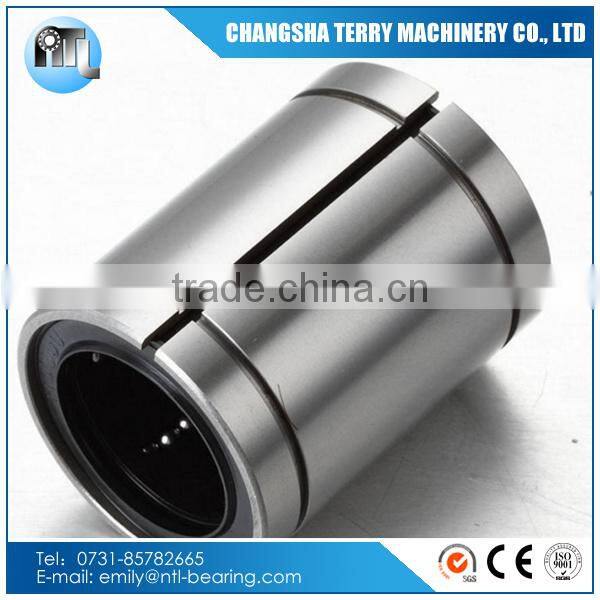

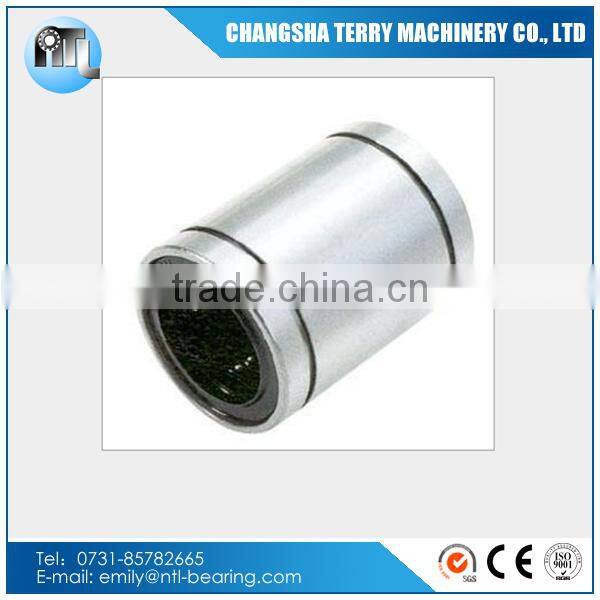

16*28*37 mm LM16OP Linear motion bearing for CNC Machine
Features
The ferrule of linear bearing have two kinds of material: Gcr15 (SUJ2) chrome steel and 9Cr18 (SU440C) stainless steel.
Retainer have three kinds of material: POM engineering plastic, low carbon steel and stainless steel, rubber seal made up of NBR nitrile butadiene rubber,
The steel seal have two kinds of material: 65Mn spring steel and stainless steel, the ferrule of KH series is made from of carbonitriding of low carbon steel.
Introduction
"LM" metric standard type linear bearing
"LME" means inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" means open type linear bearing
"AJ" means adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
Application
Linear bearing are most widely-used in Axis machine tools, presses , tool grinder, automatic gas cutting machine, printer, card sorting machines, food packaging machines and other industrial machinery sliding parts,Electronic aid, tension tester, digitized three-dimensional coordinate measurement system, and slide unit of multi-spindle, machine, punch, etc.
Datasheet
| Model No. | Dimensions(mm) | Basic load rating(N) | Weight | ||||||
| NUMBER OF BALL ROWS | dr | D | L | B | Dynamic C | Static C0 | (G) | ||
| LM10 | LM10OP | 3 | 10 | 19 | 29 | 22 | 373 | 549 | 23 |
| LM12 | LM12OP | 3 | 12 | 21 | 30 | 23 | 412 | 598 | 25 |
| LM13 | LM13OP | 3 | 13 | 23 | 32 | 23 | 510 | 784 | 34 |
| LM16 | LM16OP | 4 | 16 | 28 | 37 | 26.5 | 775 | 1180 | 52 |
| LM20 | LM20OP | 4 | 20 | 32 | 42 | 30.5 | 863 | 1370 | 69 |
| LM25 | LM25OP | 5 | 25 | 40 | 59 | 41 | 980 | 1570 | 188 |
| LM30 | LM30OP | 5 | 30 | 45 | 64 | 44.5 | 1570 | 2750 | 210 |
| LM35 | LM35OP | 5 | 35 | 52 | 70 | 49.5 | 1670 | 3140 | 335 |
| LM40 | LM40OP | 5 | 40 | 60 | 80 | 60.5 | 2160 | 4020 | 500 |
| LM50 | LM50OP | 5 | 50 | 80 | 100 | 74 | 3820 | 7940 | 1340 |
| LM60 | LM60OP | 5 | 60 | 90 | 110 | 85 | 4710 | 10000 | 1610 |
| LM80 | LM80OP | 5 | 80 | 120 | 140 | 105.5 | 7350 | 1600 | 3650 |
| LM100 | LM100OP | 5 | 100 | 150 | 175 | 125.5 | 14100 | 34800 | 7200 |
| LM120 | LM120OP | 6 | 120 | 180 | 200 | 158.6 | 16400 | 40000 | 11600 |
| LM150 | LM150OP | 6 | 150 | 210 | 240 | 170.6 | 21100 | 54300 | 15700 |
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
FAQ
1. Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
2. Will you send me free sample?
Yes
3. Could you accept OEM and customization?
YES, we can customize for you according to sample or drawing.
4. Is it your company factory or Trade Company?
We have our own factory and you welcome to come and visit.
5. Do your factory have CE?
Yes, we have ISO 9001, If you want other CE, we can do for you.
6. Could you tell me the packing of your goods?
Single plastic bag—put in single box—put in carton or wooden case—at last packing in pallet.
7. Could you tell me the payment term of your company can accept?
We accept the TT, Pyapal, Western union, alibaba. The custome can choose the way to delivery their goods by sea or Air. We will do our best to serve our customers.
8. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
9. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more.
