Detailed Product Description
| Product Name: | Camera Link Cable | Sheath Material: | PVC |
| Range Of Application:: | Machine Vision Imaging | Type: | High Speed Data Cable |
| Conductor Material: | Copper | Conductor Type: | Solid |
| Material Shape: | Round Wire | 1meters: | 85MHz |

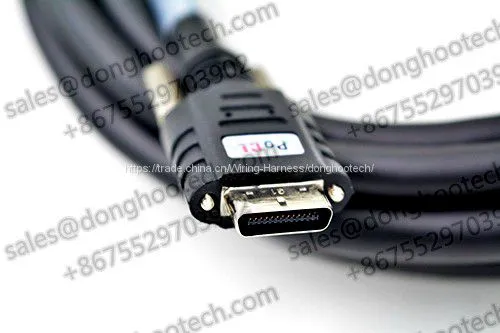

Mini Camera Link 2 Meter Standard Male MDR to Mini Male SDR Cable
Product Description:
Camera Link Cable, 2 Meter, Standard Male (MDR) to Mini Male (SDR)
Features:
Length: 2 meter
Connectors: Standard Male (MDR) to Mini Male (SDR)
Over molded connectors and thumbscrews for strain relief
High Flex Black Cable
Supports Power over Camera Link (PoCL)
Equivalent to CEI part #MVC-1-2-5-2M
compatiable with 3M Molding cables:
Shrunk Delta Ribbon (SDR) Cable Assembly, 1MD26-X5XX-00C-XXX Series
Shrunk Delta Ribbon (SDR) Cable Assembly, 1SD26-X1XX-00C-XXX Series
Shrunk Delta Ribbon (SDR) Cable Assembly, 1MF26-L560-00C-XXX
Shrunk Delta Ribbon (SDR) Cable Assembly, 1MF26-L5XX-00C-XXX
Shrunk Delta Ribbon (SDR) Cable Assembly, 1MG26-LFW0-00C-XXX
-
Shrunk Delta Ribbon (SDR) Cable Assembly, 1SF26-L1XX-00C-XXX
Camera Link cable connector connection type including:
MDR Male Straight Exit, MDR Female Straight Exit, MDR Male Low Profile R/A Exit UP, MDR Male Low Profile R/A Exit DWN, HDR / SDR Male Straight Exit, HDR / SDR Male R/A Exit UP w/Recessed Screws, HDR / SDR Male R/A Exit DOWN W/Recessed Screws, MDR Male Ext. Profile R/A Exit UP, MDR Male Ext. Profile R/A Exit DWN, MDR Male Exit RIGHT w/Recessed Screws MDR Male Exit LEFT w/Recessed Screws, HDR / SDR Female Straight Exit, 14P HDR / SDR PoCL Lite Straight Exit w/Recessed Screws, MDR Latch Type Straight Exit, HDR / SDR Male Exit RIGHT w/Recessed Screws, HDR / SDR Male Exit LEFT w/Recessed Screws, HDR / SDR Male R/A UPExt. Profile w/Recessed Screws, HDR / SDR Male R/A DWN Ext. Profile w/Recessed Screws.
Camera Link Cables - Used in very high speed data transmission, frame grabber interfaces, etc.
Male and female Camera Link cable assemblies
Quick release latches or High Quality Thumbscrews locking type available.
1meter to 15meters lengths available,Straight connection and Right angle available
Cables can be customized for unique requirements
High flex cable and standard cable available Incorporates 26-position 3M MDR connectors
