Specifications
multi-head cnc router1.hgih speed and cheap
2. water cooling spindle
3.Japan YASKAWA servo mode
4.CE
hot sale !! high efficiency and cheap China jinan high quality cnc multi-head engraving machine
Product Description
♦All machine heads can process at the same time ,can aslo work alone,many times increasing in efficiency .
♦Can also control the machine heads Independently,can use only one head to process and make increasing the working area .
♦Adopt German double-nut ballscrews ,imported square guide rail ,the adoption of the breakpoint memory,Guarantee in the accident (power off )or the next day can process.
♦Gantry movment,long time use no distortion,the more precise positioning accuracy .
♦Large cutting power not only to elaborately carved a jagged ,also smooth clear bottom .
♦Increase the efficiency when doing the complicated graph ;good coherence and high quality when batch processing;goog stability with the long time working and low error ratio .
♦Well compatibility in software;all kind of 3D and JD caving software .
♦Can make the quantity of the heads and the working area for the machine as per customer's request
Techinical parameters:

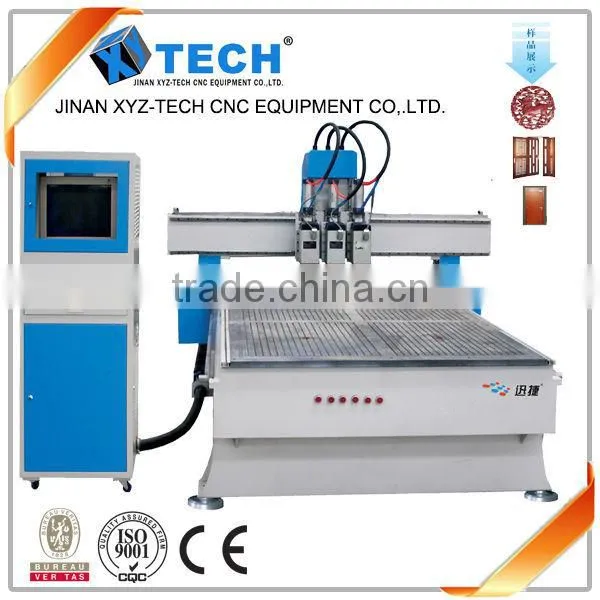

model multi-head cnc router
working travel x 260*6 y 2000mm z axis200mm
spindle rate 2.2kw*x water cooling spindle
operating system DSP operating system
table size 1550*3100mm
motor type stepper motor(optional servo motor)
driver leadshine driver(optional YAKO driver)

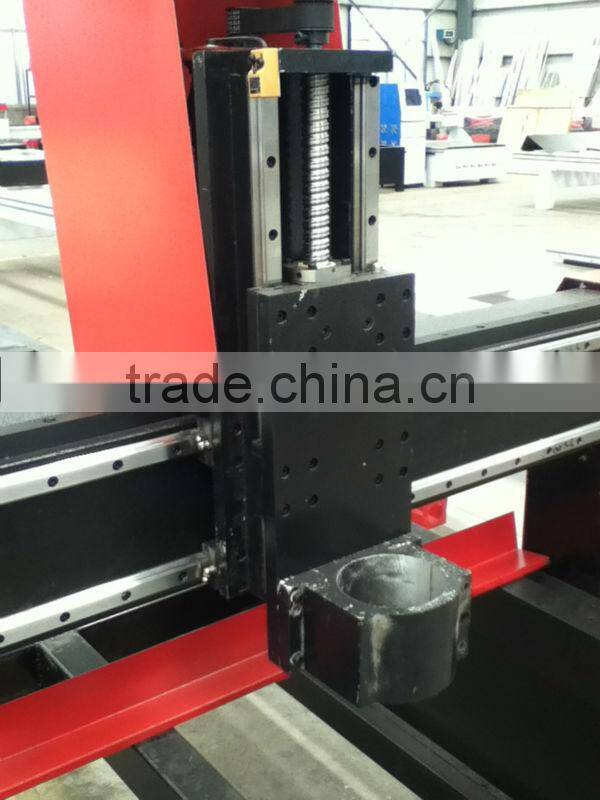

transmission xy by rack,z by screw

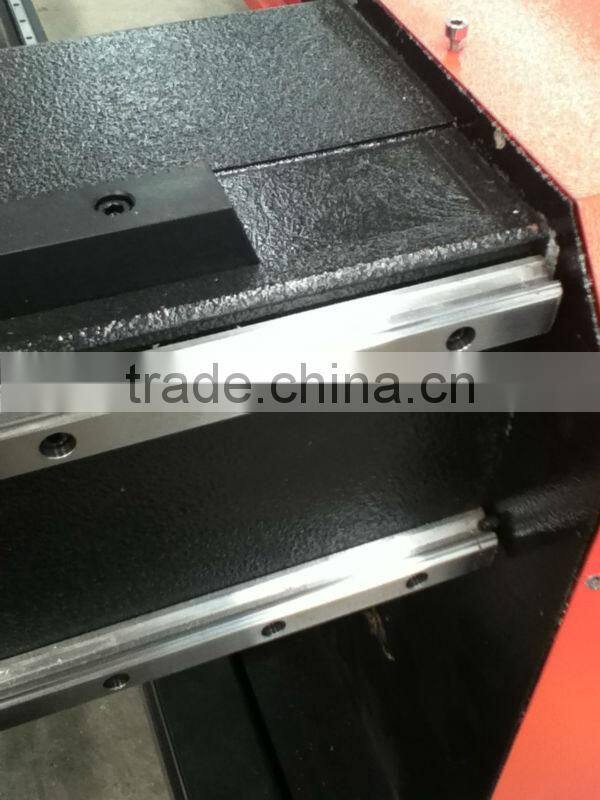

guide rail HIWIN square orbit(PMI guide rail)
inverter sunfar inverte(optional Delta inverter)
working -holding T-slot
interface 15pins
command code G code(*.uoo.*mmg*.plt)
process prescision +0.05mm
reposition precision +0.05mm
max feed =>17000mm/min
idle speed =>32000mm/min
Applicable industry and material :
Furniture :wooden doors,cabinets,plate ,office and wood furniture , tables, chairs ,doors and window .
The wood products :voice box,game cabinets,computer tables ,sewing machines table, instrument.
Plate processing :insulation parts,plastic chemical components,PCB,inner body of car ,bowling tracks,stairs,anti-bate board,epoxy resin,ABS,PP,PE,and other carbon mixed compounds .
Decorate industry :Acrylic ,PVC,MDF,artficial stone,organic glass,plastic and soft metals such as copper,aluminum plate engraving and milling process .
Our Services
1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk was included.
