Specifications
1.THK Linear track from JAPAN2.CE
3.high quality
4.water cooling or air cooling

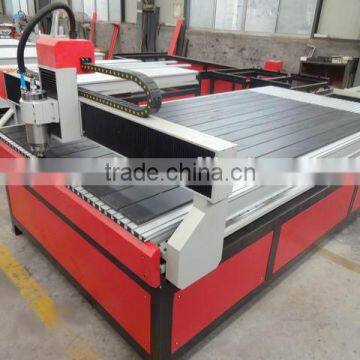

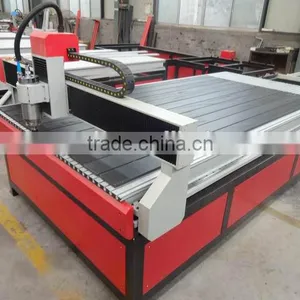

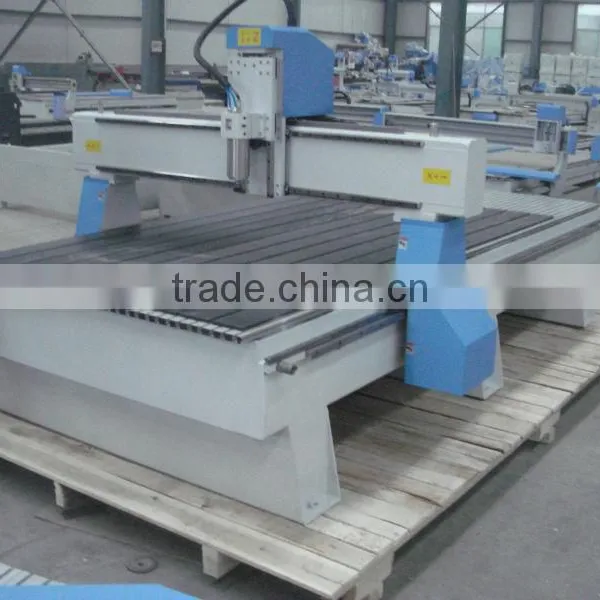

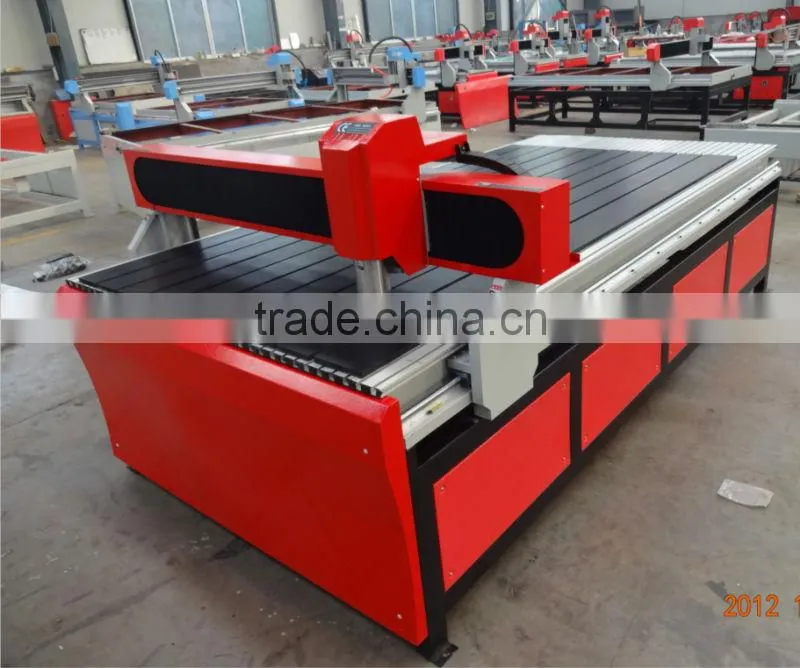

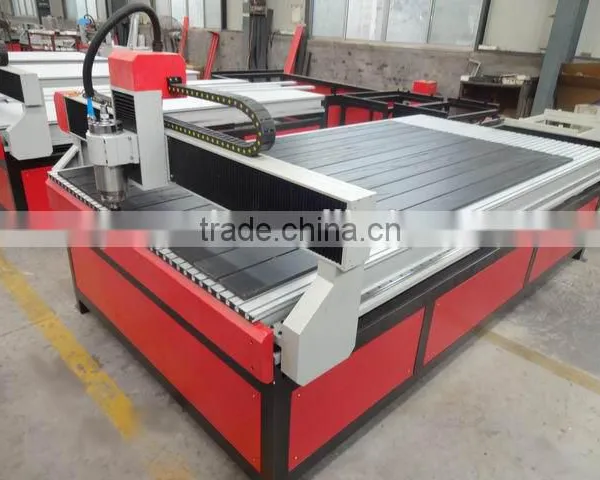

NEW CNC ROUTER FOR WOODWORKING
Application:
Applicable to process wooden products ,sign plate, acrylic cutting efficiently ,and also can process many
metal and non-metal materials such as iron, copper, aluminum ,plastic plate, wood etc. with following features: strong
functions ,convenient operation,
and reliable performance ,sturdy and durable in work.
main data:
MODEL XJ- 1325 CNC ROUTER
NO. Description Parameter
1 X,Y,Z Working Area 1300*2500*200mm
2 Table Size 1600*2650*1680MM
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z repositioning Positioning Accuracy ±0.02mm
5 Lathe Structure hard steel sturcture
6 X Structure high helical rackrail , THK linear rail from Japan
7 Y Structure high helical rackrail ,THK linear rail from Japan
8 Z Structure high helical rackrail ,THK linear rail from Japan
9 Max.Consume power about 7.0Kw
10 Max.Speed 0-30000mm/min
11 Max.Working Speed 0-25000mm/min
12 Spindle Power Motor ITALY ELTE5.6KW High speed air cooling spindle motor ,fast speed and high quality ,18000RPM
13 tools magazine none
14 Spindle Speed 0-18000RPM
15 Working Mode powerful China newest Hybrid servo driver
16 Working Voltage 380V/3 PHASE 50HZ/60Hz for standard machine, if optional vacuum system or servo system, it need 380V 3 phase
17 Command Code G code(*uoo,*nc,*mmg, *plt)
18 Operating System Adopt the most advanced FPGA Colored LCM controlling system ,it has 4GB inner memory,configure with a large USB flash disk can save many files
19 Interface Printer port 50pins or USB
20 system Memory 4GB inner side
21 Collet ER25(Φ3.175, Φ6,12.7mm CAN OPTIONAL )
22 X,Y Working Delicacy <0.01mm
23 Software Type3 software original from France
24 Running circumstance Temperature: 0°C~45°C
Relative humidity: 30%~75%
25 Packing Size 3440*2220*2000MM
26 Net Weight (KG) 1280
27 Gross Weight (KG) 1480
28 Optional device dust collector :USD400 Vacuum system USD2000, servo system(will use Panasonic servo motors and driver board) USD2500
29 Waranty One year
30 Delivery time 1 week after get total payment by T/T transfer
31 upgrade more wider and hard Aluminum table with high quality clamps ,X,Y Axis adopt auto eliminating clearance device, more accuracy ,oil lubrication system standard, ALL AXIS WITH DUST PAPER
Good news : this model now with newest China hybrid servo system standard on promotion ,welcome to infquiry .

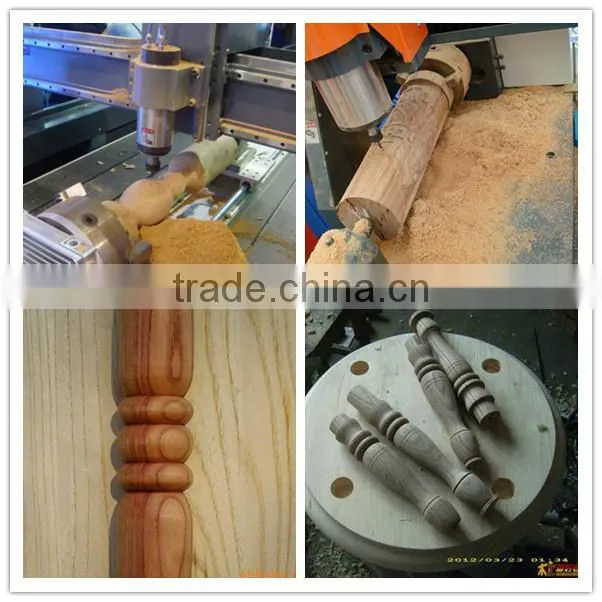

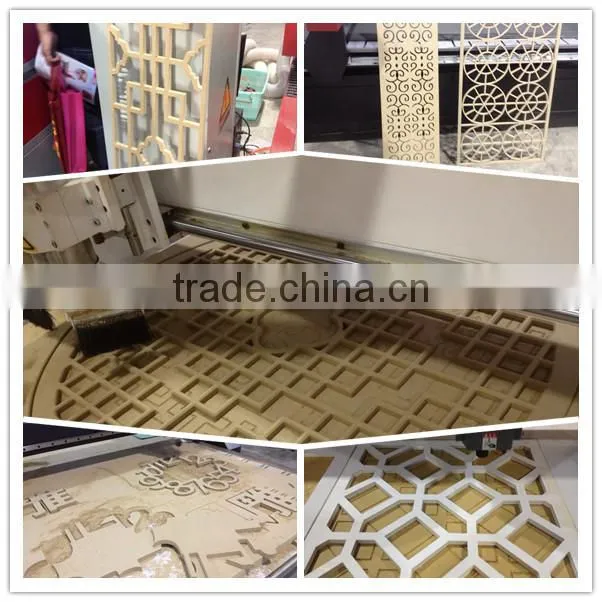

SAMPLE
