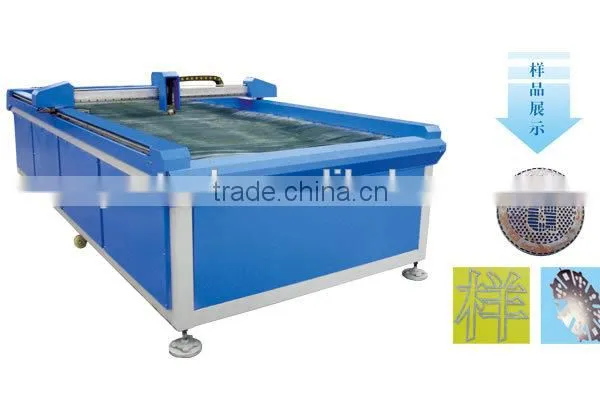

Help CenterCHINA JINAN XJ1318 Plasma Cutting Machine With CE ISO BV
Related Products
-
CHINA JINAN the XJ1325 Three Spindle CNC Router With CEUS$ 1,000 - 10,000MOQ: 1 Set -
Aluminum Accessories of 6090 Cnc RoutersUS$ 100 - 1,000MOQ: 1 Set
-
Hot Sale New Design Professional CO2 Laser Machine 300mm*500mmUS$ 3,000 - 8,000MOQ: 1 Set
-
Co2 Laser Machine for ClothingUS$ 3,000 - 8,000MOQ: 1 Set
-
40W/50W/60W Fiber Laser Machine Laser MachineUS$ 3,000 - 8,000MOQ: 1 Set
Specifications
The plasma cutting machine is used in the automobile industry, shipping industry, for motor covers, electronic components, etc.CHINA JINAN XJ1318 Plasma Cutting Machine With CE ISO BV
Features
1. By adopting aviation aluminum and integrated framework, the plasma cutting machine can be more stable.
2. It offers a gantry double drive structure, gear transmission without clearance, and high quality linear rail, ensuring high accuracy and fast speed.
3. It has a DSP controlling system with user friendly control panel to make it possible for the machine to operate off-line.
4. The plasma cutting machine is able to cut aluminum, steel and any other conductive metal in max speed 8000mm/min.
5. It is compatible with any design software.
6. It offers an imported high quality nozzle.
Application
The plasma cutting machine is used in the automobile industry, shipping industry, for motor covers, electronic components, etc.
Technical Parameters of the XJ1318 Plasma Cutting Machine
| Working area | 1300*1800mm (51.2*70.8 inch) |
| Cutting thickness | 0.5-15mm |
| Cutting speed | 0-8m/min |
| Moving speed | 0-50m/min |
| Power | 8.5KW-10.5KW |
| Input voltage | 3 phase 380V |
| Power frequency | 50Hz |
| Files transfer | USB interface |
| Arc | Untouched arc striking Arc pressure adjuster |
As a professional plasma cutting machine manufacturer based in China, XYZ-TECH also provides advertising CNC router, laser engraving machine, cutting plotter, three spindle CNC router, laser cutting machine, and much more.

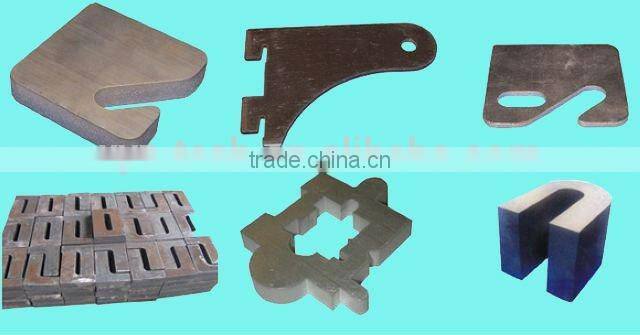

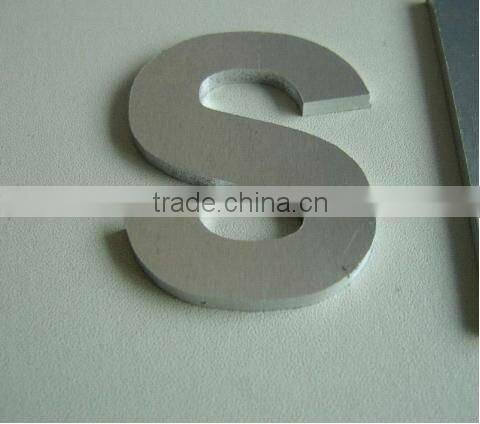

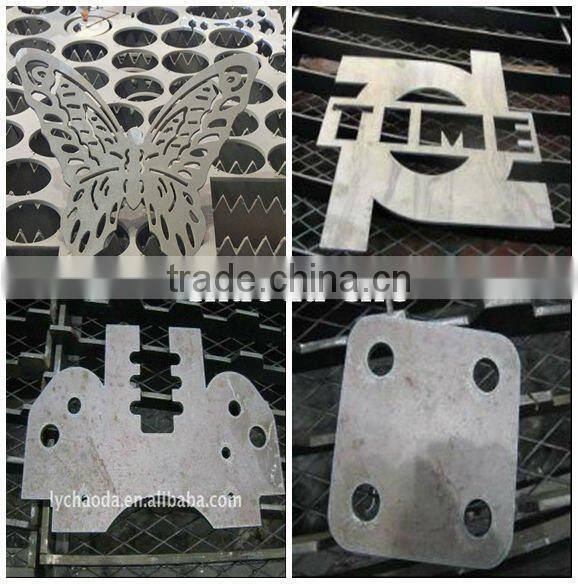

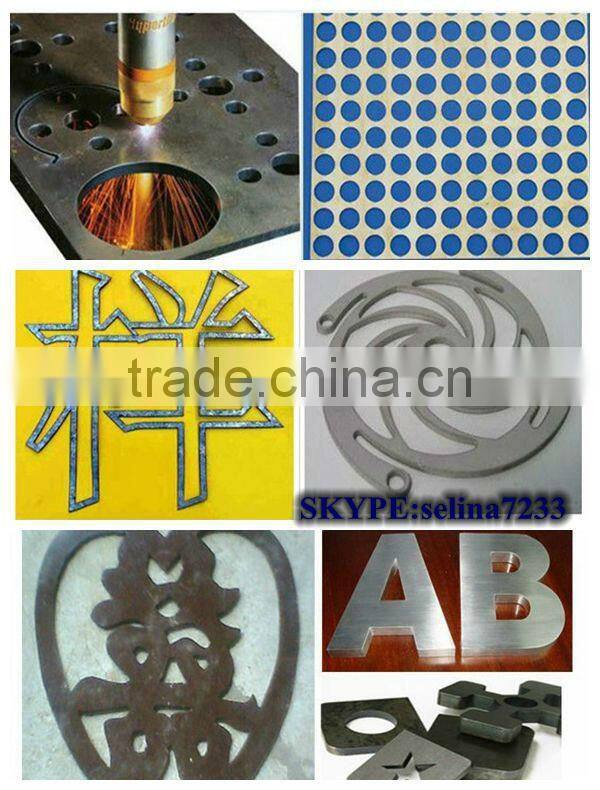

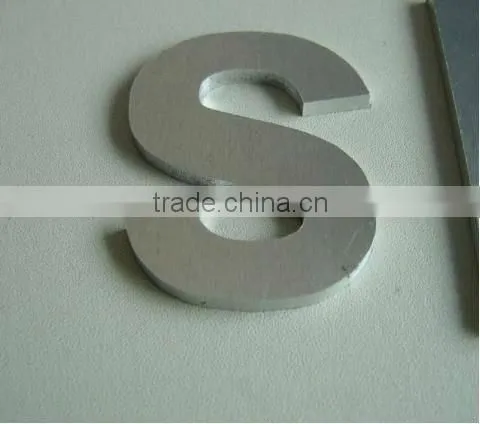

SAMPLE
