Home > Products > Laser Welder > 1200W Multi - function Laser Welding Machine PE-W300D/400D/500D
1200W Multi - function Laser Welding Machine PE-W300D/400D/500D
- 9000 Set / Sets per Month
- Shanghai/Shenzhen Port
- T/T
- Multi-usage co2 laser marking machine engrave non-materials arts and gifts food package product date code marking plastic switch
- Automatic laser welding machine no welding penetration continuous welding widely used in sanitary battery glasses hardware
- Fast and high efficiency fiber laser marking machine used in marking rings bracelets mugs watches sanitary ware IC keyboard etc
- mechanical tools cutting machine for Acrylic/wood CO2 laser cutting machine 1390 laser cutting machine
- wholesale distributors wanted laser wood cutting machine price fabric laser cutting machine laser cutting machine price
- desktop cnc machine | LED channel letters welding machine | robotic LOGO welding machine price
Product Details
Condition: | New | Place of Origin: | Hubei, China | Brand Name: | Perfect Laser |
Model Number: | PE-W300D/400D/500D | Single Pulse Energy: | 90J | Pulse Width: | 0.1~20ms |
Wavelength: | 1.064μm | Focal Spot Diameter: | 0.1-2.0mm | Max. Output Power: | 240W |
Dimensions: | 750*1000mm | Usage: | Welding | Power(W): | 12KW |
Certification: | CE, ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1200W Multi - function Laser Welding Machine PE-W300D/400D/500D
Contact:Nicole Skype:perfectlaser02 Email:sales02 at
Description for 1200W Multi - function Laser Welding Machine PE-W300D/400D/500D

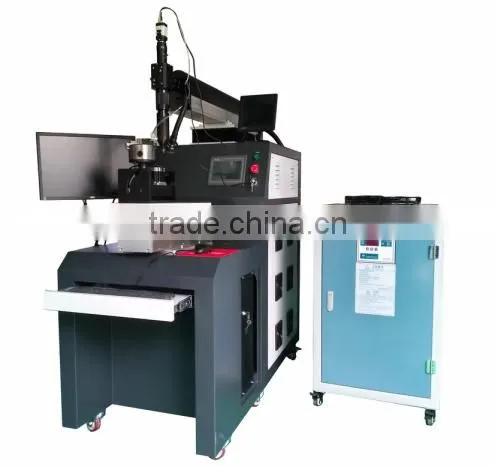

This product is mainly composed of laser, laser power supply, cooling system, light focusing system, control system and two-dimensional table, CNC lifting table, rotating fixture, coaxial monitoring system, blowing protection system and so on. Through the CNC2000 control system, according to the shape of the work piece from the teaching programming function of the welding trajectory programming, automatically generate the table movement trajectory. And can carry out a variety of information processing, laser welding machine to achieve the functional control.
number | project | Tender specifications |
1 | Input voltage | Three-phase four-wire system, 380V ± 5% |
3 | Full mirror | Reflectivity≥99.7%
|
4 | Power supply feedback type | Current feedback |
5 | Condenser chamber | Gold-plated single-chamber design, dual-lamp single rod |
6 | Laser wavelength | 1.064μm
|
7 | Beam divergence angle | ≤8mrad/m |
8 | Peak output power | 500W |
9 | Laser head adjustment | 360 degrees |
10 | Pulse frequency | 1~150Hz |
11 | Pulse Width | 0.1~20ms |
12 | Current regulation | 50-500A |
13 | Beam expander | 3 times
|
14 | Focus spot diameter | 0.2-2mm |
15 | X-axis and Y-axis travel | X*Y=300mm*300mm |
16 | Table size | X*Y=400mm*400mm |
17 | Moving speed range | 0-50mm/s |
18 | Reset accuracy | 0.03mm
|
19 | positioning accuracy | ≤0.025mm |
Description for 1200W Multi - function Laser Welding Machine PE-W300D/400D/500D
widely used in aviation, machinery, electronics, communications, power, chemical, automobile manufacturing, institutions and research institutes and other industries. Such as auto parts welding, lithium-ion battery sealing welding, electronic components such as precision spot welding.
Advantage for 1200W Multi - function Laser Welding Machine PE-W300D/400D/500D
1. The model has further improved the overall performance of the equipment and enhanced the ductility of the equipment, and has a wide range of application and convenient operation, while the LF series welding machine has high conversion efficiency, stable energy and good beam mode. Integration, the whole atmosphere beautiful, compact and reasonable structure.
2. The use of Germany's advanced combination of gold-plated reflective laser cavity technology, while the use of unique beam selection and shaping technology to ensure high output power and excellent beam mode. Dual-pulse xenon lamp excitation, constant current switching power supply, pulse programmable and intelligent system management, and has a misuse and over-temperature water flow automatic protection. Three-axis table system and light guide system by the IPC or CNC control, can achieve three or four-axis movement.
3. Optional enclosure or airtight chamber, manual table lifting mechanism, automatic rotation mechanism and coaxial monitoring system and other institutions.
