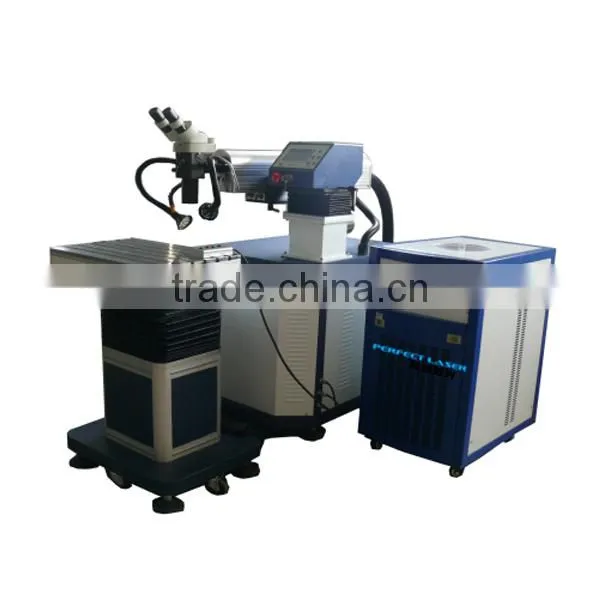

Laser Welding Machine for Mould Industry PE-W200M/PE-W300M/PE-W400M
Contact:Nicole Skype:perfectlaser02 Email:sales02 at
Introduction for Laser Welding Machine for Mould Industry PE-200M/PE-300M/PE-400M

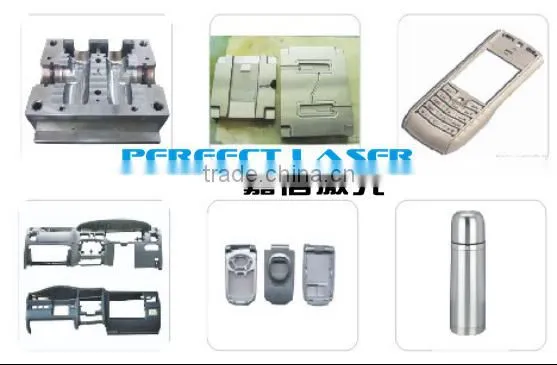

Laser deposition welding system (Laser Mould Welding Machine) , designed specifically for Mould industry, is used in precision mould repair, such as digital products , mobile phones, toys, automobiles, motorcycles and other mould marking industries. Through the mold repair, the original mould can be made full use of and the production cost can be greatly saved and the working efficiency is improved. This technique can be applied to modify the mould design or size, shorten product development cycle.
Features for Laser Welding Machine for Mould Industry PE-200M/PE-300M/PE-400M
The working principle of laser deposition welding system , based on laser high heat energy and focus point of welding technology , effectively handle all small parts of the welding and repair work. It makes up for the traditional argon arc welding technology in the fine repair welding surface and avoid the thermal strain and post-processing these two thresholds, and greatly save the mould production cycle.
Application for Laser Welding Machine for Mould Industry PE-200M/PE-300M/PE-400M
Precision laser mould welding repair machine can weld a wide range materials including: high alloy steel, hot forging high alloy steel, nickel steel, high-grade steel, copper alloy, beryllium copper, high strength and toughness alumium alloy and other metal materials.
Advantage for Laser Welding Machine for Mould Industry PE-200M/PE-300M/PE-400M
Specifically designed for mould industry, introduct German technology, adopt unique stucture design, suitable for all kind of large, medium and small mould repair.
1.Adoptc UK ceramic light-gathering cavity, anti-corrosion, heat-resistance, chamber(8-10 years of life), more than 8 million times life of Xenon lamp;
2. Using the World’s most advanced automatic shading system, It eliminates the stimulation to the eyes in work;
3.Laser head can rotate 360 degrees, overall light path can rotate 360 degrees, electric lift up and down, driving front and back, especially suitable for all kinds of large, medium and small mould repair;
4.Parameter adjustment adopts intelligent remote control, simple and quick operation;
5.Three-dimensional moving workbench can be electric hoist;
6.Light spot size electric regulation;
| Type | PE-W200M | PE-W300M | PE-W400M |
| Three axis table | X=250mm,Y=180mm | ||
| Table capacity | ≤200KG | ≤200KG | ≤200KG |
| Machine battery | 220V±10%/50/60z | 380V±10%/50/60Hz | 380V±10%/50/60Hz |
| Laser type | Nd:YAG pulse xenon lamp | Nd:YAG pulse xenon lamp | Nd:YAG pulse xenon lamp |
| Spot adjusting range | 0.1~3mm | 0.1~3mm | 0.1~3mm |
| Peak wavelength | 1064nm | 1064nm | 1064nm |
| Pulse width | ≤20ms | ≤20ms | ≤20ms |
| Rated output power | 180W | 270W | 360W |
| Maximum laser power | 200W | 300W | 400W |
| Pulse frequency | ≤50Hz | ≤50Hz | ≤50Hz |
| Laser output focal length | 100mm | 100mm | 100mm |
| Laser cooling | Water cooling | Water cooling | Water cooling |
| Monitor | Microscope( rotate 360º) | Microscope( rotate 360º) | Microscope( rotate 360º) |
| Protective gas | 1(argon) | 1 (argon) | 1 (argon) |
| Cold water capacity | 2700W | 3500W | 5000W |
| Wire diamter | 0.1mm~0.6mm | 0.1mm~0.8mm | 0.1mm~1.0mm |
Dimension | Main engine | Main engine | Main engine |
