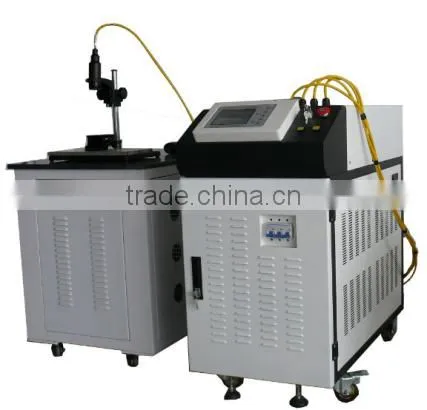

High Precision 6 Optical Paths Fiber Laser Welding Machine PE-W300G
Contact:Nicole Skype:perfectlaser02 Email:sales02 at
Desrciption for High Precision 6 Optical Paths Fiber Laser Welding Machine PE-W300G
PE-W300G laser welding machine is an optical fiber transmission 300W laser welding machine. It has a lot of new ideas in the aspects of equipment appearance, structure and human machine interface which is suitable for operation.
The equipment adopts integration design, with compact structure and aesthetic appearance, with beam mode, energy stability, stable performance, reliable use, fast welding, suitable for welding a wide range, consumables and consumable parts service life long and so on characteristics, taking full account of equipment in the batch production of the various parameters, from the details do key parameters adjustable closed loop data.

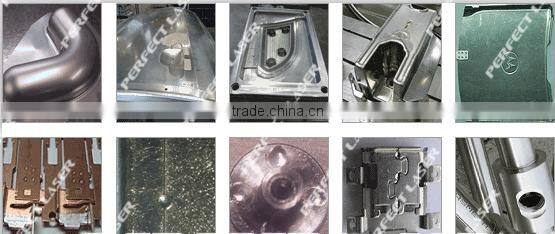

Application for High Precision 6 Optical Paths Fiber Laser Welding Machine PE-W300G
High precision welding of metal parts & electronic components, optical communication parts welding kinescope electronic gun welding, missiles detector welding, cell phone vibration motor welding, engine spark plug welding, detonators engine welding, automobile lights welding, and Xenon street lamps welding, especially for high precision photoelectric parts welding, sensors and electronic items welding.
Features for High Precision 6 Optical Paths Fiber Laser Welding Machine PE-W300G
1.This series of models has high output power, large energy, excellent laser beam mode, reliable performance, fiber transmission, and can do flexible processing to single-position / multi-position several positions at the same time;
2.It adopts advanced Germany combined gold-plated reflector cavity laser technology, and use special beam election mode and shaping technology, which ensure a high output power and excellent laser beam mode;
3.There is double-pulsed Xenon lamp incenting, constant current laser power, programmable pulse and intelligent zed management system, also the automatic protection system for mis-operation and water lack from super temperature;
4.Many optical paths (at most 6) fiber transmission output with light and time sharing, which is easy to match the working with the special fixture, anti-shocking optical platform;
5.The working platform which has strong applicability also can be designed to order according to the customers’ demands. The machine uses semiconductor red light for location (can select CCD coaxial / paraxial surveillance).
| Type | PE-W300G |
| Conduction type | Optical fiber transmission (lamp pumped) |
| Machine power supply | 380V±10%/50Hz |
| Laser type | Nd:YAG pulse xenon lamp |
| spot size | 0.2-3.0mm |
| Laser wavelength | 1064nm |
| pulse width | ≤15ms |
| laser power | 300W |
| Pulse frequency | ≤50Hz |
| Laser output focal length | 150mm |
| Laser cooling | water-cooling |
| Observation system | Standard CCD |
| Fiber length | 5 meters (standard) |
| Power consumption of the whole machine | ≤9KW |
| Equipment size | Main engine 1020*650*1100mm water machine 750*600*920mm |
