Specifications
1.channel letter laser welding machine2.Microscope 360 Rotating
3.Ceramic focusing cavity
4.CE
automatic welding machine Features:

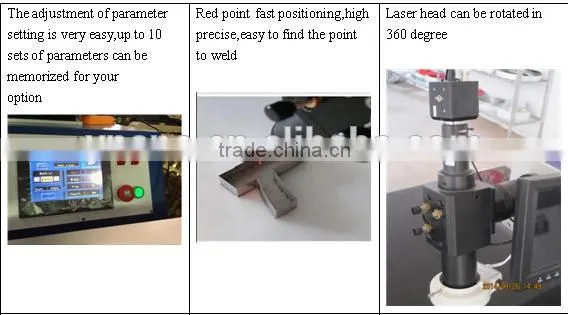

1. Red light spot fast positioning, CCD display, microscope optional
2. High working speed: 6 times faster then traditional TIG or MIG welding
3. Slight distortion and less heating affect.
4. Capable of partial heating process.
5. Able to deal with complex, profiled, or tiny letters.
6. Low noise and no pollution.
7. Ultrafine positioning rod makes corner welding easier without changing position
8. Laser cavity can move in all directions manually in order to weld letters of different size and in different shape
9. Parameter setting is very easy; up to 10 sets of parameters can be memorized for different application
automatic welding machine advantage
1.Use ceramic Spotlighting cavity from England,higher reflectance, stronger power, very long using life.
As the maid model in the market, this machine has mature technology and stable performance, sold
a lot in the last four years.

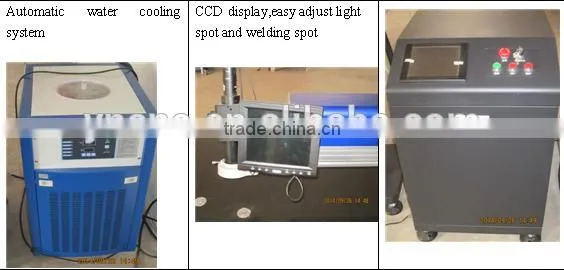

2.We provide 1.5P special big power cooling machine, can keep long time and big power welding
work. The working table is able to up and down electrically, working table has ball-screw and Linear Guideway make the working smart and accurate.
automatic welding machine Parameters| Laser wave length | 1064nm |
| Spotlighting cavithy | English ceramin Spotlighting cavity |
| Max laser power | 200W |
| Width of pulse | 0.1-20MS |
| Laser frequency | 0.1-30Hz |
| Laser point area | 0.3-2MM |
| Power of cooling machine | 1.5p |
| Working area | 100×80cm |
| Total power | 6KW(1way/3way) |
| Electricity |
(single phase)220V±5%/50Hz/30A (three phase)380V±5%/50Hz/20A |
| Size |
Machine: 600×1400×1200MM Cooling machine: 400×650×700MM |
automatic welding machine parts
automatic welding machine Sample
1.One year quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenancefree of charge.
3. Video + Free training
4. We will provide the consumable parts at an agency price when you need replacement.
5. Enjoy after care service at 12 hours on line service, free technical support. A professional after-sales service team to ensure timely efficient service and full support to customers
immediately by E-mail, fax, MSN, Skype ,telephone.
6. The English operation manual in electronic edition is included.
7. Machine has been test before delivery.
