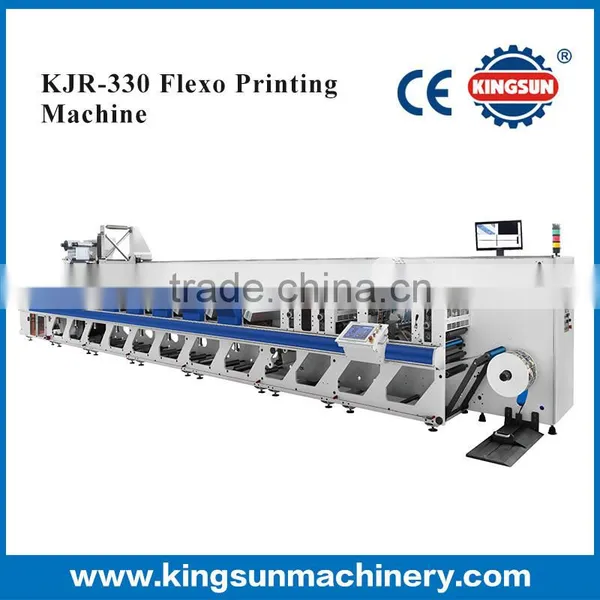

KJR-330 High Speed Sleeve Type Flexo Printing Machine

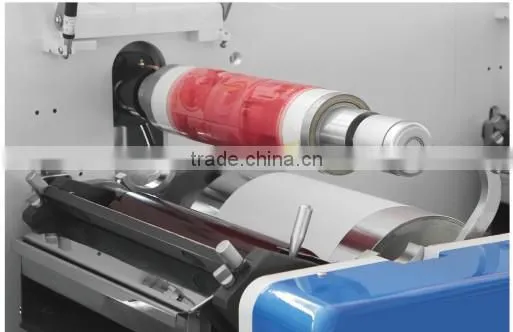

The whole machine adopts the latest servo control system Rexroth-Bosch from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8 colours machine which ensure the accurate registration during high speed running. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design largely improves the prinitng quality and reduce the maintenance. Fast and easy pressure adjustment of printing and ink tranferring: printing roller run by bearer, it’s not necessary to adjust the pressure when change the roller, or at most fine adjust for special job. Anvil roller equips with water chiller, it’s good for film material as well.
Main specifications:
Model |
KJR-330 |
Max printing speed |
180m/min |
Printing color number |
4-12 |
Max. web width |
340mm |
Max. printing width |
330mm |
Max. unwinding diameter |
900mm |
Max. rewinding diameter |
900mm |
Printing repeat length |
Z76-190 (241.3-603.25mm) |
Overall dimensions |
10.83X1.56X1.52M |
Sleeve
UV dryer and anvil roller with water chiller

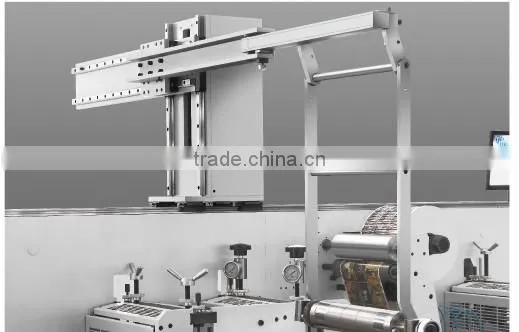

Movable turn bar
Matrix unit

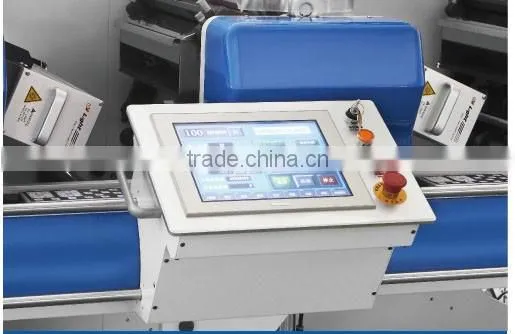

Movable touch screen
Die cutting roller lifter
Hot air dryer (option)
Slitting unit(option)
Movable cold stamping(option)
