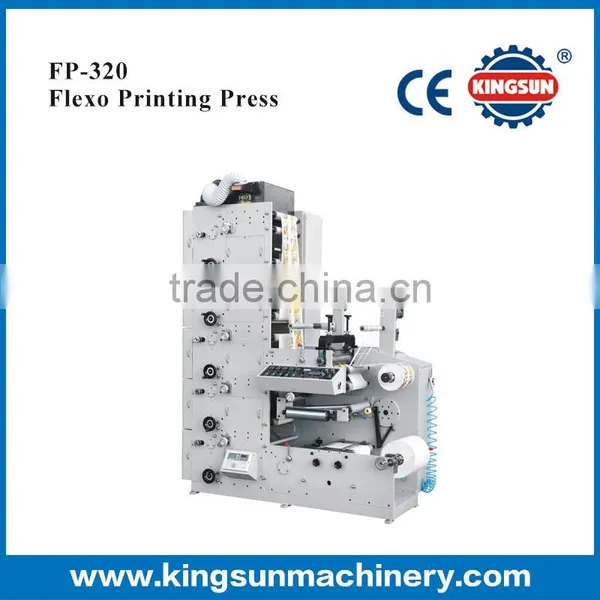

FP-320 Model flexographic Label printing machine
The FP-320 Series flexo printing machine or flexo printing press is suitable for printing roll paper or label paper and film. It can finish printing, UV varnishing, infrared drying, film laminating, rotary die cutting and rewinding (according to customers' requirements). Main machine is frequency inverter control, tension control by magnetic powder with Japan tension controller.
The mechanism structure is compact and easy to operate and save space (overlap type), it is ideal for label printing converting.
Specifications:
1) Printing speed: 5 - 50m/min
2) Print color: 4 colors (5 or 6 color)
3) Flexo plate thickness: 1.7mm
4) Thickness of double adhesive tape: 0.38mm
5) Max. diameter of unwinding: 600mm
6) Max. diameter of rewinding: 550mm
7) Max. printing circumference: 323.85mm(or custom-built)
8) Min. printing circumference: 177.8mm
9) Color register precision: less than 0.15mm
10) Main motor power: 2.2kW
11) Total: 6.8kW(according to different color unit and UV system)
12) Power voltage: 380V,50HZ(or special make)
13) Overall dimensions: 2 x 1.1 x 2.5m
14) Machine weight: about 2300kg
Packing: wooden case
Note: this series flexo press can special made as 450/500/600/850mm size, even bigger size
of independent unwinding etc., welcome to contact us for more information.
The flexo printing machine is strictly tested and good packed for shipment:
Wenzhou Kingsun Machinery Industrial Co.,ltd is China leading professional supplier and manufacturer of printing and packaging machines & materials. We provide a wide range of high quality equipment and service for printing and packaging industries, including post-press equipment such as flatbed automatic die cutter, hot foil stamping machine, folder gluer, paper guillotine, thermal laminator, flute laminator, slitter rewinder, paper sheeter, automatic case maker and label making machine such as flexo printing machine or flexo printing press equipment, label die cutting machine, and flexible packaging equipment such as rotogravure printing machine, dry laminator, plastic bag making equipment, packing machine and other paper converting machinery etc. Our factories have 10-20 years of manufacturing experience, Kingsun company focus on R&D, quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our products have been well accepted by customers from more than 65 countries.
Kingsun Company also boasts its 12 more years of experience, we deliver goods worldwide, our teams are all university graduated and constantly with professional training with energetic and positive attitude
Kingsun Company has 15 more manufacturing factory bases, each factory focus on only one or a few kind of specific printing and packaging machines production, as a result, we have the ability to meet different needs from different buyers, this way can take advantage of our machinery group and each of factory can play its own marketing or manufacturing strengths.
Our team has accumulated huge experience for this industries, we also have established a specialized after-sales service team and R&D team, so that we can create more value for our buyers.
Looking forward to work with you to create a more successful business together!
Our Production Bases:
