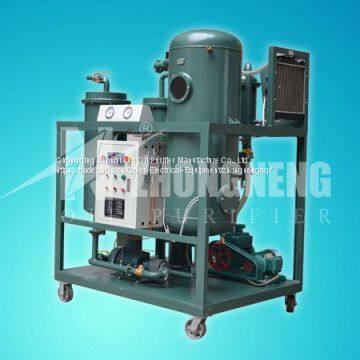

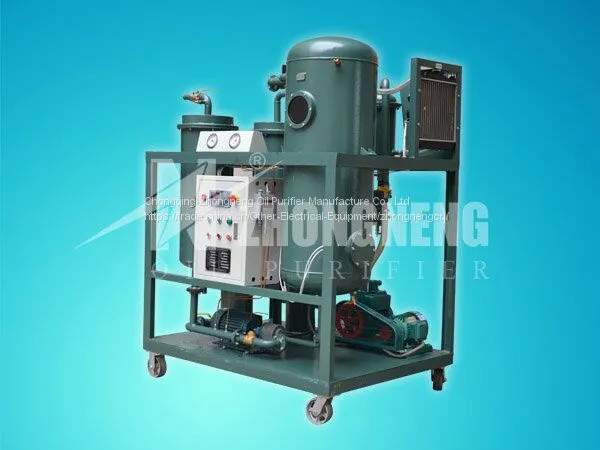

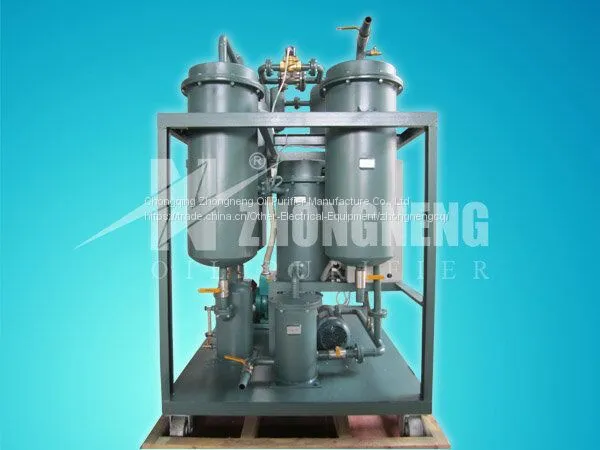

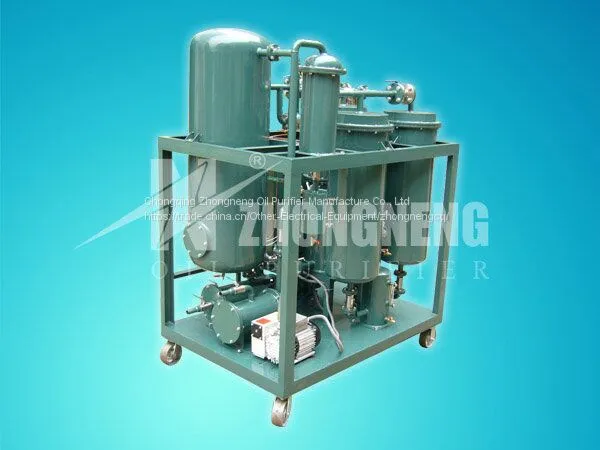

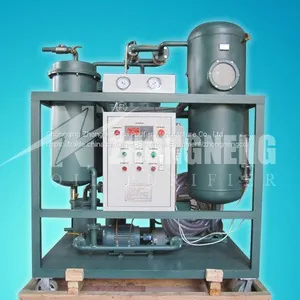

Help CenterZhongneng Vacuum Turbine Oil Purifier Series TY
Related Products
-
Zhongneng Vacuum Lubricating Oil Purifier Series TYAUS$ 10458 - 52364MOQ: 1 Set -
Portable Oil Purifier/ Oiling Machine Series JLUS$ 1045 - 4772MOQ: 1 Set
-
Double-Stage Highly Effective Vacuum Insulating Oil Purifier Series ZYDUS$ 17241 - 74004MOQ: 1 Set
-
Highly Effective Vacuum Transformer Oil Purifier Series ZYUS$ 4199 - 40312MOQ: 1 Set
-
ZYA Zhongneng Automatic Vacuum Insulation Oil PurifierUS$ 9575 - 50249MOQ: 1 Set
Features
1. Breaking emulsification thoroughly with high- molecule polymeric material, the value of breaking emulsification ≤15min (GB/F 7305).
2. Dewatering very effectively with once and for two steps dehydrating method. It can thoroughly clear away the liquid water, free water and 80% dissolved water.
3 With distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the ß3 equal or surpass 200 and make the cleanness lower grade 6(NAS1638).
4 With the trapezoidal, spiral, automatic back flushing system.
5 With the advanced dielectric condensation devices.
6 On-line oil purification can be carried out with turbine or water turbine automatically without any person.
Advantages
This machine breaks emulsification thoroughly, and the oil is very difficult to emulsify again after treatment. Its dehydration volume is large and it can absorb water on line. TY series, which prevent lubrication system from damage, can effectively extend the lifetime of oil and protect turbine and other machines.
Technical Parameter
item |
unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
||
Flow rate |
L/h |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
||
Working vacuum degree |
Mpa |
0.06 ～ 0.095 |
||||||||
Working pressure |
Mpa |
≤0.3 |
||||||||
Running temperature |
℃ |
40 ～ 70（the temperature of turbomachine below 55℃） |
||||||||
Heating power |
KW |
14 |
16 |
18 |
30 |
45 |
55 |
60 |
||
Total power |
KW |
16 |
18 |
20 |
33 |
48 |
61 |
71 |
||
Inlet/outlet caliber |
mm |
φ25 |
φ25 |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
||
Size |
L |
mm |
1280 |
1350 |
1350 |
100 |
1500 |
1500 |
1600 |
|
W |
mm |
750 |
900 |
950 |
950 |
1000 |
1200 |
1350 |
||
H |
mm |
1450 |
1450 |
1500 |
1600 |
1650 |
1800 |
1800 |
||
Weight |
Kg |
320 |
400 |
420 |
450 |
750 |
800 |
900 |
||
Table2 Guarantee Data after Purification
Capability item |
Data |
Moisture |
≤100PPM |
Break emulsification value |
≤15min (GB/F 7305) |
Clean degree |
≤6grade (NAS1638) |
