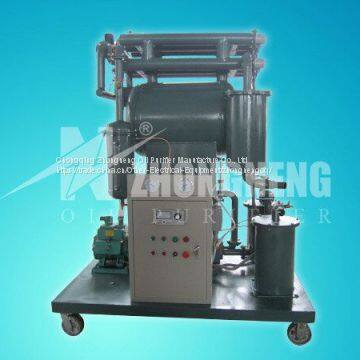

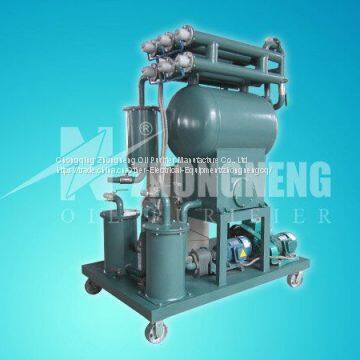

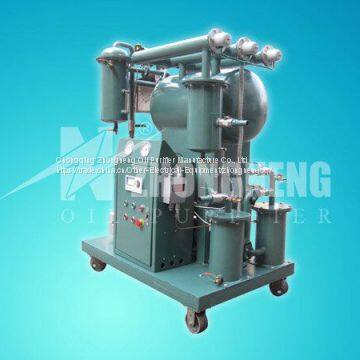

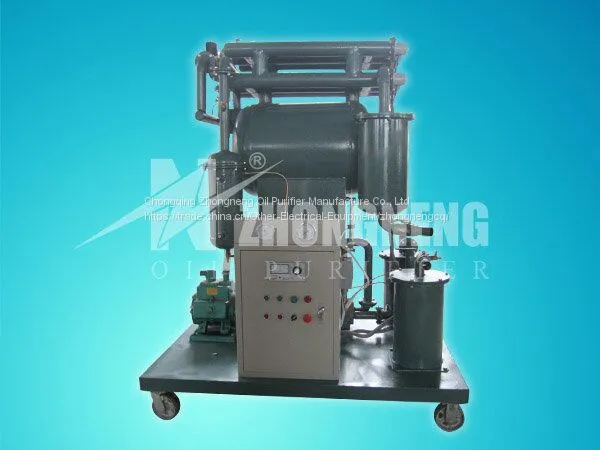

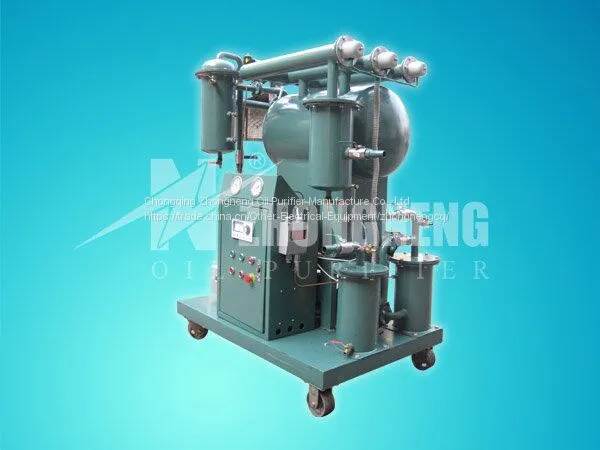

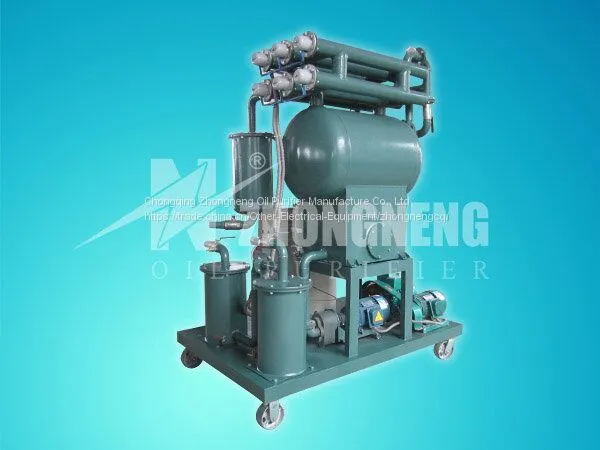

Help CenterHighly Effective Vacuum Transformer Oil Purifier Series ZY
Related Products
-
ZYA Zhongneng Automatic Vacuum Insulation Oil PurifierUS$ 9575 - 50249MOQ: 1 Set -
Zhongneng Vacuum Turbine Oil Purifier Series TYUS$ 9280 - 54359MOQ: 1 Set
-
Zhongneng Vacuum Lubricating Oil Purifier Series TYAUS$ 10458 - 52364MOQ: 1 Set
-
Portable Oil Purifier/ Oiling Machine Series JLUS$ 1045 - 4772MOQ: 1 Set
-
Double-Stage Highly Effective Vacuum Insulating Oil Purifier Series ZYDUS$ 17241 - 74004MOQ: 1 Set
Application：
This purifier is applied to treat various of unqualified or used insulation oils including aging transformer oil, mutual inductor oil, switch oil. Also it can inject the insulating oil into the transformers.
Features:1. This machine is small, hi-efficient conveniently. And it can live operated with electrical, vacuum oiling the power equipment and dry moisture of power equipment.
2. Distinctive removing the impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
3. Bi-infrared liquid Duplex 3D stereo-evaporation technology, dewatering and degassing very effectively.
4. The oil of any grades can be treated on line at the working site
5. This machine can work independently; also it can work with the oil regeneration system.
Advantages:This machine adopts a high effective vacuum and the internationally advanced stereo-evaporation technology, which enable a highly effective removal of water, gas and impurities without switch off of power, shutdown of machine or change of oil which allows transformers running as energized.
Technical Parameter
Parameters |
Unit |
ZY-10 |
ZY-20 |
ZY-30 |
ZY-50 |
ZY-70 |
ZY-150 |
ZY-200 |
ZY-300 |
|
Flow rate |
L/h |
600 |
1200 |
1800 |
3000 |
4200 |
9000 |
12000 |
60000 |
|
Working vacuum |
MPa |
-0.06 ～ -0.095 |
||||||||
Working pressure |
MPa |
0.4 |
0.4 |
≤0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Breakdown voltage |
KV |
≥55 |
≥55 |
≥55 |
≥60 |
≥60 |
≥60 |
≥60 |
≥65 |
|
Moisture |
PPM |
≤5 |
||||||||
Gas content |
% |
≤0.1 |
||||||||
Impurity content |
μ |
≤5 |
||||||||
Temperature range |
℃ |
10 ～ 80 |
||||||||
Power supply |
380V, 50HZ, 3PH (or as per request) |
|||||||||
Working noise |
dB（A） |
61 |
63 |
70 |
70 |
75 |
70 |
70 |
70 |
|
Heating power |
KW |
11 |
13 |
15 |
30 |
48 |
52.5 |
57.5 |
60 |
|
Total power |
KW |
12.5 |
14.5 |
16.5 |
33.5 |
51.5 |
57.5 |
65.5 |
68 |
|
Inlet/outlet caliber |
mm |
φ25 |
φ25 |
φ25 |
φ32 |
φ40 |
φ50 |
φ50 |
φ60 |
|
Weight |
Kg |
150 |
200 |
260 |
300 |
400 |
450 |
550 |
600 |
|
Size |
L |
mm |
1050 |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
W |
mm |
750 |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
H |
mm |
1350 |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
