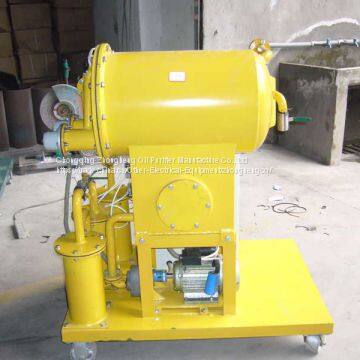

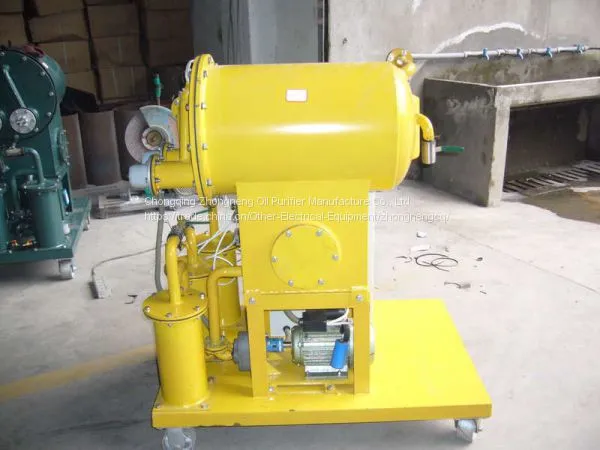

Help CenterZYA Zhongneng Automatic Vacuum Insulation Oil Purifier
Related Products
-
Zhongneng Vacuum Turbine Oil Purifier Series TYUS$ 9280 - 54359MOQ: 1 Set -
Zhongneng Vacuum Lubricating Oil Purifier Series TYAUS$ 10458 - 52364MOQ: 1 Set
-
Portable Oil Purifier/ Oiling Machine Series JLUS$ 1045 - 4772MOQ: 1 Set
-
Double-Stage Highly Effective Vacuum Insulating Oil Purifier Series ZYDUS$ 17241 - 74004MOQ: 1 Set
-
Highly Effective Vacuum Transformer Oil Purifier Series ZYUS$ 4199 - 40312MOQ: 1 Set
Application:
This machine is applied to treat various of unqualified insulation oils including aging transformer oil, mutual inductor oil, switch oil. Also it can inject the insulating oil into the transformers. Automatic testing voltage-withstand system and printing out the result
Features:
1. Automatic testing voltage-withstand system and printing out the result
2. This machine is small, hi-efficient conveniently. And it can live operated with electrical, vacuum oiling the power equipment and dry moisture of power equipment.
3. Distinctive removing the impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
4. Bi-infrared liquid Duplex 3D stereo-evaporation technology, dewatering and degassing very effectively.
5. The oil of any grades can be treated on line at the working site
Advantages:
This type of machine not only can degas, dewater, removing the impurities of insulating oil quickly and effectively. It improves the value of voltage value, and make sure electrical equipment work safely, but also can auto-control central data processing, and processes kinds of variable feedback data immediately, then sets instructions
Technical DataParameters |
Unit |
ZYA-10 |
ZYA-20 |
ZYA-30 |
ZYA-50 |
ZYA-100 |
ZYA-150 |
ZYA-200 |
ZYA-300 |
|
Flow rate |
L/h |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working vacuum |
MPa |
-0.06 ～ -0.095 |
||||||||
Working pressure |
MPa |
0.4 |
0.4 |
≤0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Breakdown voltage |
KV |
≥55 |
≥55 |
≥55 |
≥60 |
≥60 |
≥60 |
≥60 |
≥65 |
|
Moisture |
PPM |
≤5 |
||||||||
Gas content |
% |
≤0.1 |
||||||||
Impurity content |
μ |
≤5 |
||||||||
Temperature range |
℃ |
10 ～ 80 |
||||||||
Power supply |
380V, 50HZ, 3PH (or as per request) |
|||||||||
Working noise |
dB（A） |
61 |
63 |
70 |
70 |
75 |
70 |
70 |
70 |
|
Heating power |
KW |
11 |
13 |
15 |
30 |
48 |
52.5 |
57.5 |
60 |
|
Total power |
KW |
12.5 |
14.5 |
16.5 |
33.5 |
51.5 |
57.5 |
65.5 |
68 |
|
Inlet/outlet caliber |
mm |
φ25 |
φ25 |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
|
Weight |
Kg |
150 |
200 |
260 |
300 |
400 |
450 |
550 |
600 |
|
Size |
L |
mm |
1050 |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
W |
mm |
750 |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
H |
mm |
1350 |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
