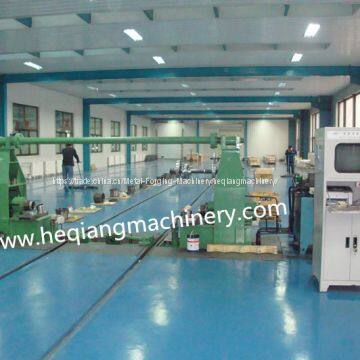

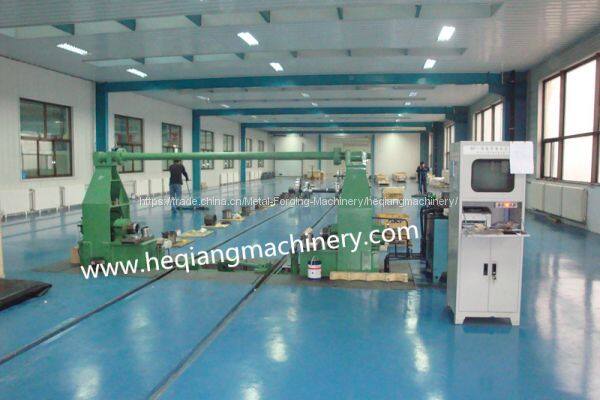

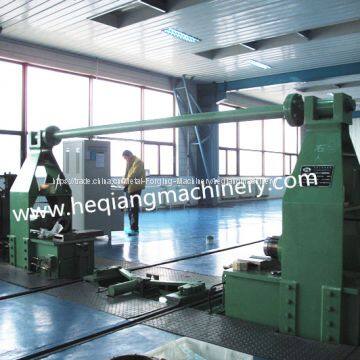

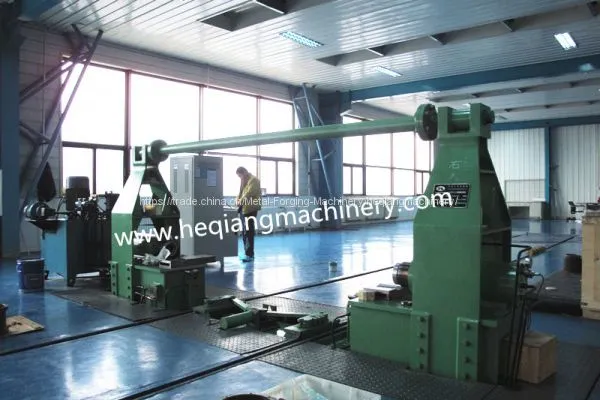

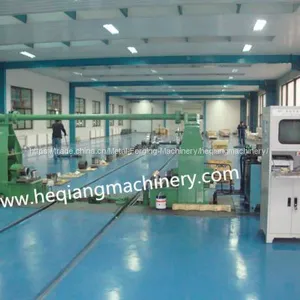

Fixed Bearing mount Press, Bearing Mounting Machine, Wheel shop equipment
1. Application scope:
This bearing mounting machine is applicable for wheelset rolling bearings' mounting of different types of domestic/foreign EMU, urban rail transit (Metro,Light rail), coaches with 2~4 brake discs, normal wagons, all types of locomotive and EU trains.
2. Main features:
1) Wide application scope;
2) Overall frame structure, dual-end cylinder work, special anti-upsetting centres and intelligent lifting platform, stable cylinder pressure and high-accurant mounting curve;
3) System software has multi function, including wheelset calibration and automatic record of wheelset mounting pressure-displacement curve, intelligent judge, print, save and query;
4) Operation system is with copyrights, easy to learn and operate.
5) Unique hadraulic servo system, achieving the adjustable mounting speed, ensuring the stable and reliable pressure during pressing;
6) Center hole positioning, without turning the axle, shortening work time and improving work efficiency.
3. Technical Parameters:
| Maximum pressing force | 600kN, 750kN, 1000kN |
| Cylinder Qty | 2pcs |
| Hydraulic system pressure | 25MPa |
| Motor power | 15kW |
| Applicable wheel diameter | Φ740 ~ 1250mm |
| Pressure test equivalent | 0.1kN |
| Displacement test equialent | 0.1mm |
| Working cycle | 4minutes/axle |
| Maximum support wheelset weight | 6500Kgs |
4. Application example
- Harbin High-power Locomotive Overhaul Base;
- Tianjin High-power Locomotive Overhaul Base.
COMPANY PROFILE:

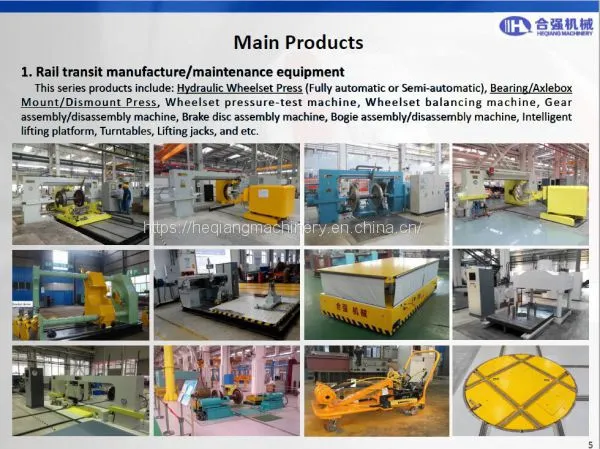

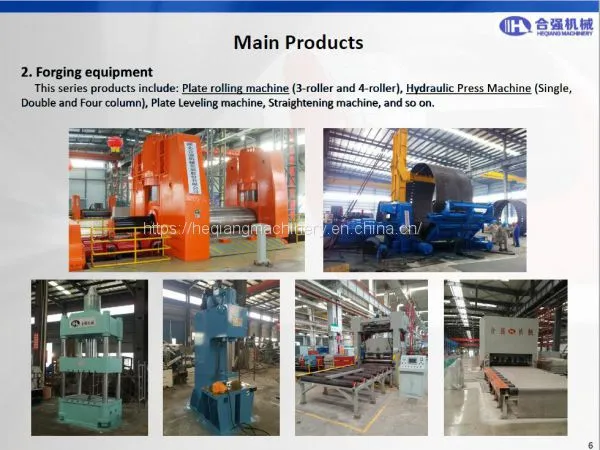

Hubei Heqiang Machinery Development Limited by Share Ltd. is located in Ezhou of Hubei province. Since its establishment in December of 2000, the company is mainly engaging in the development, manufacture and sales of Rail transit manufacture/maintenance equipment and forging equipment, and providing supporting service for related equipment. After more than 10 years' rapid development, Heqiang Machinery has already grown into the leading manufacturer of rail transit equipment and forging equipment in the market.
The company covers an area of 40,000 square meters, with more than 120 employees, including 40 professional technical personnel and medium/senior engineers. It has 2 subsidiary companies: Beijing Heqiang Delian Technology Co.,Ltd, Responsible for sales and services at north of China; Nanjing Hengqin Environmental Technology Co.,Ltd. in environmental equipment. The company now has more than 100sets equipment on metal processing, welding and testing, and has initially formed an unique device configuration and quality control system.
We have already established good business relationship with many customers, such as CRRC and China Railway Administration etc., also our machines are exported to foreign users, such as Kenya, Myanmar, Vietnam, Indonesia, Malaysia, Saudi Arabia, Iran, Thailand and etc. Till now, we have supplied more than 350sets of rail transit equipment and 600sets of forging equipment.
