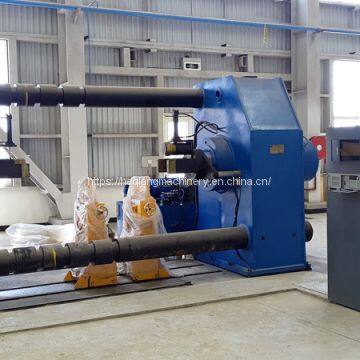

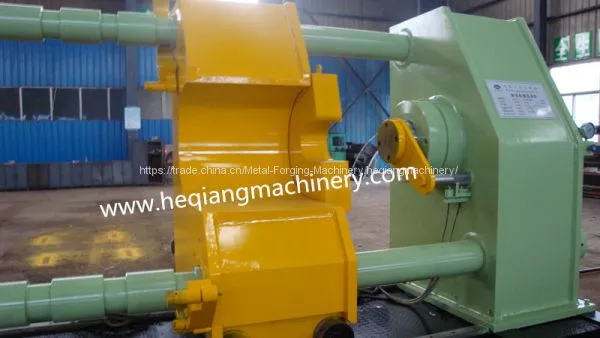

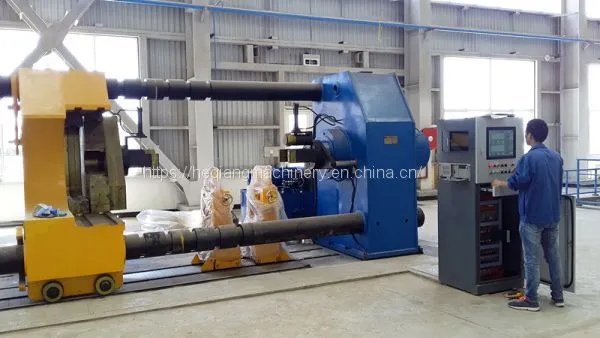

3150kN HORIZONTAL WHEEL PRESS MACHINE, SINGLE CYLINDER HYDRAULIC WHEEL PRESS, Railway shop equipment
1. Product Overview:
Heqiang Machinery hydraulic wheel presses are used for mounting / dismounting and back pressure testing wheel-set components such as wheels, brake discs, gear, gearbox, etc. On to / off of axles for all railway rolling stocks. They are available with the following features:
i) Pressing force of 2,000kN up to 5,000kN;
ii) Single or double end cylinders;
iii) Perfect centering of the wheelset during the mounting and dismounting process;

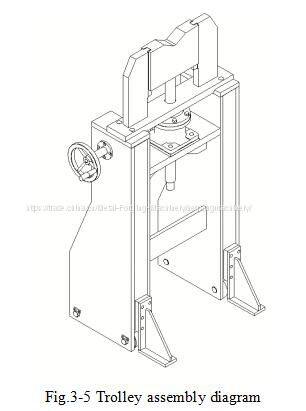

v) Loading and unloading operations by means of a manually operated or fully automatic trolley;
vi) Automatic component positioning by means of a measuring device mechanically or laser operated;
vii) Mounting and dismounting of six components (two wheels and four brake discs) with a single positioning on the wheel press;
viii) Standard roll-in or pass-through design;
ix) Automatic recording of mounting curve, radial and axial run-out and back pressure test of each mounted component.
2. Applicaition scope:
This machine is applicable for wheel factory, vehicle factory/depot and locomotive depot to mount or dismount the brake disc, axle and wheel in the maintenance process of disc brake wheelset. It satisfies the requirements of wheelset and brake disc after trains speed-up. It has features of safety, reliability and high efficiency.
It's a national patent product with patent No.ZL02290401.8
3. Technical parameters of HQY-92:
| Model No. | Nominal pressure (KN) | Max Stroke (mm) | Max of wheel / Axle diameter (mm) | Max embedded length (mm) | Feeding speed (mm/s) | Main motor power (Kw) | Overall dimension L x W x H (mm) |
| HQY92-250 | 2500 | 450 | 1300/300 | 2200 | 7.5 | 6850 x 3010 x 2440 | |
| HQY92-315S | 3150 | 700 | 1300/350 | 2200 | 18.5 | 6900 x 3010 x 2440 | |
| HQY92-315L | 3150 | 700 | 1300/350 | 3500 | 18.5 | 8205 x 3010 x 2440 | |
| HQY92-500S | 5000 | 700 | 1850/350 | 3500 | 18.5 | 8225 x 3010 x 3285 | |
| HQY92-500L | 5000 | 700 | 1850/400 | 5000 | 18.5 | 9755 x 3010 x 3285 | |
| HQY92-630 | 6300 | 700 | 1700/880 | 3300 | 18.5 | 8860 x 7600 x 4965 | |
| HQY92-800 | 8000 | 800 | 2200/660 | 4500 | 22 | 10005 x 3310 x 3310 | |
| HQY92-1000 | 10000 | 1500 | 5000/800 | 7500 | 22 | 11930 x 7335 x 3600 |
4. Application:
Till now, we have cooperated with foreign clients/users from Africa, India, Iran, Saudi Arabia, Indonesia, Vietnam and MYanmar etc. on this Wheel Press.
COMPANY PROFILE:
Hubei Heqiang Machinery Development Limited by Share Ltd. is located in Ezhou of Hubei province. Since its establishment in December of 2000, the company is mainly engaging in the development, manufacture and sales of Rail transit manufacture/maintenance equipment and forging equipment, and providing supporting service for related equipment. After more than 10 years' rapid development, Heqiang Machinery has already grown into the leading manufacturer of rail transit equipment and forging equipment in the market.
The company covers an area of 40,000 square meters, with more than 120 employees, including 40 professional technical personnel and medium/senior engineers. It has 2 subsidiary companies: Beijing Heqiang Delian Technology Co.,Ltd, Responsible for sales and services at north of China; Nanjing Hengqin Environmental Technology Co.,Ltd. in environmental equipment. The company now has more than 100sets equipment on metal processing, welding and testing, and has initially formed an unique device configuration and quality control system.
We have already established good business relationship with many customers, such as CRRC and China Railway Administration etc., also our machines are exported to foreign users, such as Kenya, Myanmar, Vietnam, Indonesia, Malaysia, Saudi Arabia, Iran, Thailand and etc. Till now, we have supplied more than 350sets of rail transit equipment and 600sets of forging equipment.
