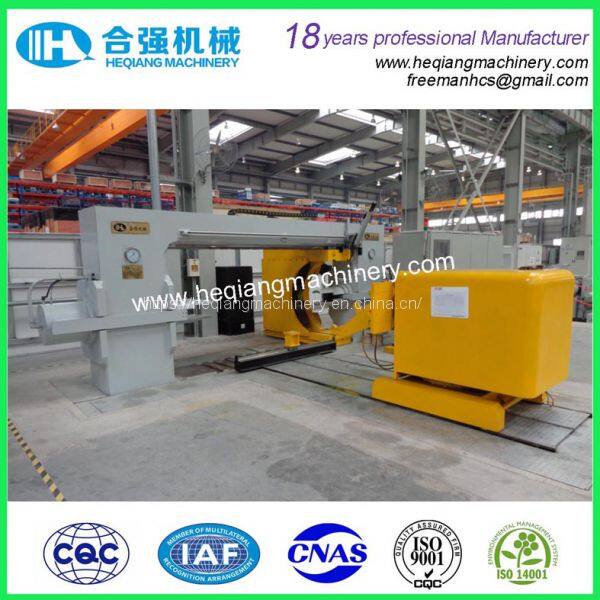

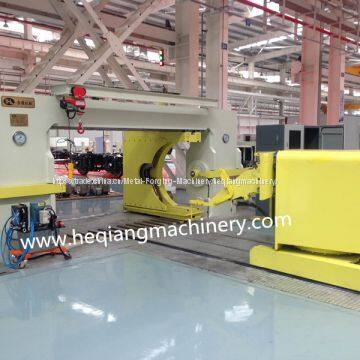

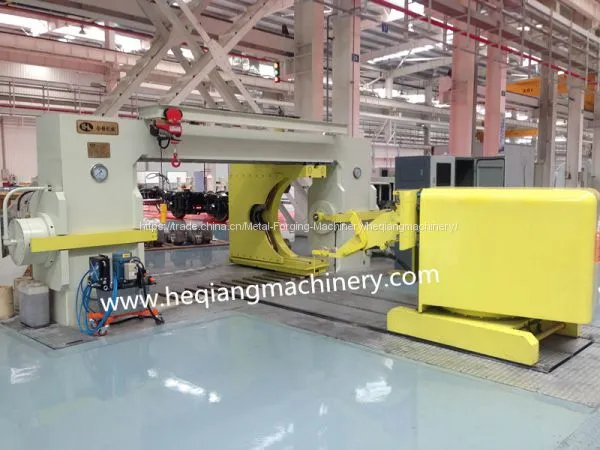

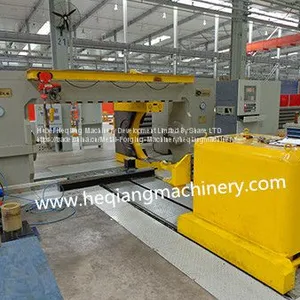

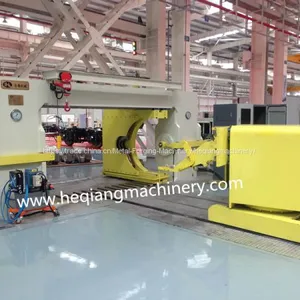

HQ03K HYDRAULIC WHEEL DISMOUNT PRESS, AUTOMATIC WHEELSET PRESS WITH DUAL-END CYLINDERS, RAILWAY SHOP EQUIPMENT
1.Brief Introduction:
Heqiang Machinery Hydraulic Wheel Presses are used for mounting / dismounting and back pressure testing wheel-set components such as wheels, brake discs, gear, gearbox, etc. On to / off of axles for all railway rolling stocks. They are available with the following features:
i) Pressing force of 2,000kN up to 5,000kN;
ii) Single or double end cylinders;
ii) Perfect centering of the wheelset during the mounting and dismounting process;
iv) Pre-fitting stand;
v) Loading and unloading operation by means of a manualy operated or fully automatic carriage;
vi) Automatic component psitioning by means of a measuring device mechanically;
vii) Mounting and dismounting of six components (two wheels and four brake discs) with a single positioning on the wheel press;
viii) Standard roll-in or pass-through design;
ix) Automatic recording of mounting curve, radial and axial runout and back pressure test of each mounted component.
2.Techincal parameters:
| Working pressure | 2000KN ~ 5000KN |
| RAM Qty | 2pcs |
| RAM stroke | 0~600mm, 0~700mm, 0~900mm |
| Fast forward speed | 0~25mm/s |
| Mounting speed | 0~5mm/s |
| Return speed | 0~45mm/s |
| Centre support weight | ≤ 10000kgs |
| Trolley QTY | 2pcs |
| Trolley supporting weight | ≤ 8000kgs |
| System pressure | 0~31.5Mpa |
| Main power supply | 380V/50Hz, AC 3 phase |
| Inner distance control accuracy | < 0.5mm |
| Wheel position difference control accuracy | < 0.1mm |
| RAM positioning accuracy | < 0.04mm |
| Error of Measuring accuracy | ≤ 0.01mm |
| Concentricity of main cylinders's centerline | ≤ 0.08mm |
| Max wheelset weight | 8000kgs |
| Axle length | 1700~2700mm |
| Wheel diameter | Φ740 ~ 1250mm |
| Wheel seat diameter | Φ150 ~ 270mm |
| Wheel hub diameter | Φ180 ~ 400mm |
(Above parameters are indicative and can be modified as per customer's actual requirements.)
3.Performance features:
- Gantry frame structure, Dual-end cylinder work, special anti-upsetting centre and movable resistant column device, equipped with wheelset support trolley, can fulfill support for different types of wheelset.
- Button operation, easy to learn, achieving the operation convenience and visualization.
- It can achieve pressing without turning the axle, shortening working time and improving process efficiency.
- this Wheelset press Can configure back-pressure test function as per customer's requirement.
COMPANY PROFILE:
Hubei Heqiang Machinery Development Limited by Share Ltd. is located in Ezhou of Hubei province. Since its establishment in December of 2000, the company is mainly engaging in the development, manufacture and sales of Rail transit manufacture/maintenance equipment and forging equipment, and providing supporting service for related equipment. After more than 10 years' rapid development, Heqiang Machinery has already grown into the leading manufacturer of rail transit equipment and forging equipment in the market.
The company covers an area of 40,000 square meters, with more than 120 employees, including 40 professional technical personnel and medium/senior engineers. It has 2 subsidiary companies: Beijing Heqiang Delian Technology Co.,Ltd, Responsible for sales and services at north of China; Nanjing Hengqin Environmental Technology Co.,Ltd. in environmental equipment. The company now has more than 100sets equipment on metal processing, welding and testing, and has initially formed an unique device configuration and quality control system.
We have already established good business relationship with many customers, such as CRRC and China Railway Administration etc., also our machines are exported to foreign users, such as Kenya, Myanmar, Vietnam, Indonesia, Malaysia, Saudi Arabia, Iran, Thailand and etc. Till now, we have supplied more than 350sets of rail transit equipment and 600sets of forging equipment.
